XC971 | LQ120

The new maintenance-free all-in-one liquid cooling systems from Xilence can convince with an outstanding price-performance ratio and easy handling. The installation with the quick-mount-system really easy and safe and due to the included multi-socket-mountings it can be applied on every socket from AMD or INTEL. The elegant sleeved and soft tubes follow easily the planned way of mounting  – no matter if the radiator is placed in the back, top, front or bottom of the case. The huge full-copper heat-spreader below the LED lit pump head and the powerful radiators, together with the hydrobearing PWM fans guarantee a silent running and a high performance. Available as a 120mm or 240mm version with a white LED lit pump head and 1 or 2 REDWING PWM fans respectively or as a 240mm RGD LED version with RGB LEDs on the pump head and 2 transparent RGB LED PWM Fans.

Article features

  • Multi Socket Mountings for AMD and INTEL
  • Quick Mount System
  • Flexible tubes for versatile mounting
  • Big full copper heat spreader and high performance radiator

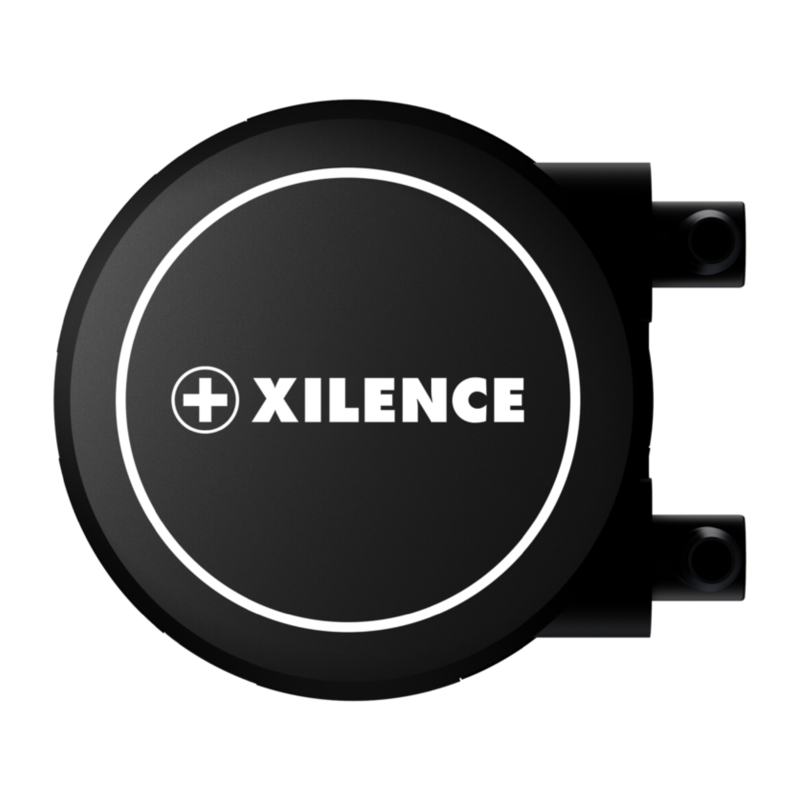

  • LED lit pump head with white LED

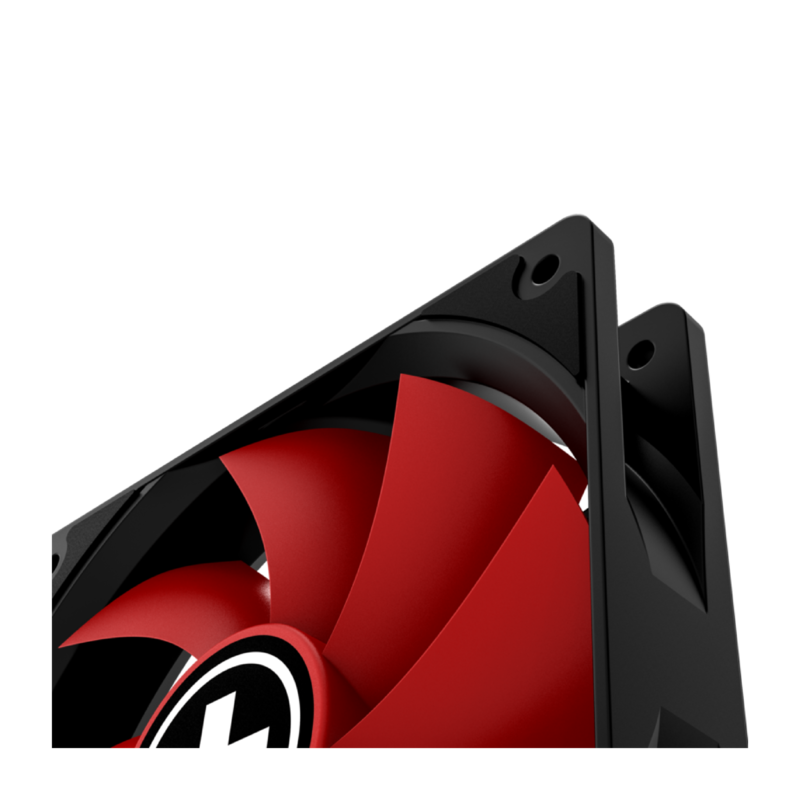

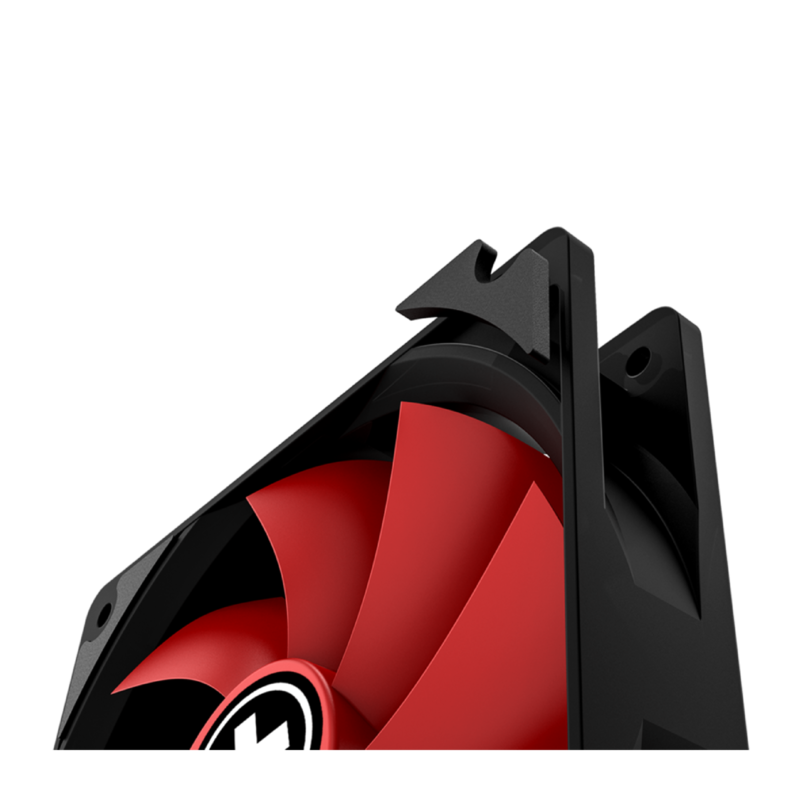

  • XILENCE PWM Fan REDWING

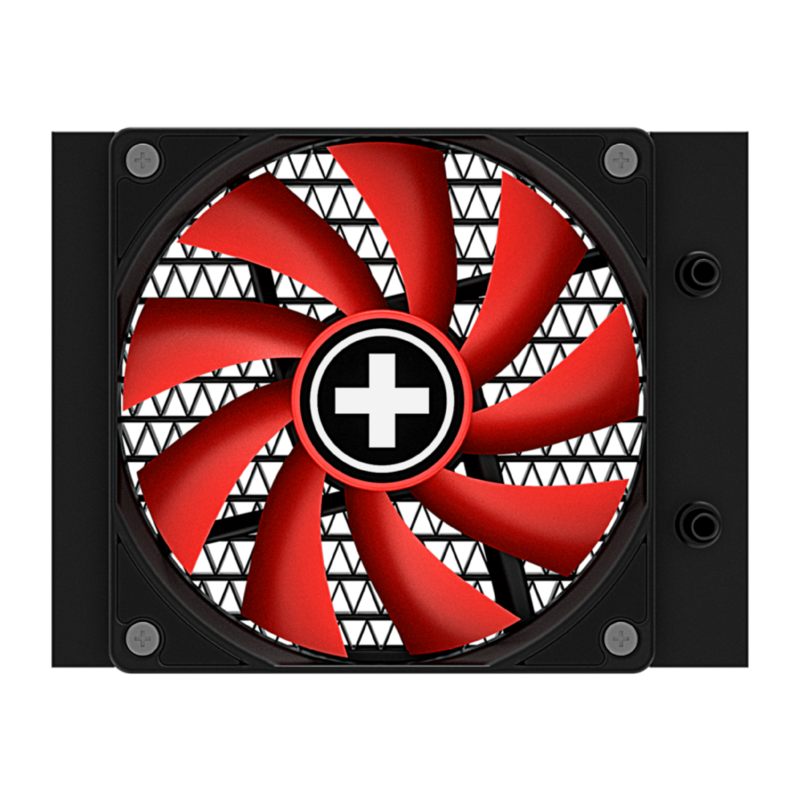

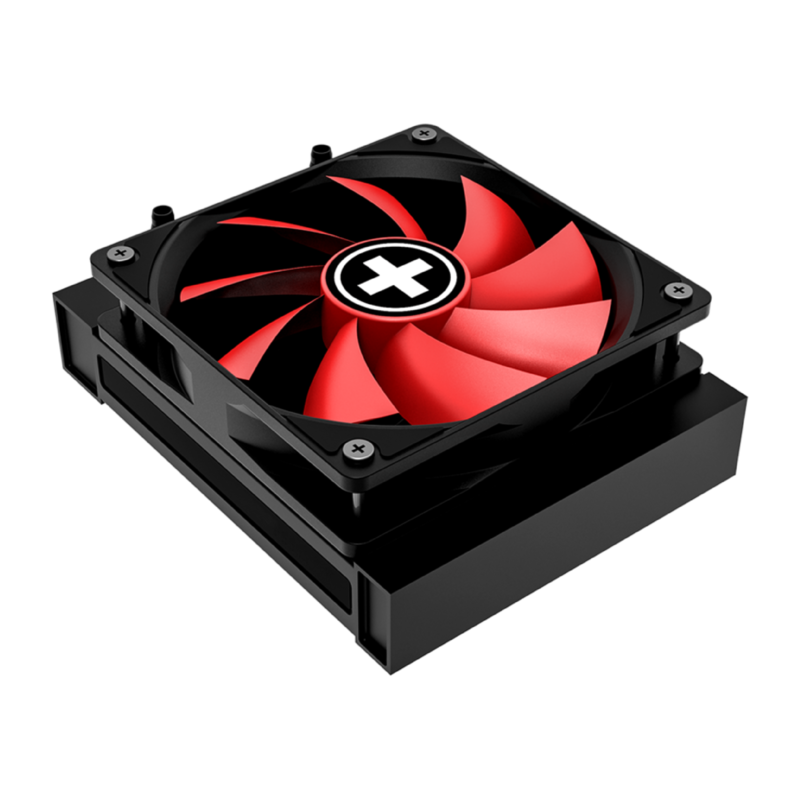

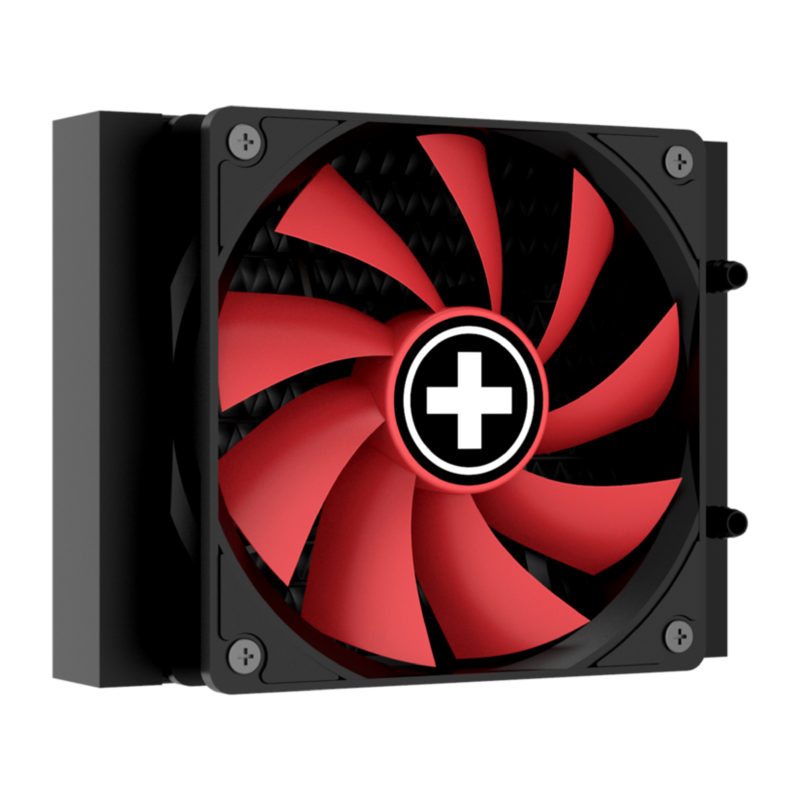

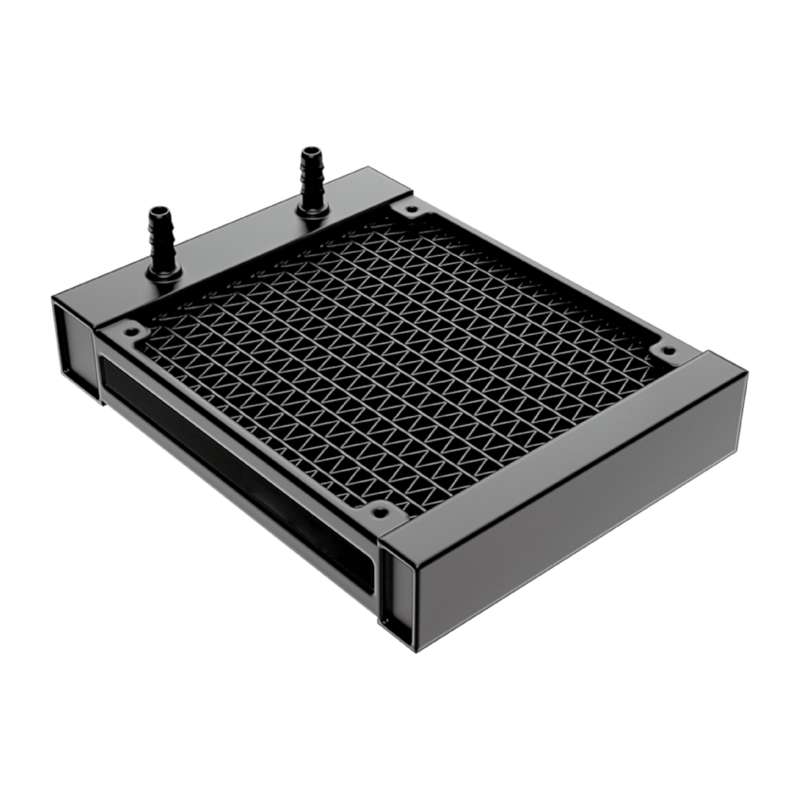

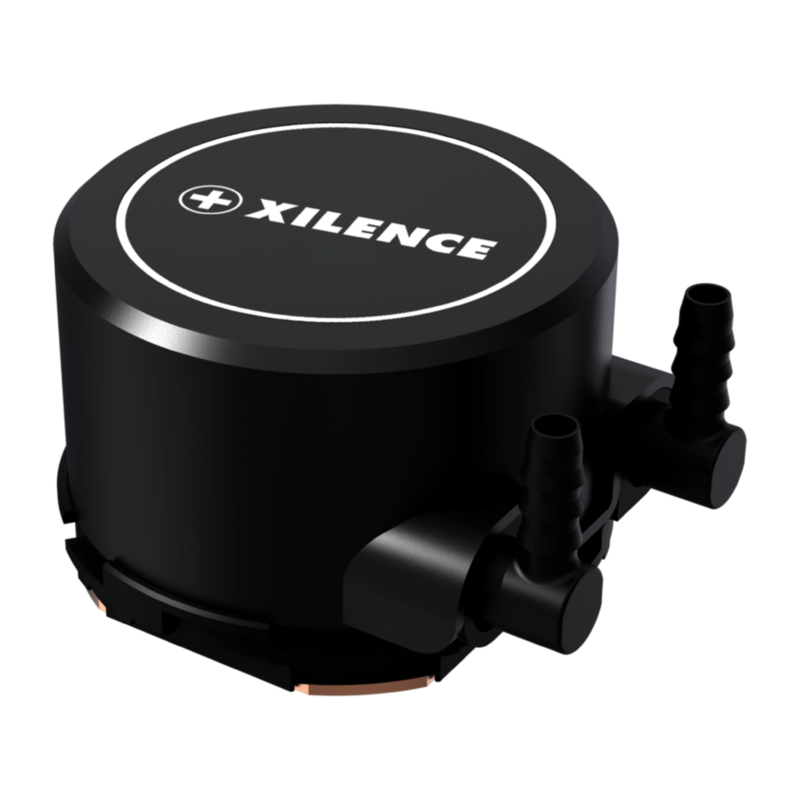

LED lit pump head with white LED                    High performance radiatorwith XILENCE PWM Fan

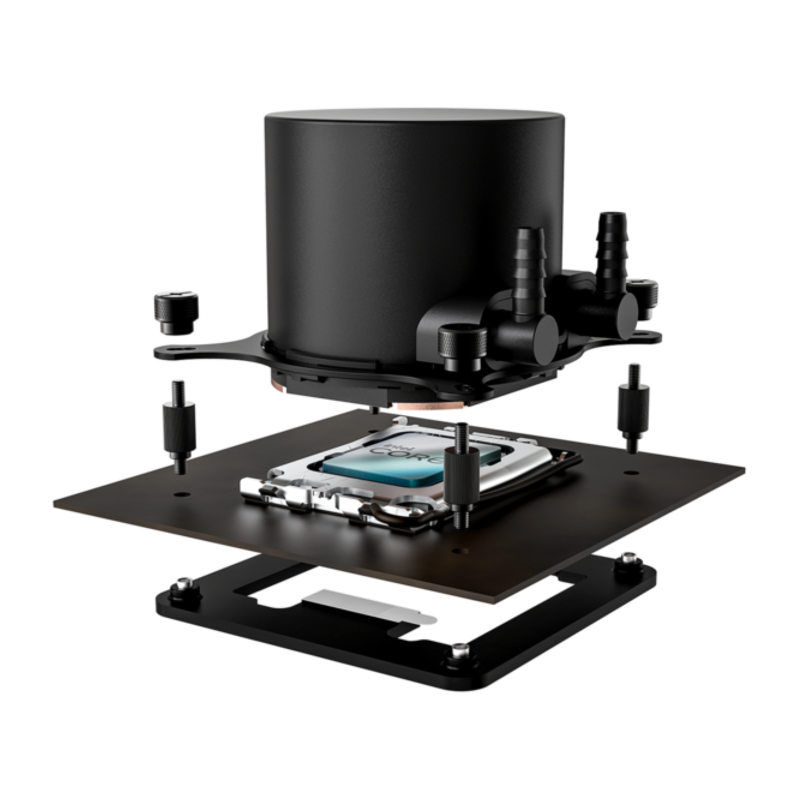

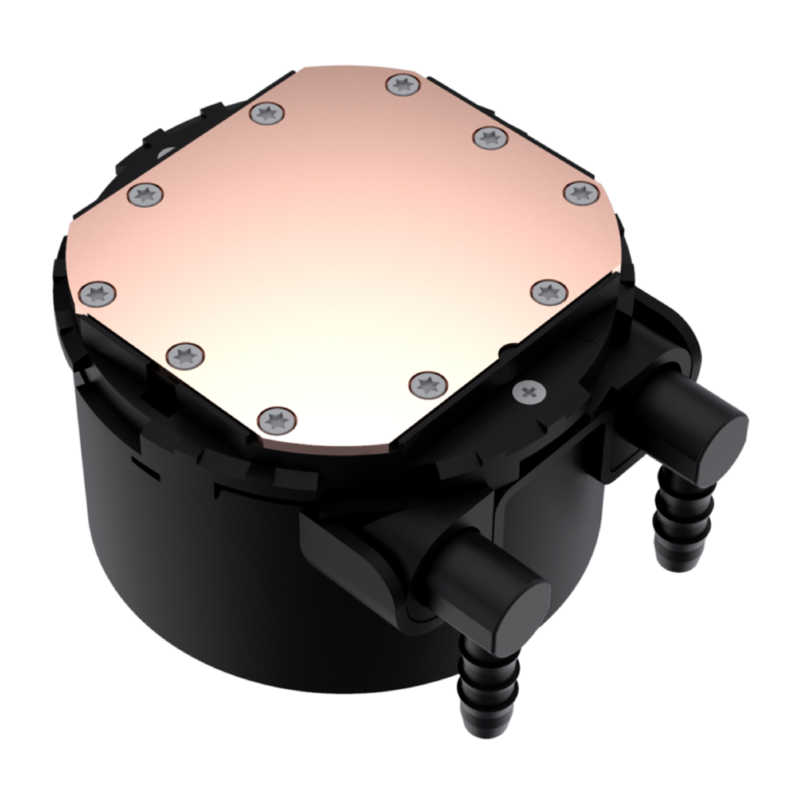

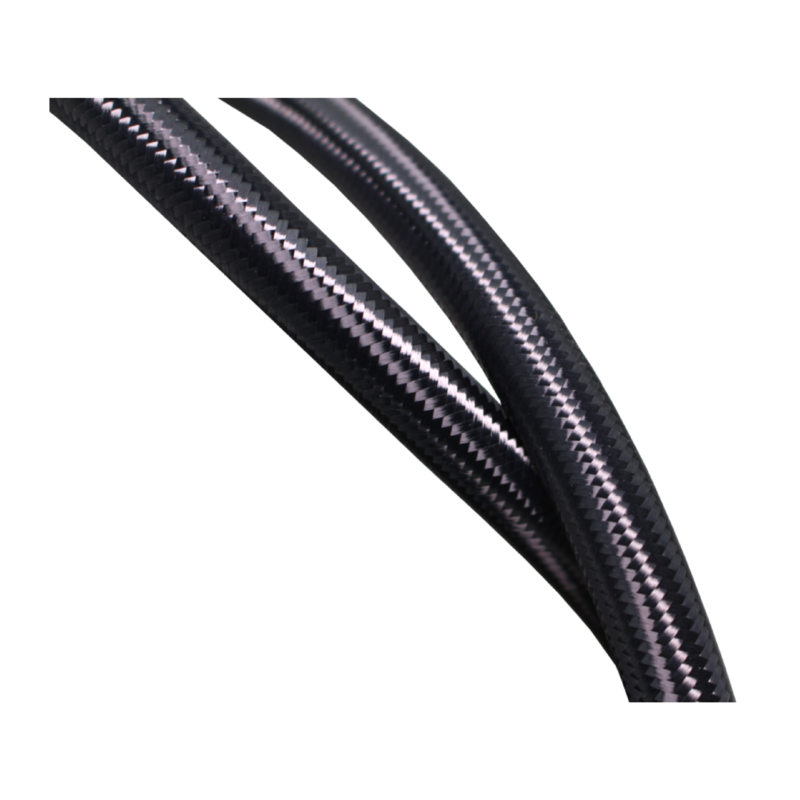

Quick Mount System                          Flexible tubes for versatile mounting            Big full copper heat spreader



Technical data

General data

Model Performance A+ | LQ120
Overall dimensions (L x W x H) -
Total weight (kg) 1.21
TDP (W) 200
Socket compatibility Intel: 2066 / 2011 / 1700 / 1151 / 1150 / 1155 / 1156 / 1200; AMD: AM4 / AM5
Overall noise level (db(A)) 18.0 - 32.5
Fan model, qty 120mm Redwing, 1
Bearing technology ceramic bearing
Tube length (mm) 330
Color Black

SPEC

General Data
Total Weight
1.21Kg
CPU max. Watt
200W
Socket Compatibility
  • Intel : LGA 2066 / 2011 / 1700 / 1151 / 1150 / 1155 / 1156 / 1200
  • AMD : AM5 / AM4
Overall noise level
18.0 – 32.5dB(A)
Fan model, qty
120mm Redwing × 1
Bearing technology
Ceramic bearing
Tube Length
330mm
Radiator Specifications
Radiator Dimensions
154 × 120 × 27mm
Waterblock Dimensions
72 × 72 × 47.3mm
Radiator Material
Aluminum
Cold Plate Material
Copper
Connector
4 Pin
Pump Specifications
Pump Speed
2100 ± 10% RPM
Noise Level
25dB(A)
Current Input
0.36A
Bearing Type
Ceramic Bearing
Max. Static Preassure
2.09mm H2O
Fan Specifications
Fan Dimensions
120 × 120 × 25mm
Speed
700 – 1600 ± 10% RPM
Bearing Type
Hydraulic bearing
Air Flow
70 CFM
Fan Control
PWM
Noise Level
18.0 – 32.2dB(A)
Current Input
0.15A
Thermal Paste
included
