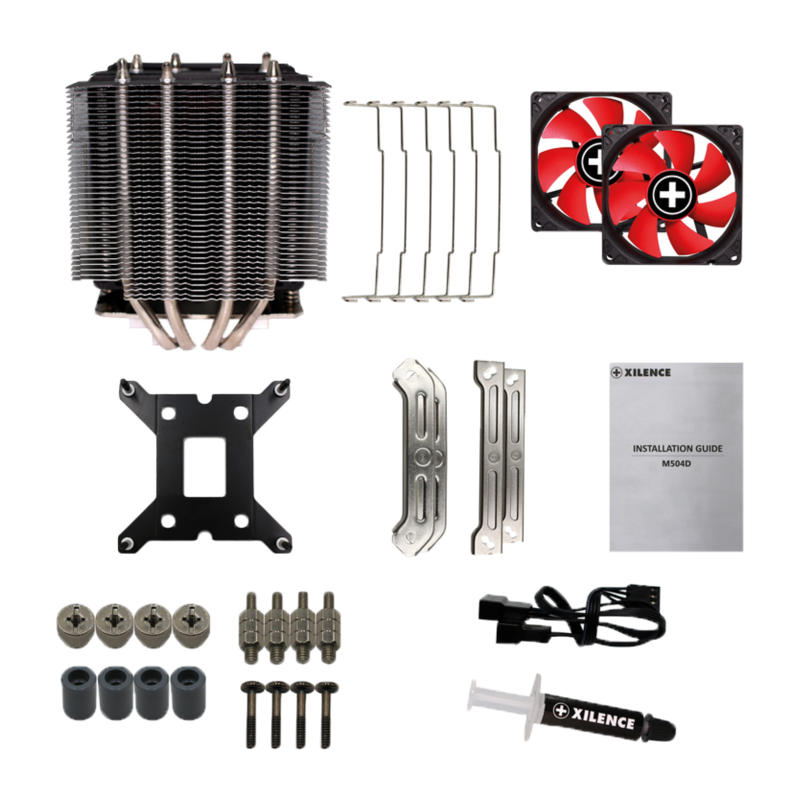

The compact twin tower cooler M504D is the new multi socket solution of the Performance C series. Its 4 extremely efficient heatpipes conduct heat up to 180W to the innumerable cooling fins. Thus, it is predestined for powerful multi-core processors. Due to the direct contact of the heatpipes, the heat transfer between CPU and cooler is highly efficient and very even. With its multi socket, the cooler can be used for all current Intel and AMD sockets. Included in the delivery are – besides the double heat sink and the two 92mm PWM fans – mounting brackets for the sockets LGA1150/1155/1156/1151/2011/2066/1200/1700/1851 and AMD: AM4 / AM5 an illustrated manual, as well as a tube of thermal past Due to its compact design and high efficiency, this model is appropriate especially for small cases. For possible limitations resulting from overall size and installation, please check the technical data sheet:

Technical Drawing

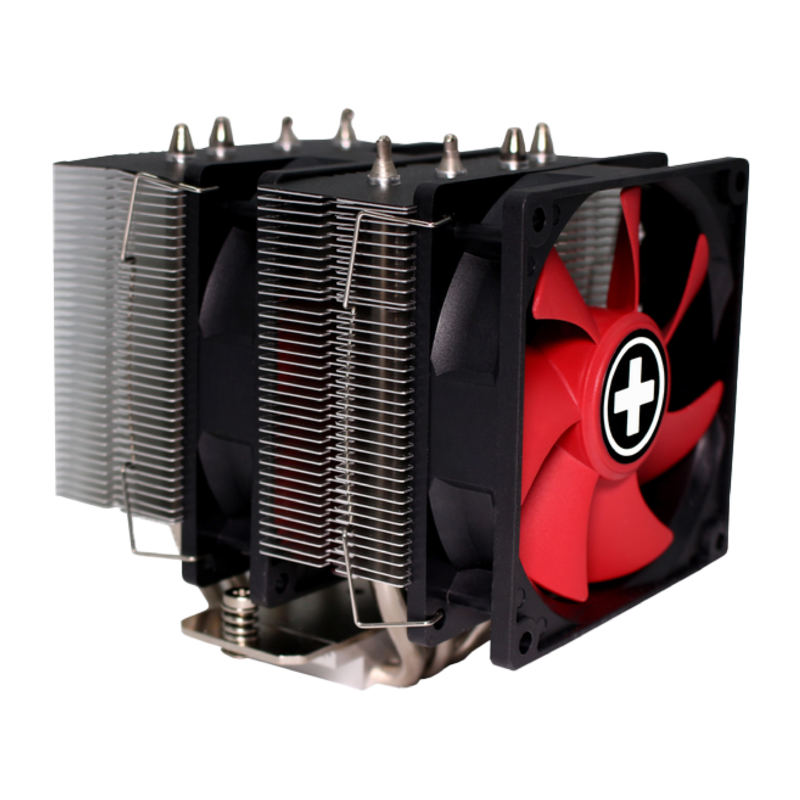

• Two heat sinks with fin design ensure the efficient cooling of the CPU and all surrounding components
• Two 92mm PWM fans, liquid bearing

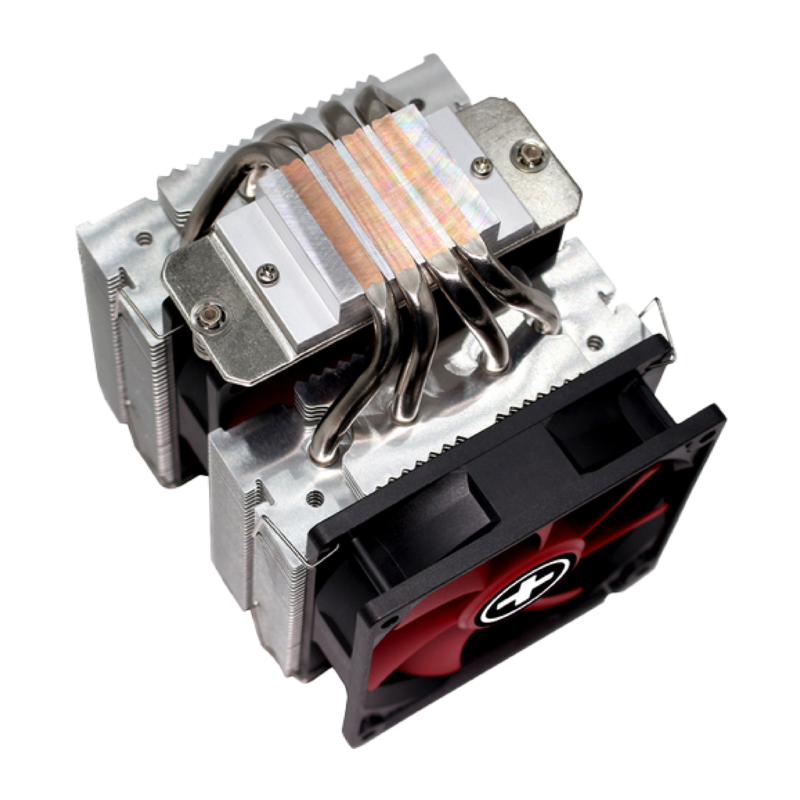

• Four 6mm copper heatpipes for a maximum heat dissipation

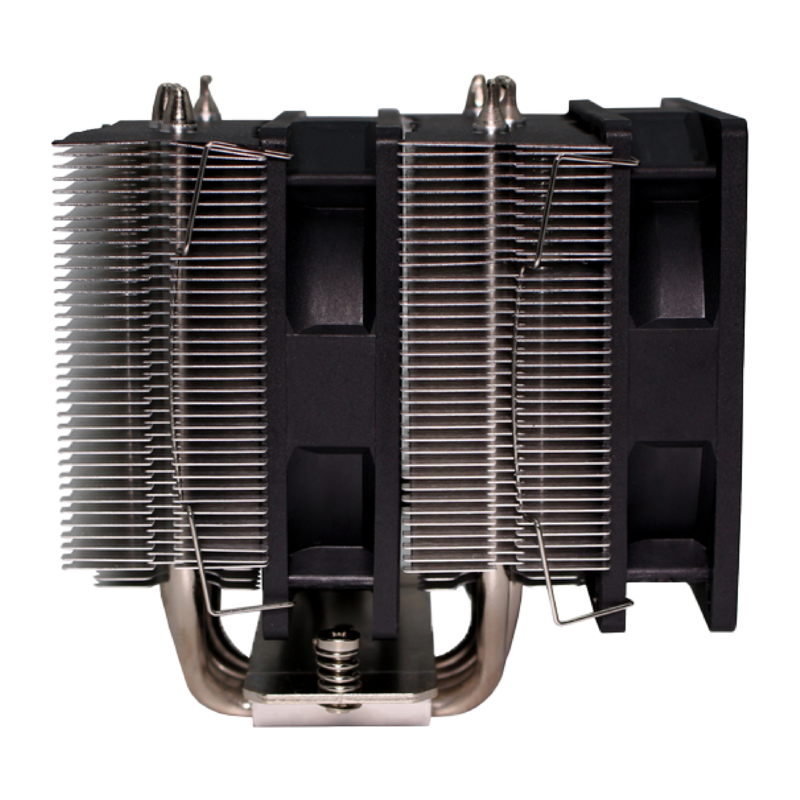

• The slight protrusion of the fans on the top and bottom sides help to avoid hot spots
• The fans can be mounted on both sides of the heat sinks
• Appropriate for all current AMD & INTEL sockets
