XC051 | M704

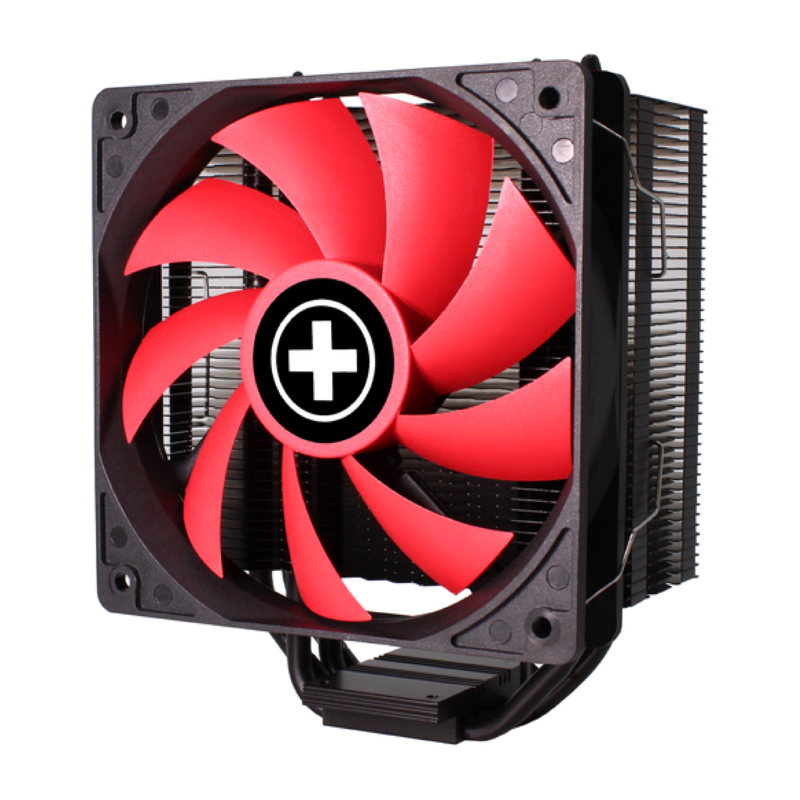

The new M704 is the first CPU cooler to widening the Performance A+ series. Just like the power supplies, this CPU cooler is completely black, with a red fan. The M704 has four equally black, extremely efficient heat pipes, which allow for a cooling capacity of up to 180W.

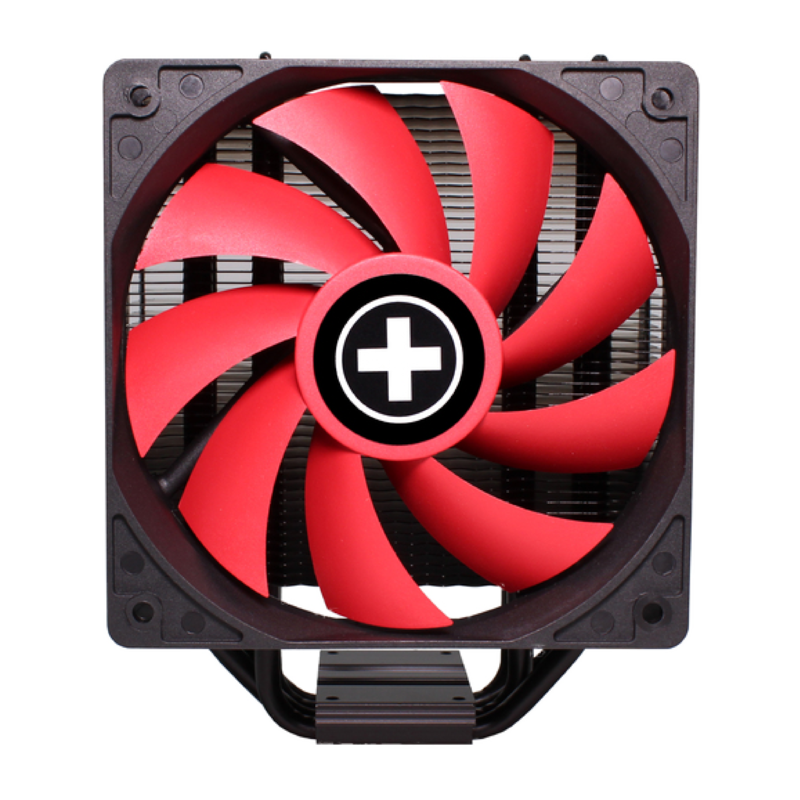

The red 120mm PWM fan completes the CPU cooler, which is especially appropriate for gaming systems with potent multicore processors. Thanks to the multi-socket design, the cooler can be applied on all current AMD and Intel sockets.

Included in the scope of delivery is – besides heatsink and 120mm PWM fan – mounting material for sockets LGA1150/1151/1155/1156/1200/1700/1851, LGA2066/2011 and AM4 / AM5 illustrated assembly instructions as well as a tube of thermal paste.



  • silent, hydro bearing 120mm PWM-fan
  • black heat-sink

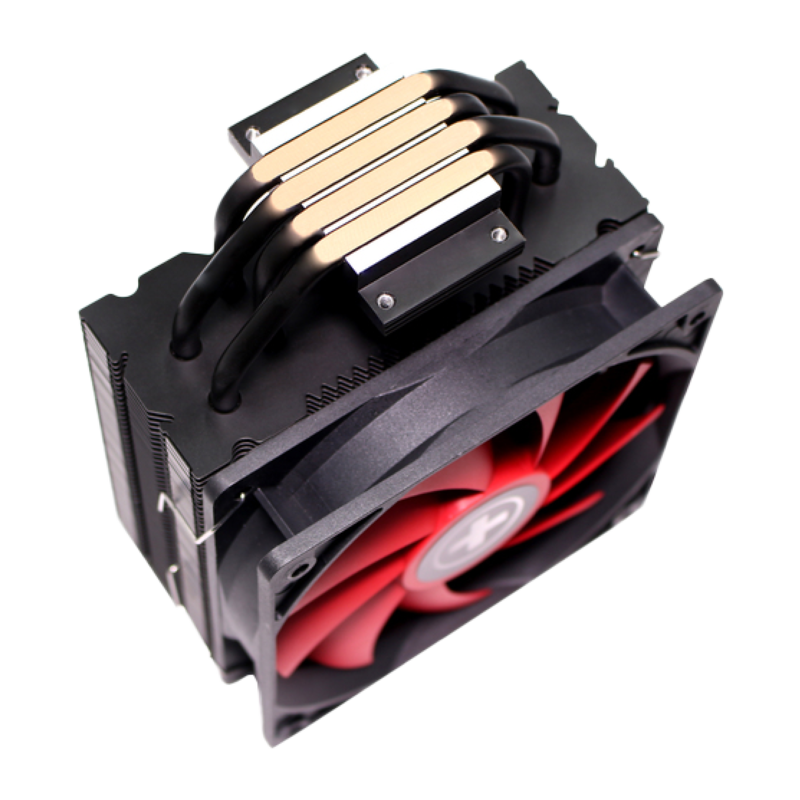

  • four black 6mm copper heat pipes for better heat flow

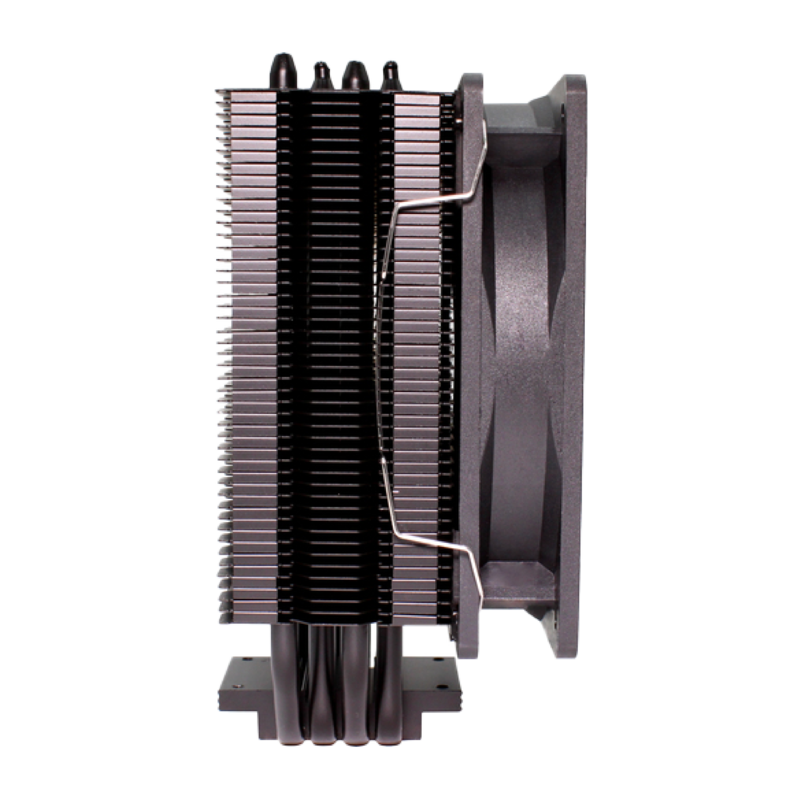

  • fin Design for high airflow and efficient cooling of the CPU and surrounding components
  • slight overhang of the fan avoids hotspots
  • possible mounting of the fan on both sides of the heat sink
  • suitable for all current AMD and INTEL sockets

SPEC

General Data
Model
Performance A+ | M704
Overall Dimensions without mounting material (L × W × H)
122 × 73 × 154mm
Total Weight
0.62Kg
CPU max. Watt
190W
Socket Compatibility
  • Intel : 1851 / 1700 / 2066 / 2011 / 1200 / 1156 / 1155 / 1151 / 1150
  • AMD : AM5 / AM4
Overall noise level @ 50 / 75 / 100% (rpm)
18.0 – 32.5dB(A)
Heatsink Specifications
Dimensions
120 × 75 × 155mm
Number of fins
55
Fin material
Aluminum
Base material
Copper
Heatpipe number / Diameter (mm)
4 / 6
Fan Specifications
Fan Dimensions
120 × 120 × 25mm
Speed
800 – 1800 ± 10% RPM
Bearing Type
Hydro Bearing
Rated Voltage
12V
Connector
4 pin
Cable Length (mm)
–
Lifespan (h / 25°C)
–
Accessories
Thermal Grease
included
