XC081 | M906

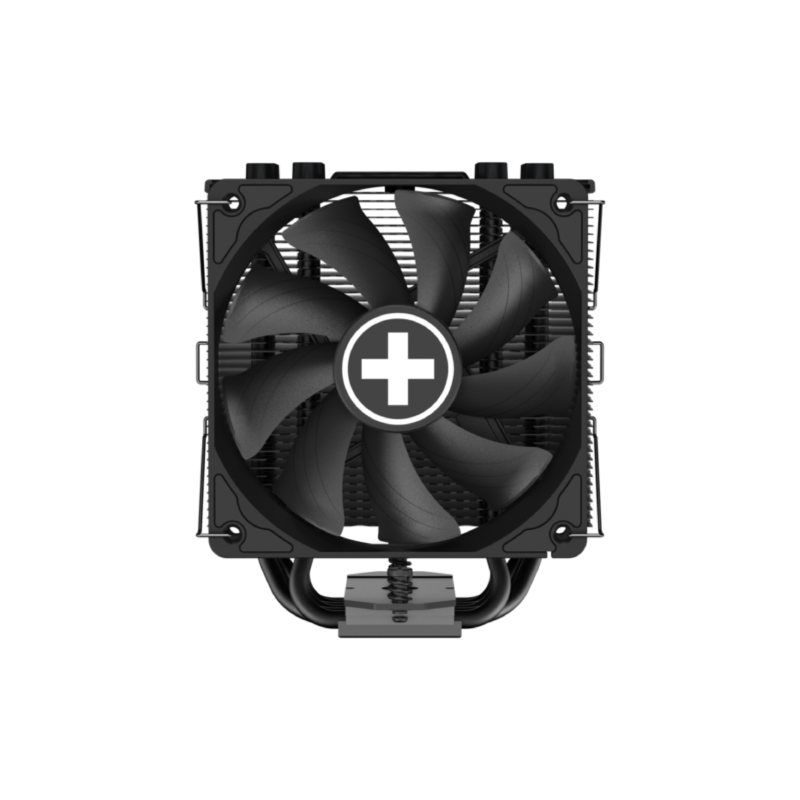

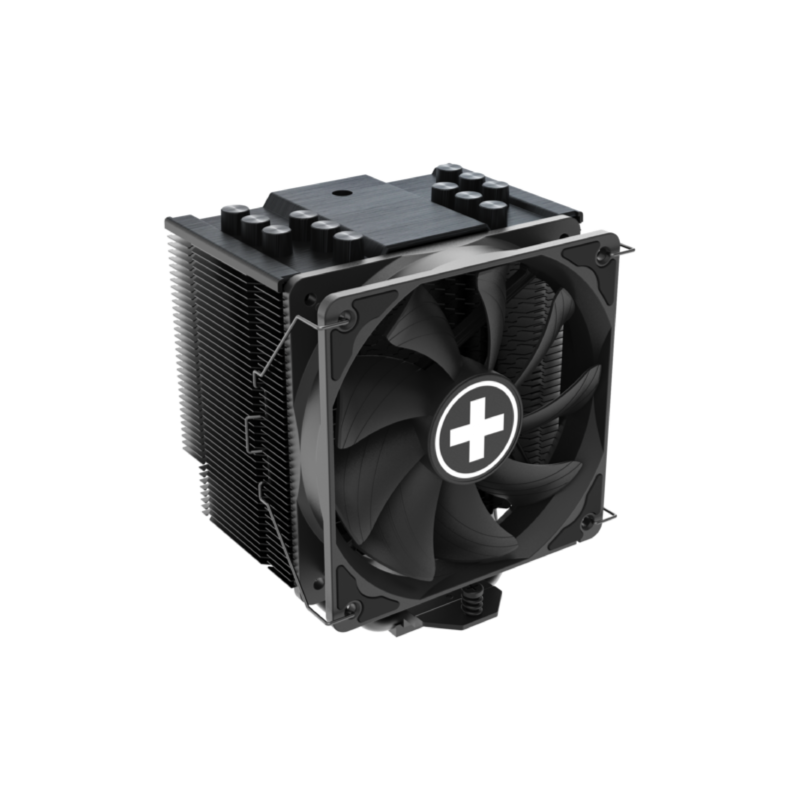

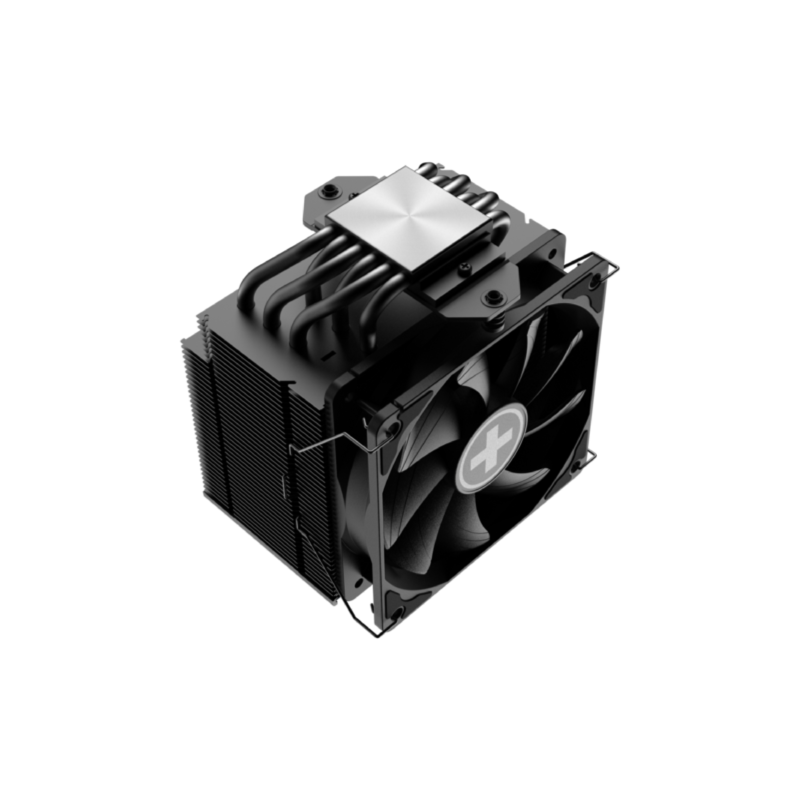

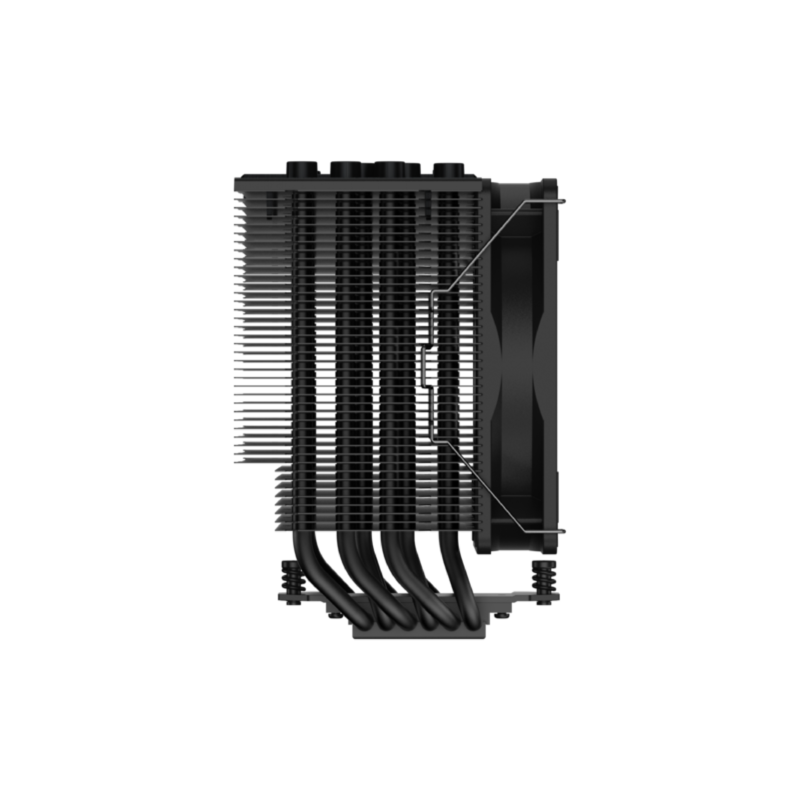

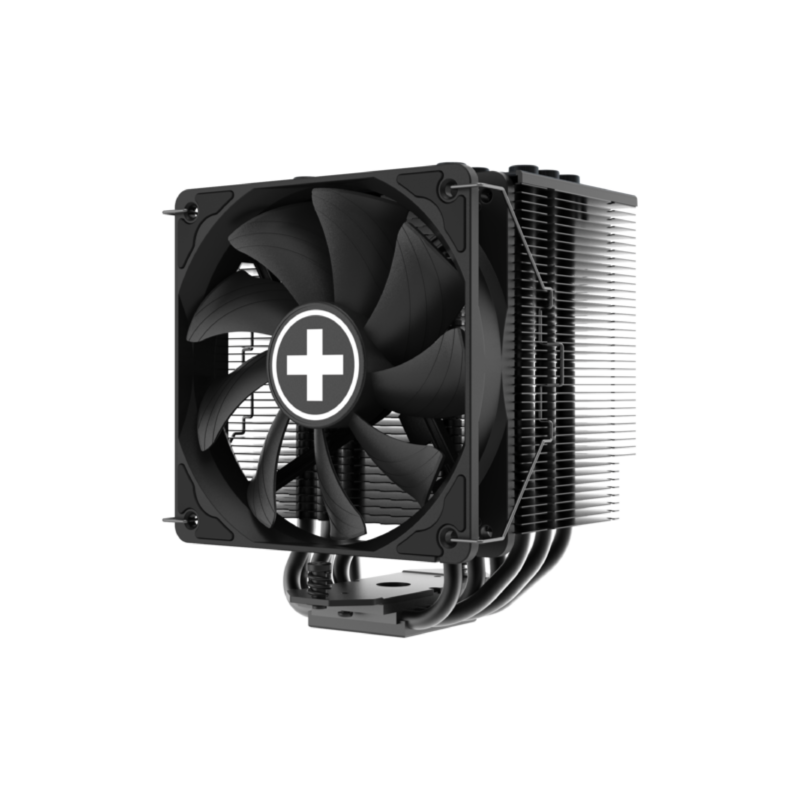

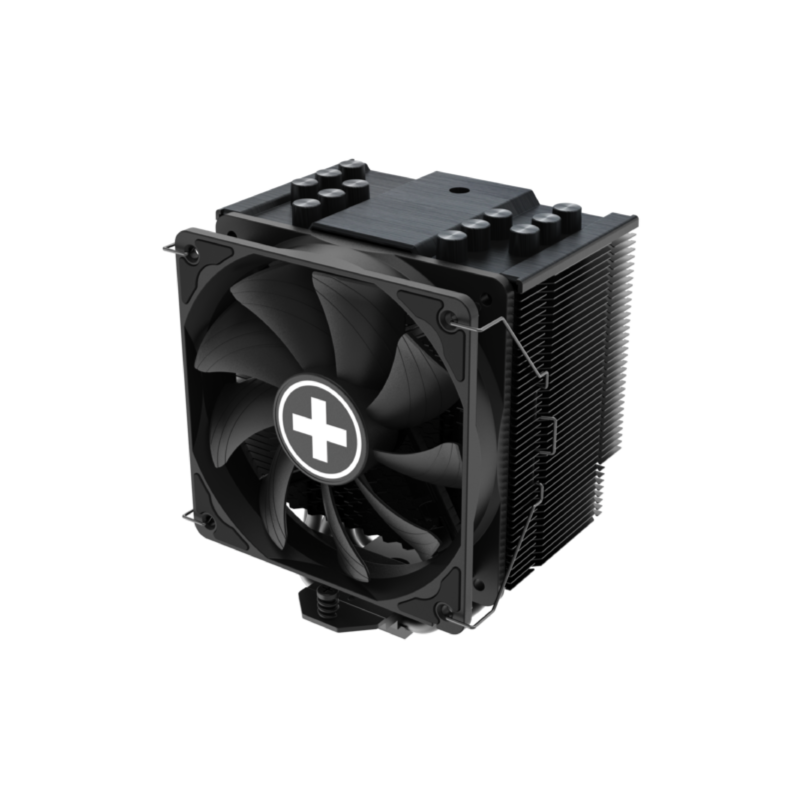

Our new flag ship in the field of air cooling from the performance X series – the M906
It has six extremely powerful black heat pipes, which dissipate 250W of waste heat to the countless cooling fins and thus predestine it for potent multi-core processors.
Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. The multi-socket means that the cooler can be used on all current Intel and AMD sockets.
In addition to the double heat sink and the PWM-controlled 120mm FDB Xilent fan, the scope of delivery includes a holding module for the LGA socket 1851/1700/2066/2011/1200/1151/1150/1155/1156 and AMD AM4/AM5, illustrated assembly instructions and a tube of thermal paste.
- Elegant black design with top cover
- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- One black 120mm FDB/PWM Xilent fan, liquid-stored
- six 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- Suitable for all common AMD & INTEL sockets







SPEC
General Data
- Model
- Performance A+ | M704
- Overall Dimensions without mounting material (L × W × H)
- 129 × 106 × 154mm
- Total Weight
- 0.905Kg
- CPU max. Watt
- 250W
- Socket Compatibility
-
- Intel : 1851 / 1700 / 2066 / 2011 / 1200 / 1156 / 1155 / 1151 / 1150
- AMD : AM5 / AM4
- Overall noise level @ 50 / 75 / 100% (rpm)
- 18.0 – 30.8dB(A)
Heatsink Specifications
- Dimensions
- 129 × 106 × 154mm
- Number of fins
- 45
- Fin material
- Aluminum
- Base material
- Copper + Aluminum
- Heatpipe number / Diameter (mm)
- 6 / 6
Fan Specifications
- Fan Dimensions
- 120 × 120 × 25mm
- Speed
- 500 – 1500 ± 10% RPM
- Bearing Type
- Hydraulic Bearing
- Rated Voltage
- 12V
- Connector
- 4 pin
- Cable Length (mm)
- 440 ± 10mm
- Lifespan (h / 25°C)
- –
Accessories
- Thermal Grease
- included
