XC091 | M806D.B
Our new flag ship in the ifed of air cooling from the performance X series – the M806D.B

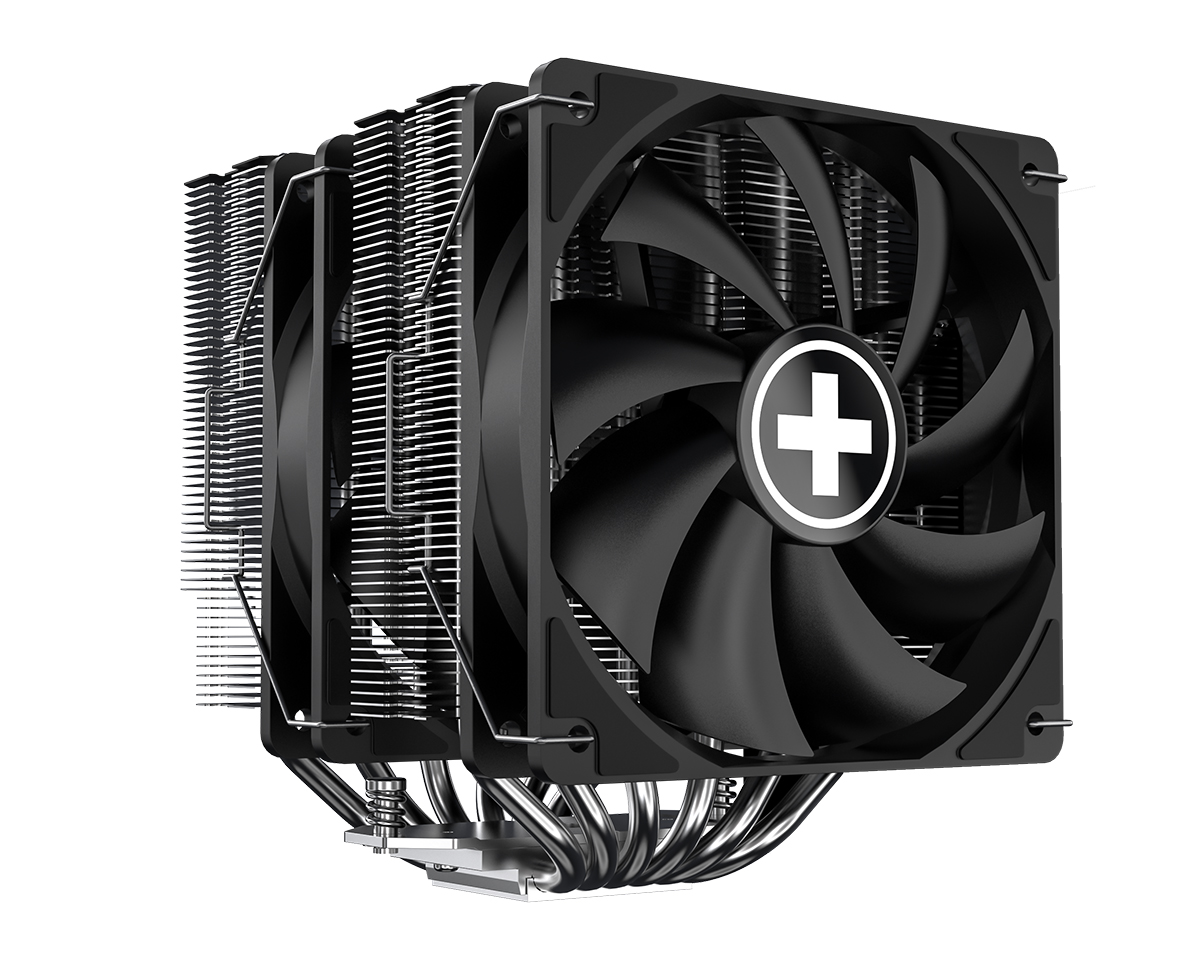

Dual tower and Dual PWM fan design maximizes performance and surface area , also six extremely Superconductive & powerful heat pipes, which dissipate 260W of waste heat to the countless cooling fins and thus predestine it for potent multi-core processors.

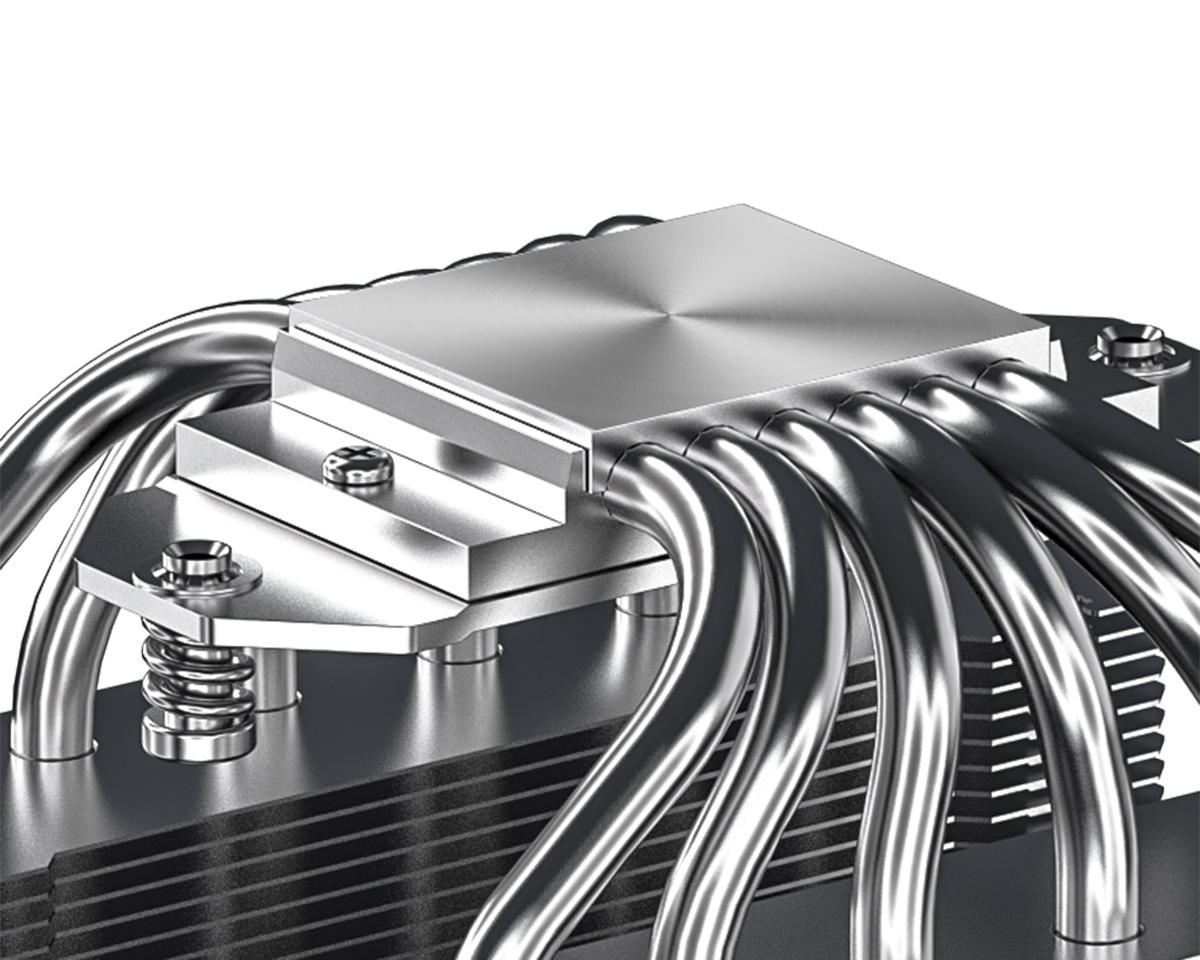

The nickel plated copper base provides seamless contact and complete coverage to target all heat zones.

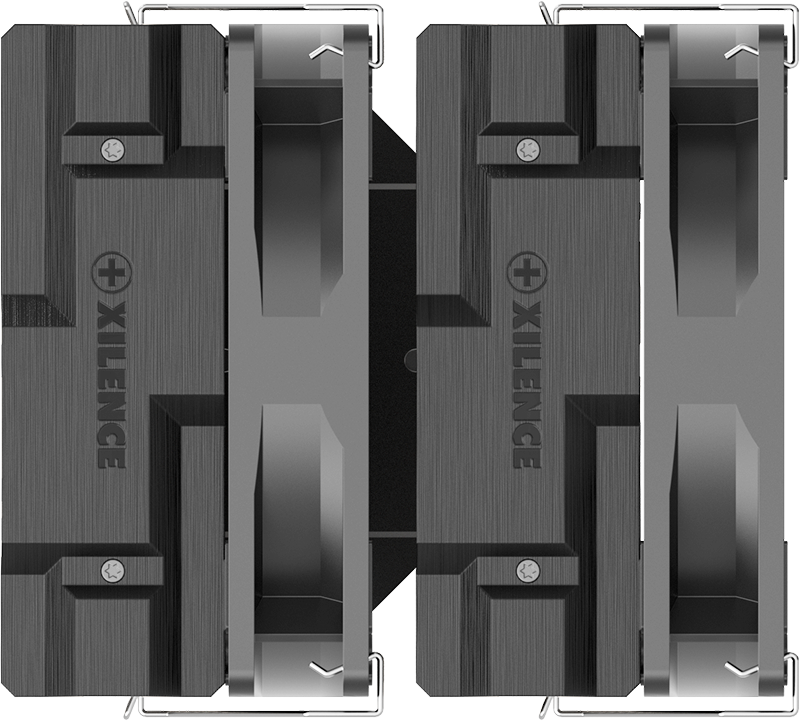

- Elegant design with stylish XILENCE top cover

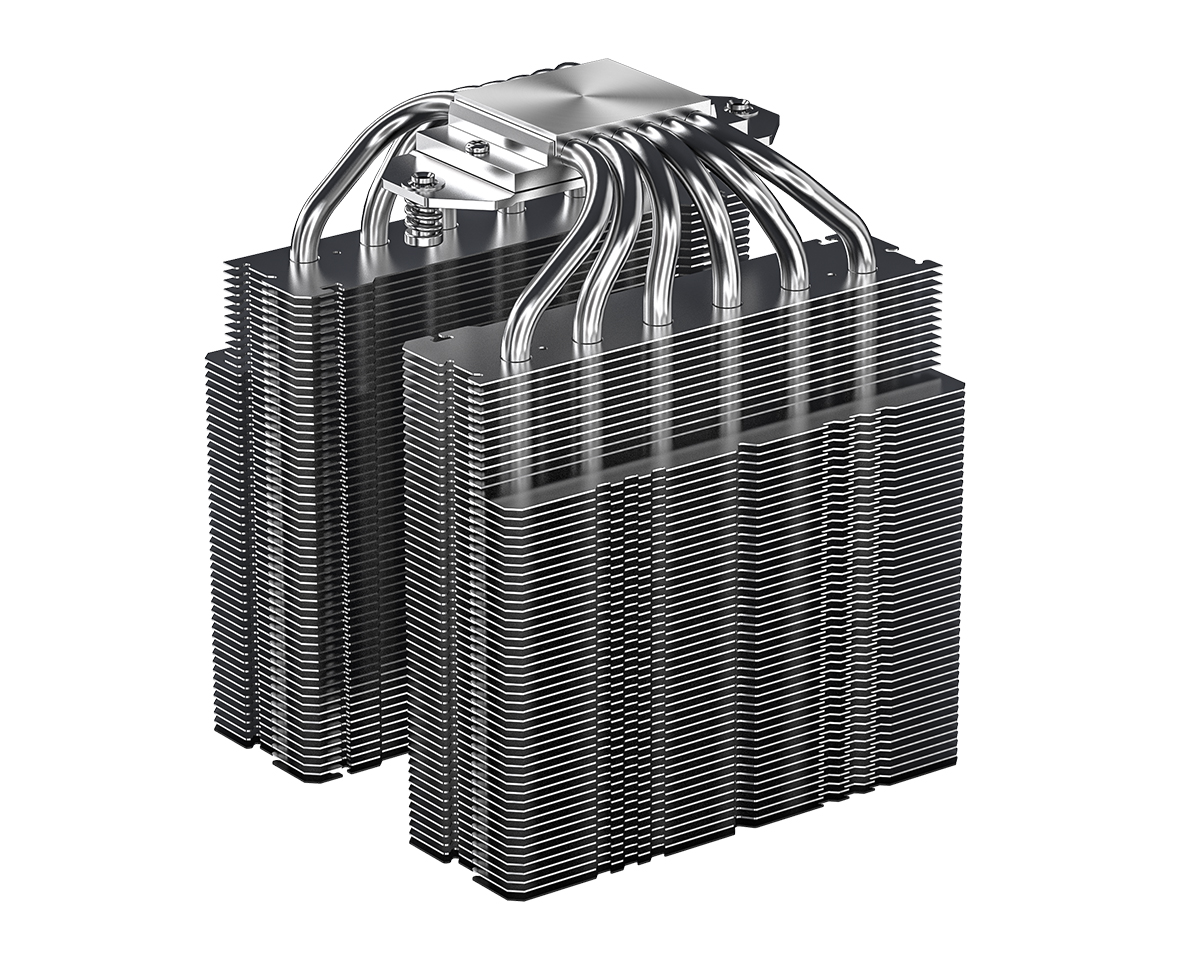

- The dual-tower heatsink with 6 heat pipes and dual fans double the surface area, providing exceptional cooling and heat dissipation.
- Dual PWM Fan: allows adjustable fan speeds from 700 to 1,600 RPM, to balance noise and airflow
- Easy Installation , enjoy a streamlined, user-friendly CPU cooler
- Suitable for all common AMD & INTEL sockets
- Versatile Compatibility for Chassis and enough space for RAM
SPEC
General Data
- Model
- Gaming Series | M806D.B
- Overall Dimensions without mounting material (L × W × H)
- 129 × 143 × 157mm
- Total Weight
- 1,190Kg
- CPU max. Watt
- 260W
- Socket Compatibility
-
- Intel : LGA 1851 / 1700 / 1200 / 115X
- AMD : AM5 / AM4
- Overall noise level @ 50 / 75 / 100% (rpm)
- 32.5dB(A)
Heatsink Specifications
- Dimensions
- –
- Number of fins
- 56 × 2
- Fin material
- Aluminum
- Base material
- –
- Heatpipe number / Diameter (mm)
- –
Fan Specifications
- Fan Dimensions
- 120 × 120 × 25mm × 2
- Speed
- 700 – 1600 ± 10% RPM
- Bearing Type
- Hydro Bearing
- Rated Voltage
- 12V
- Max. Air Flow
- 70CFM
- Connector
- –
- Cable Length (mm)
- –
- Lifespan (h / 25°C)
- –
Accessories
- Thermal Grease
- included
