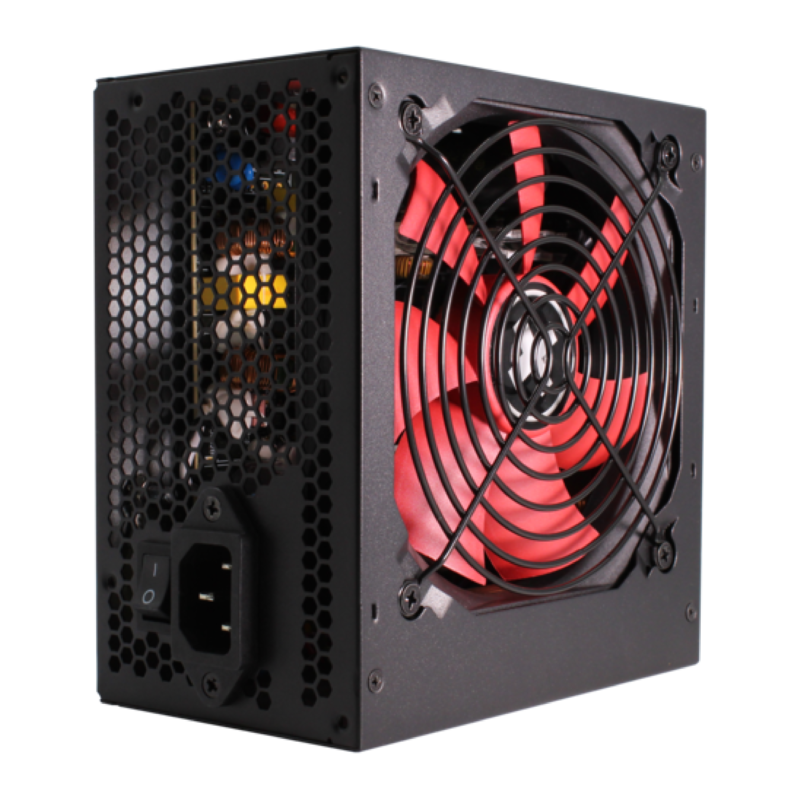

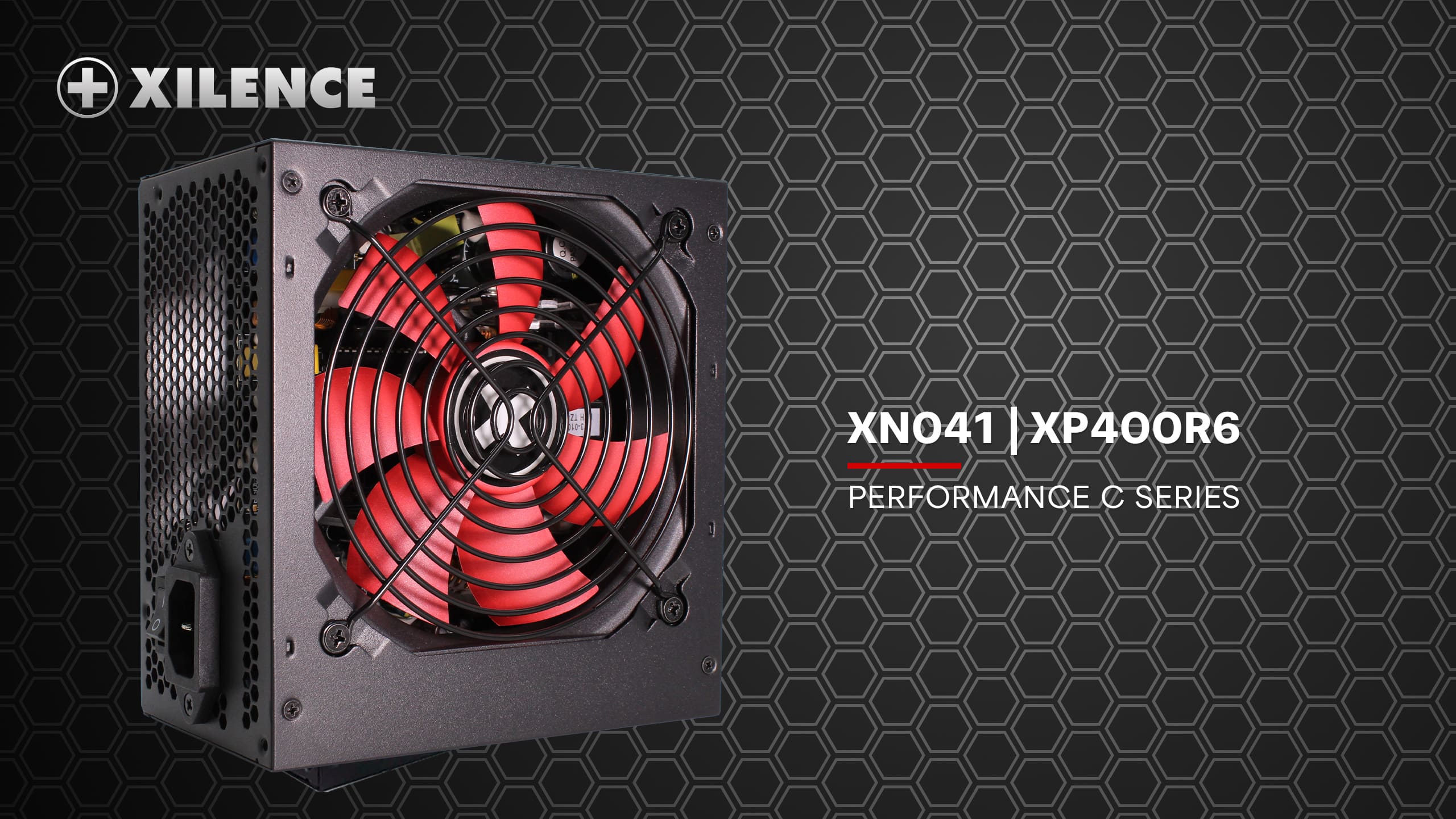

XN041 | XP400R6

The new Xilence Performance C series is focusing on the essentials. Designed for office and home computers, the new Performance C series delivers stable voltages with high efficiency (ErP2014).This guarantees a considerably low fan noise. Four built-in safety circuits ensure safe operation at all times.

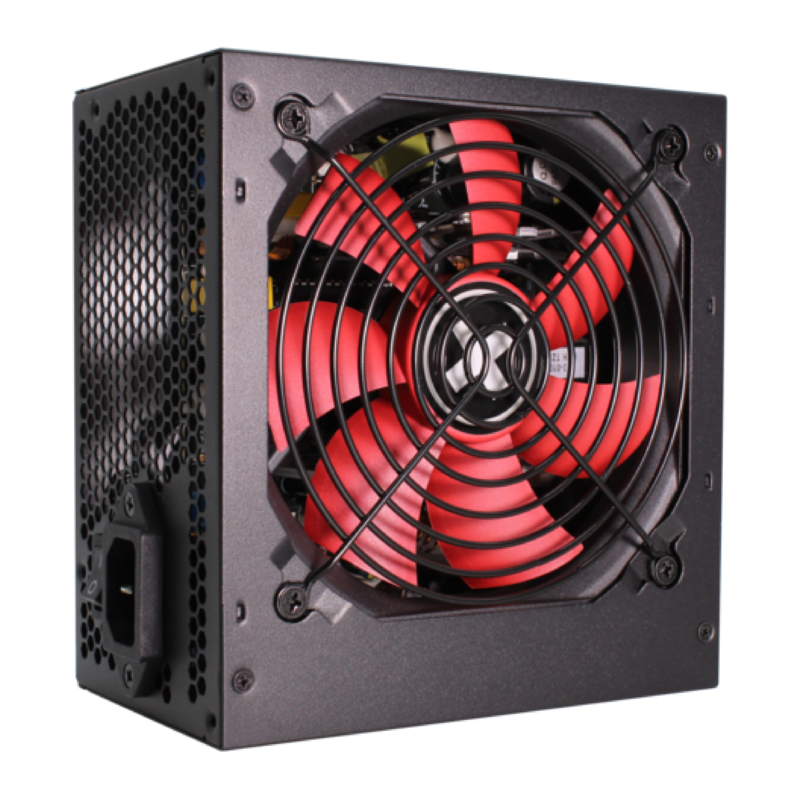

  • Extremely silent cooling: large 120mm fan
  • Excellent air flow design for a better heat dissipation
  • Following safety design:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • SCP (Short Circuit Protection)
    • OLP (Over Load Protection)
  • Low stand-by consumption
  • Complies with ErP2014 norm
  • Active-PFC

SPEC

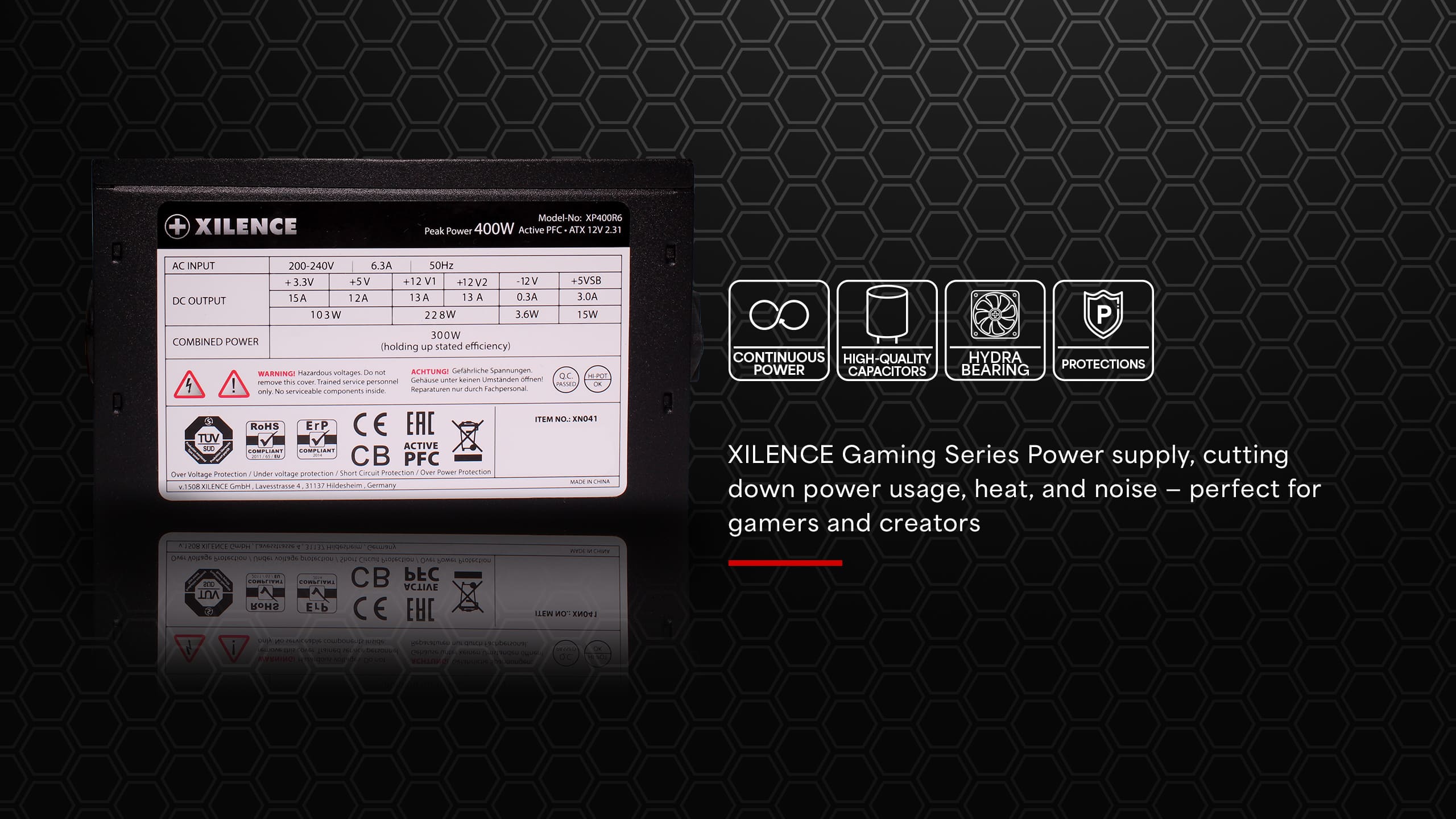

General Data
Model
Performance C | XP400R6
Peak Power (W)
300W
Form Factor ATX 12V
Version 2.31
Voltage (Vac)
200 – 240
Frequency (Hz)
50
Input current (A)
6.3A
PFC
active

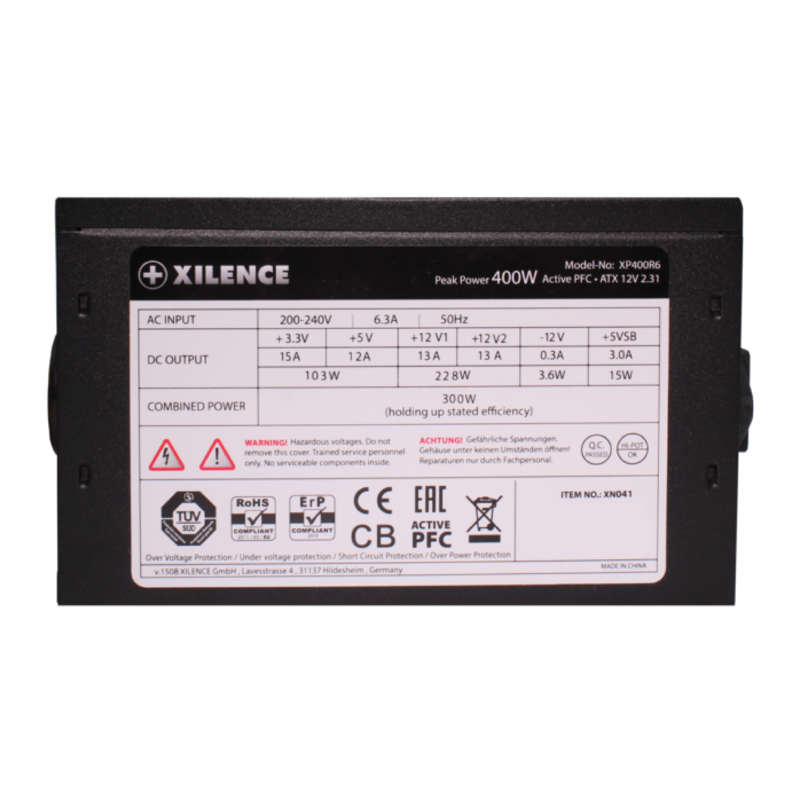

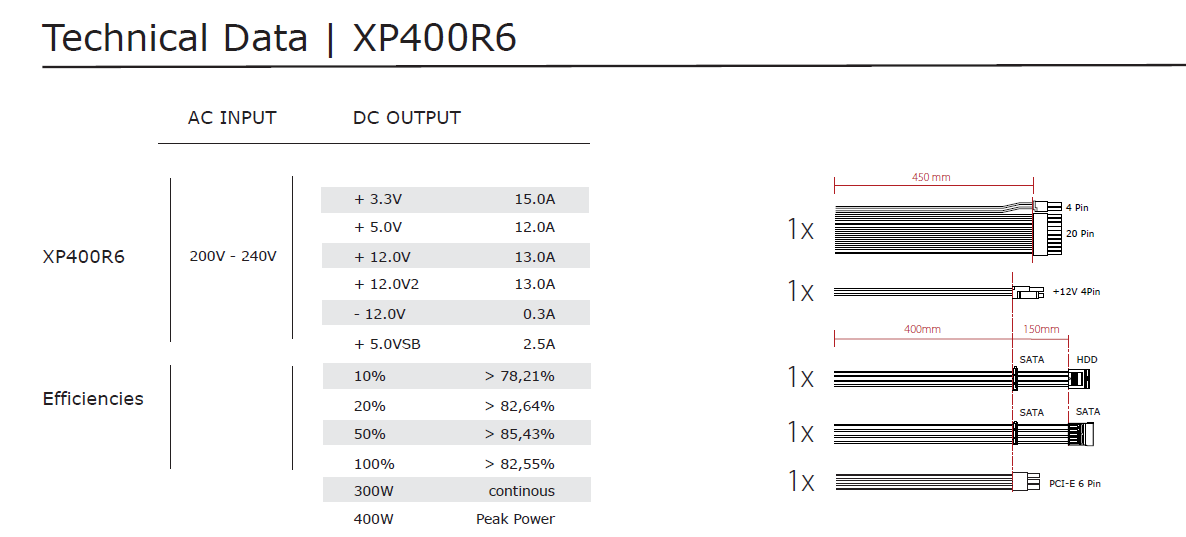

Output
+3.3V (A)
15A
+5V (A)
12A
+12V1 (A)
13A
-12V (A)
0.3A
+5Vsb (A)
3A
Max. combined power 12V (W)
300W
Max. combined power 3.3V + 5V (W)
100W
+12V2 (A)
–
Fan / Cooling technology
Bearing technology
Hydro Bearing

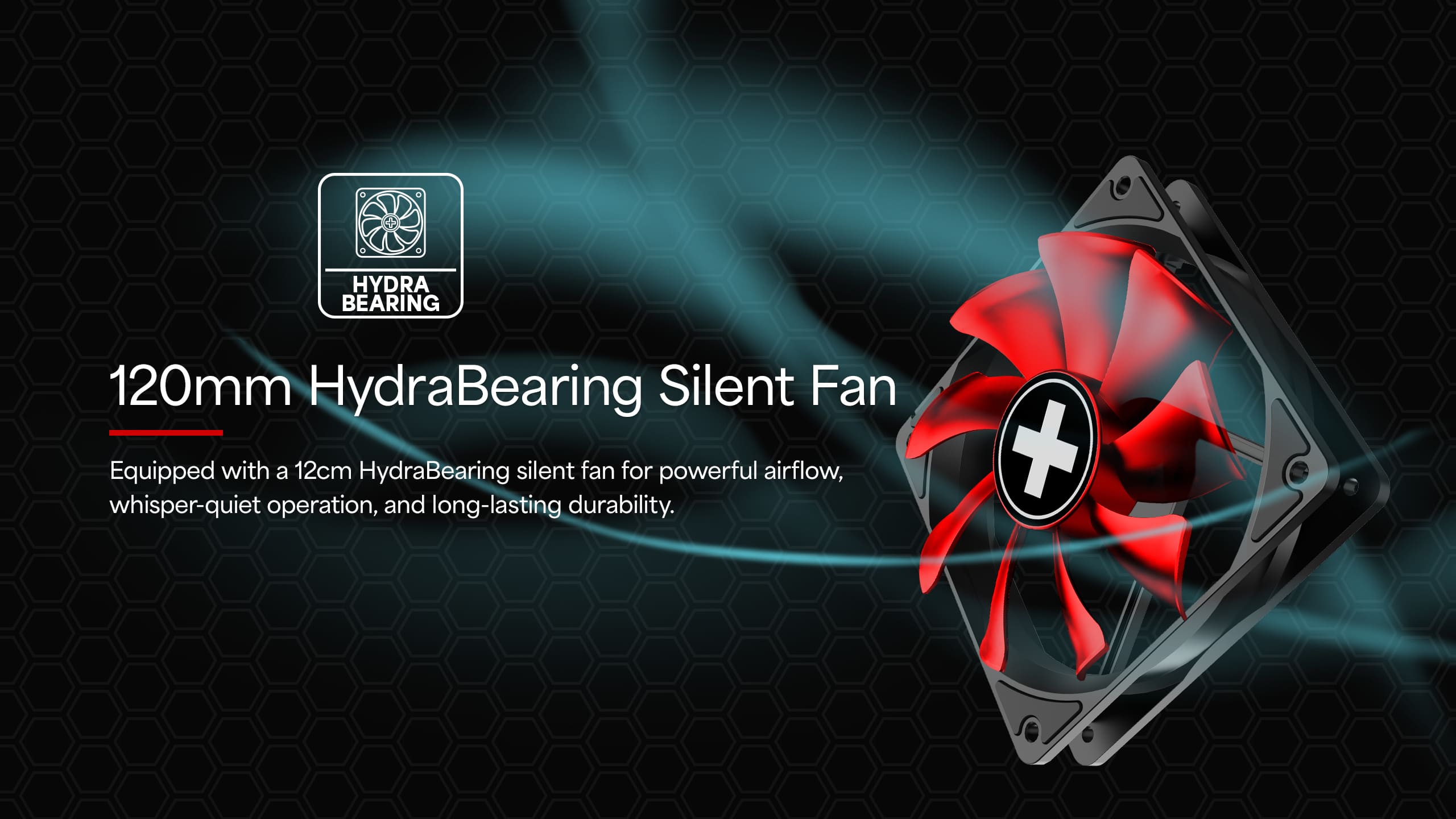

Fan size (mm)
120mm
Protection
OCP (over current protection)
✓
OVP (over voltage protection)
✓
UVP (under voltage protection)
✓
SCP (short circuit protection)
✓
OTP (over temperature protection)
✓
OPP (over power protection)
✓
Eco / Efficiency
80PLUS certification
–
Efficiency (%) at 230V, 20% load
–
Efficiency (%) at 230V, 50% load
–
Efficiency (%) at 230V, 100% load
–
Environmental directives
ErP
✓
WEEE
✓
RoHS
✓

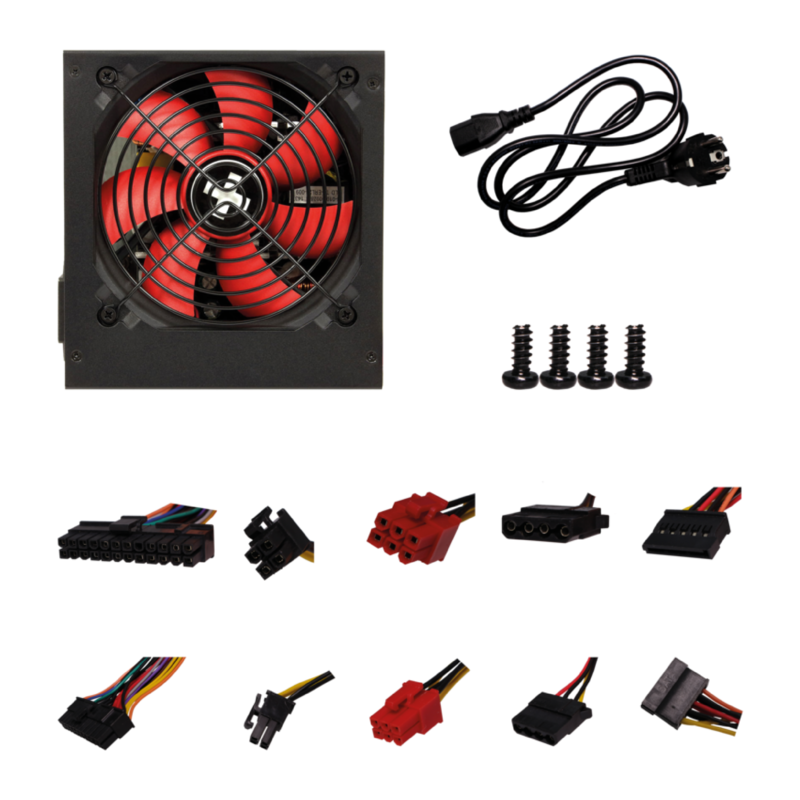

Cable management / Connectors
Modular cable management
✓
Cable length to mainboard (mm)
450mm
Cable length to first connector (mm)
–
Maximum cable length (mm)
–
Sleeved cables
✓
No. of cables
5
ATX-Motherboard (20+4-pin)
1
P4
1
P8 (CPU)
–
PCI-E 6-pin (GPU)
1
PCI-E 6+2-pin (GPU)
–
PATA 4-pin
1
SATA 15-pin (HDD, Drives)
3
FDD (Floppy)
–
Logistics data, RRP
Range
C Series
Article number
XN041
Dimensions, package (L × W × H), (mm)
140 × 150 × 86mm
Gross weight, package (kg)
1.6
Pieces per packaging unit
10
Dimensions, shipping box (L × W × H), (mm)
515 × 342× 245mm
Gross weight, shipping box (kg)
15.1
