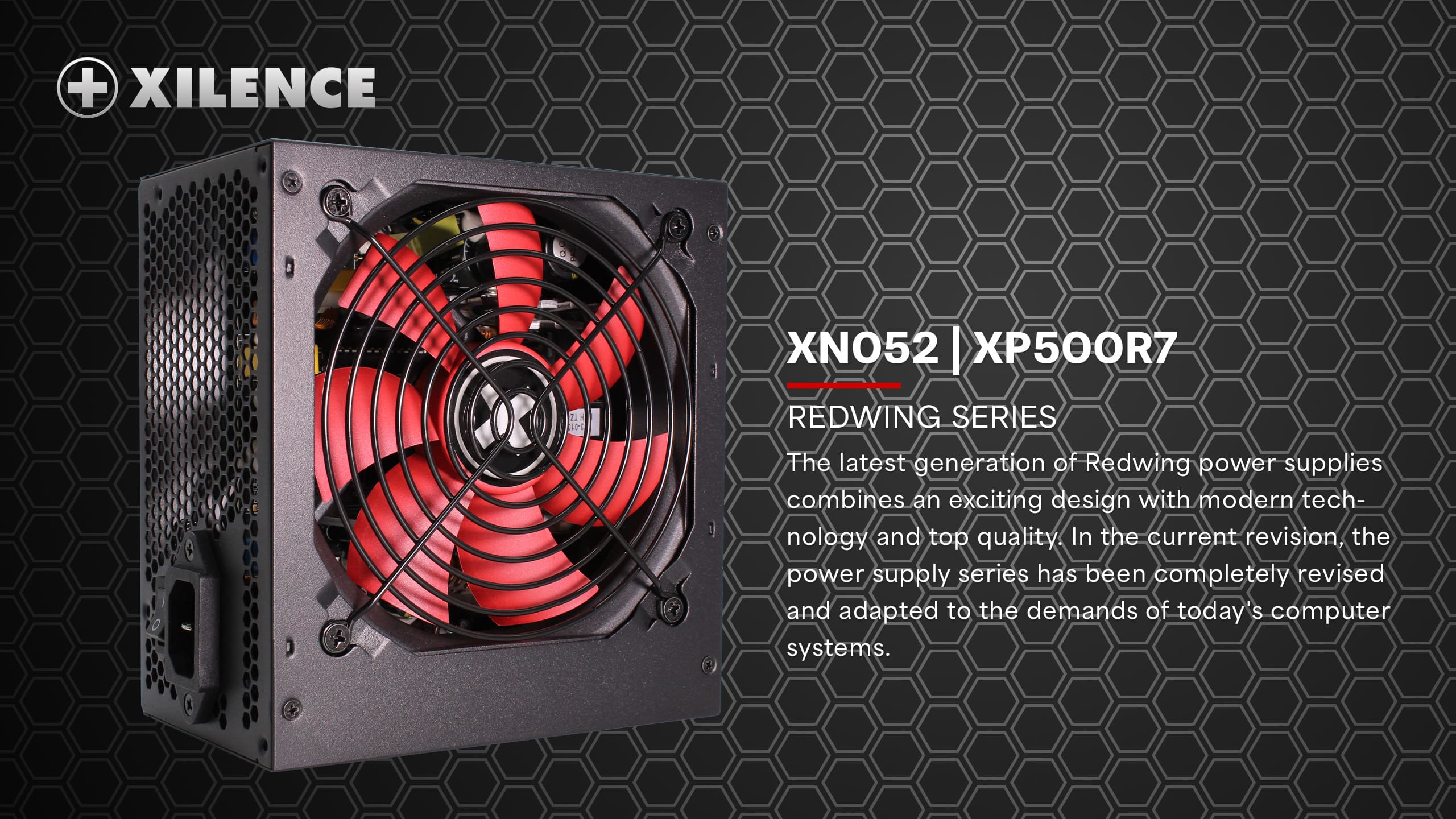

XN052 | XP500R7
The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today’s computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.
- Powerful: Optimal performance in every situation
- Whisper-Silent Cooling: 1x 120mm fan
- Reliable: Maximum stability at all time
- The following safety features:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SCP ( Short Circuit Protection)
- OLP (Over Load Protection)

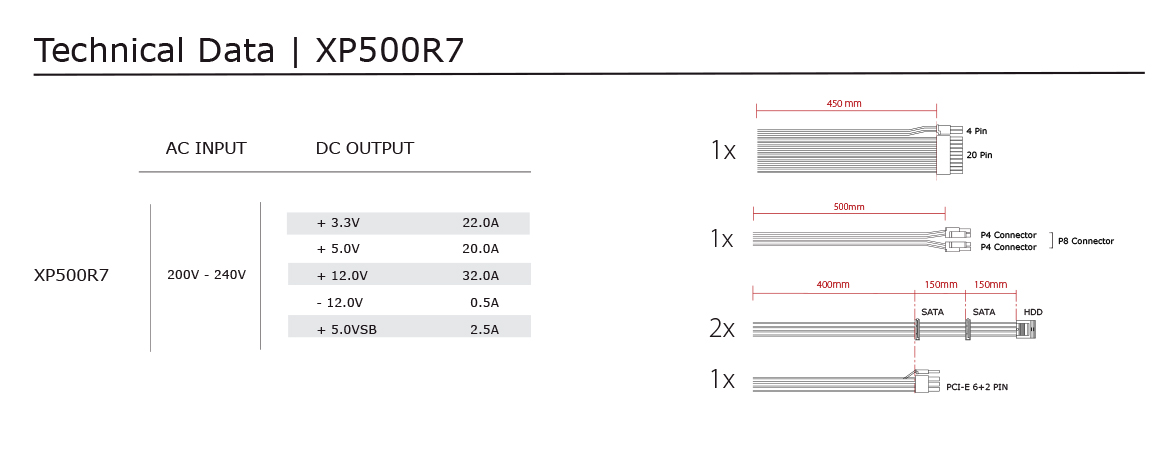

SPEC
General Data
- Model
- Redwing | XP500R7
- Peak Power (W)
- 500W
- Form Factor ATX 12V
- Version 2.31
- Voltage (Vac)
- 200 – 240
- Frequency (Hz)
- 50
- Input current (A)
- 8A
- PFC
- active
Output
- +3.3V (A)
- 22A
- +5V (A)
- 15A
- +12V1 (A)
- 32A
- -12V (A)
- 0.5A
- +5Vsb (A)
- 2.5A
- Max. combined power 12V (W)
- 482W
- Max. combined power 3.3V + 5V (W)
- 100W
- +12V2 (A)
- –

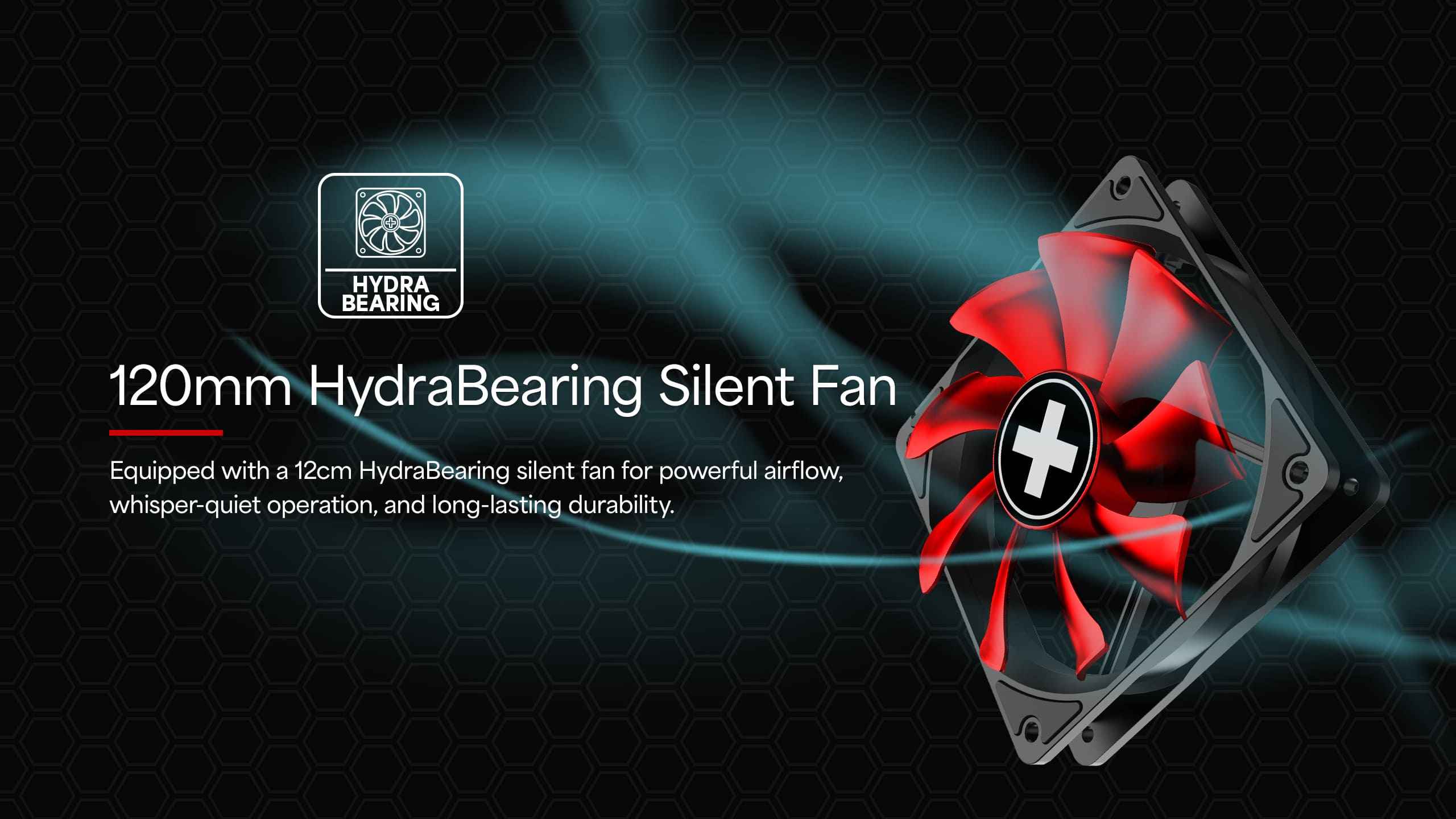

Fan / Cooling technology
- Bearing technology
- Hydro Bearing
- Fan size (mm)
- 120mm
Protection
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
Eco / Efficiency
- 80PLUS certification
- –
- Efficiency (%) at 230V, 20% load
- –
- Efficiency (%) at 230V, 50% load
- –
- Efficiency (%) at 230V, 100% load
- –
Environmental directives
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓
Cable management / Connectors
- Modular cable management
- ✓
- Cable length to mainboard (mm)
- 450mm
- Cable length to first connector (mm)
- –
- Maximum cable length (mm)
- –
- Sleeved cables
- ✓
- No. of cables
- 5
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 1
- P8 (CPU)
- –
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 1
- PATA 4-pin
- 2
- SATA 15-pin (HDD, Drives)
- 4
- FDD (Floppy)
- –
Logistics data, RRP
- Range
- Redwing Series
- Article number
- XN052
- Dimensions, package (L × W × H), (mm)
- 140 × 150 × 86mm
- Gross weight, package (kg)
- 1.6
- Pieces per packaging unit
- 10
- Dimensions, shipping box (L × W × H), (mm)
- 520 × 468× 185mm
- Gross weight, shipping box (kg)
- 17.4
