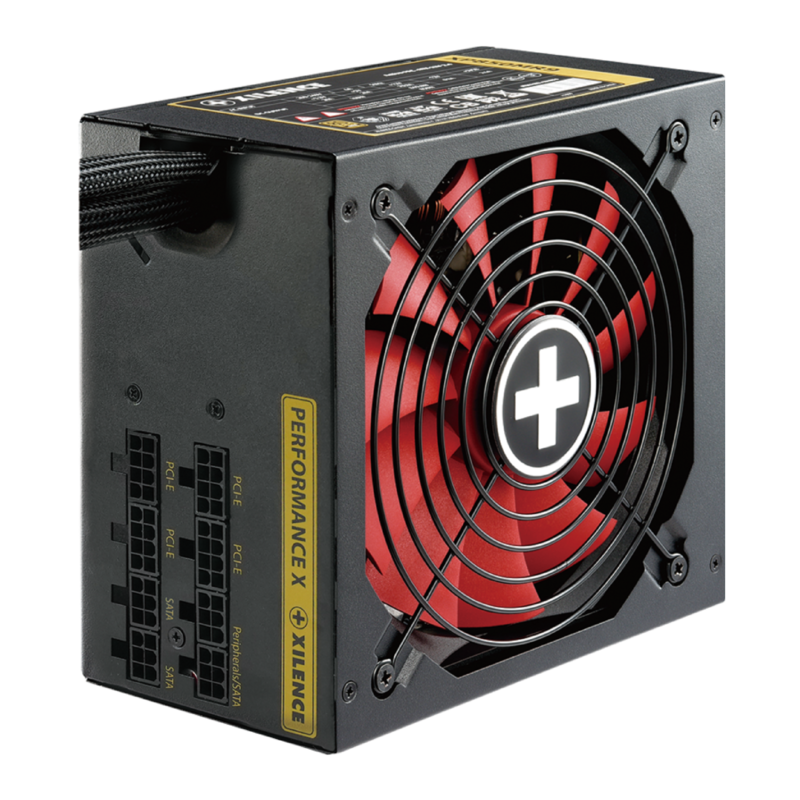

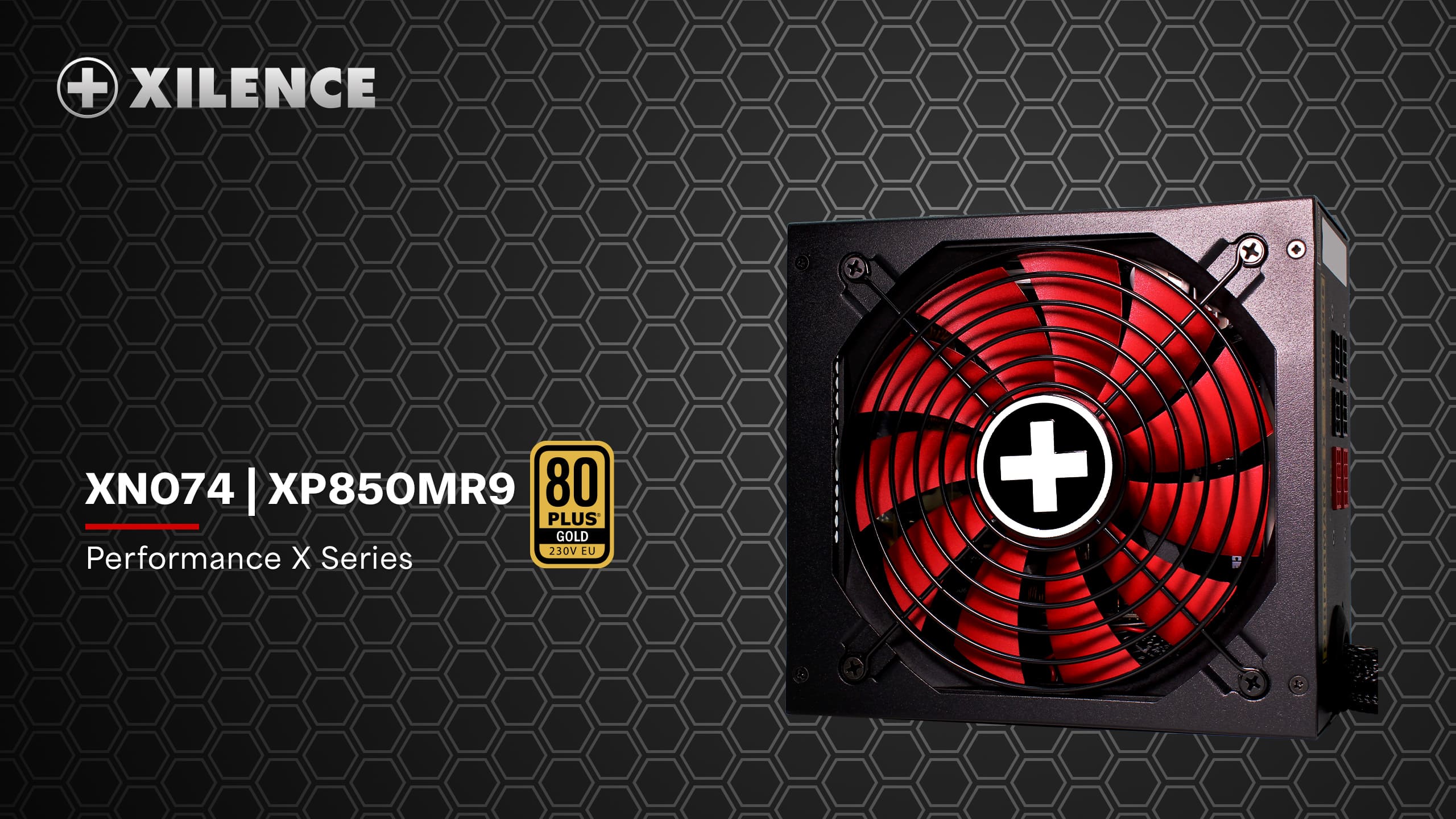

XN074 | XP850MR9

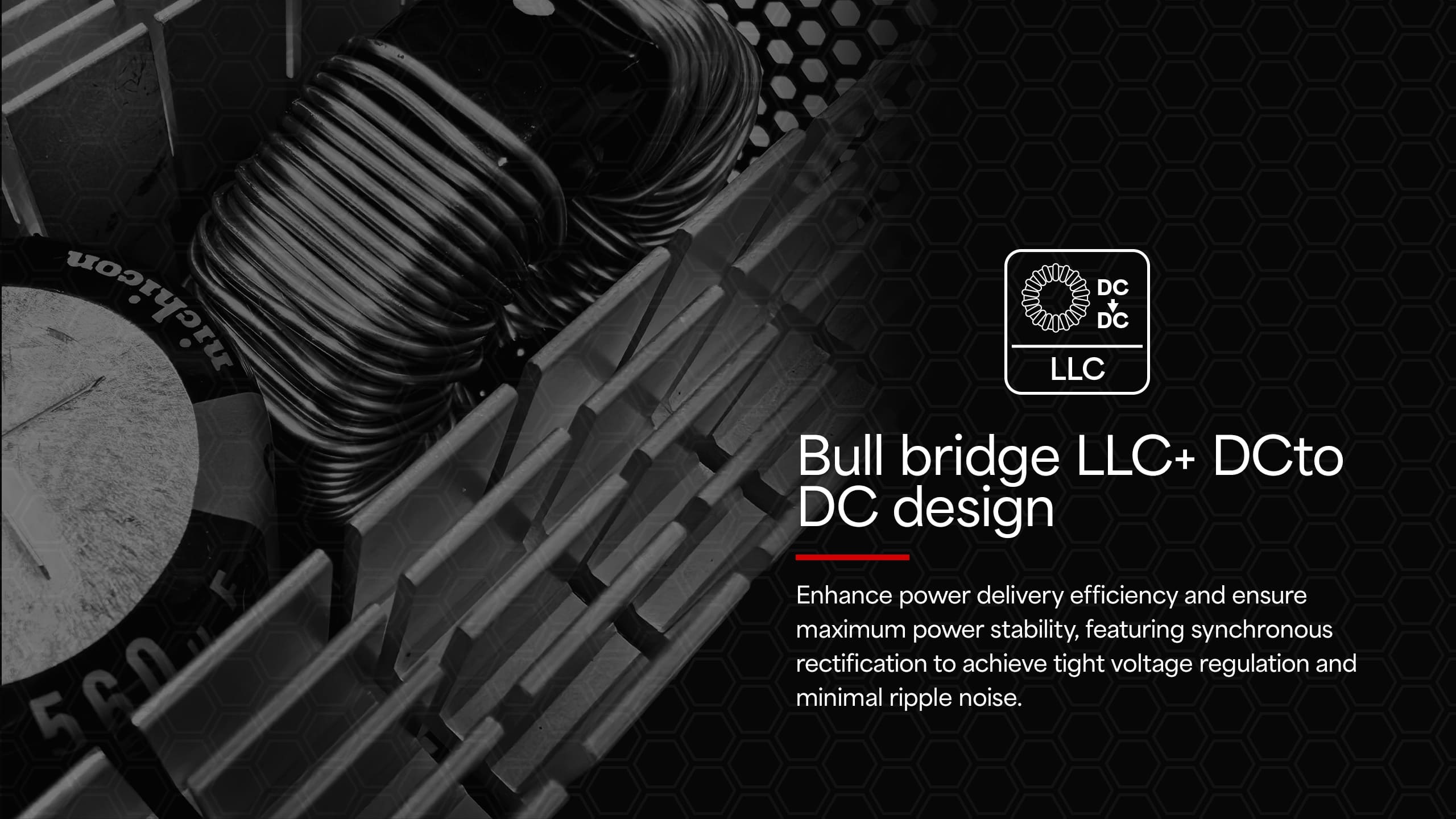

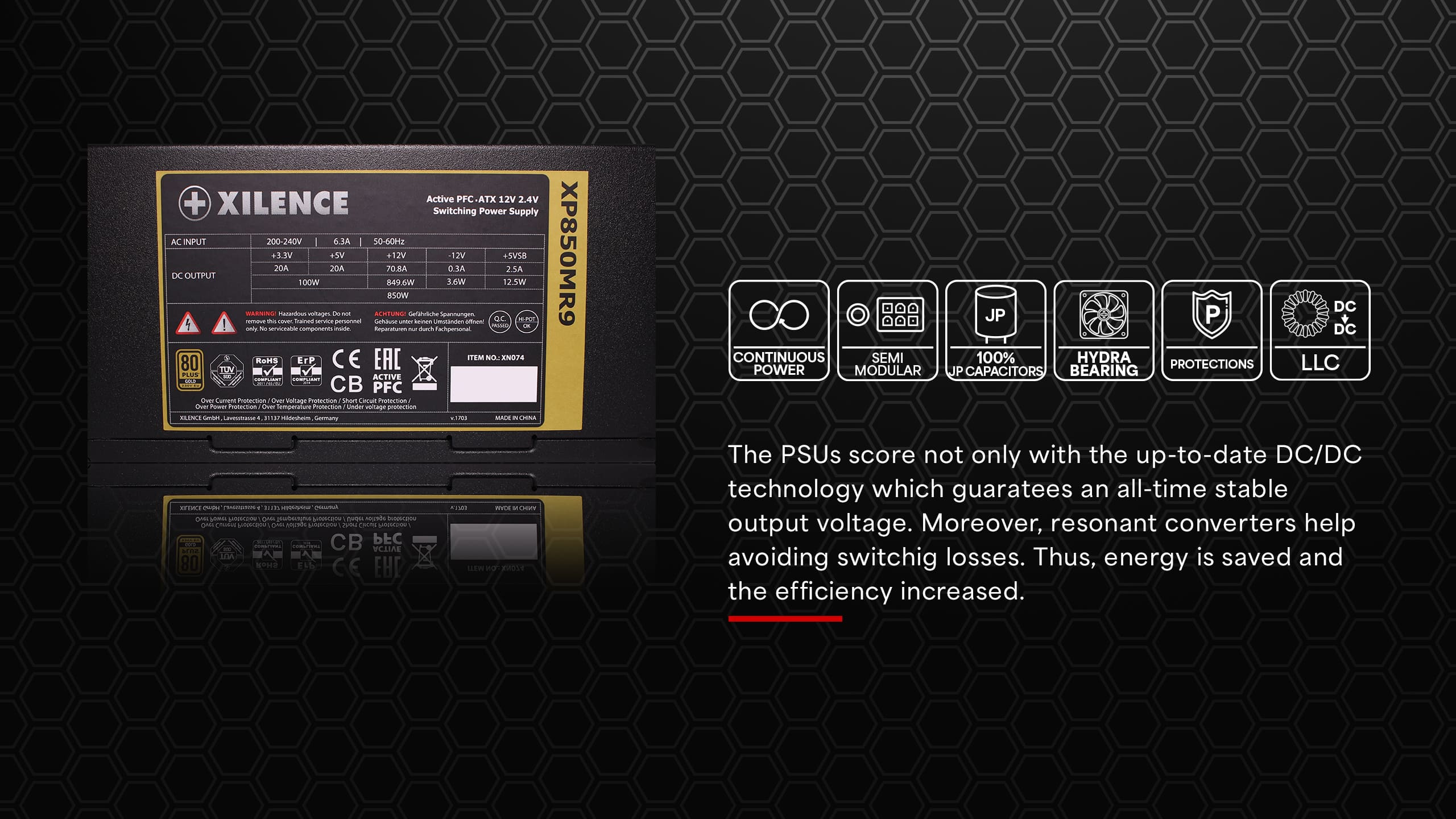

Launching the Performance X model line, Xilence is extending the already favorable portfolio of power supply units. Following the ErP2014 conform entry-level models and the successful Performance A+ Series, the next step is made into the 80+ GOLD class. The PSUs score not only with the up-to-date DC/DC technology which guaratees an all-time stable output voltage. Moreover, resonant converters help avoiding switchig losses. Thus, energy is saved and the efficiency increased. The dynamic hydro-bearing fans work in an especially sooth and silent way. Furthermore, the PSUs win over thanks to an extremely long life period and their excellent cooling performance. All of those specifications together with being powerful in quality/price ratio turn the Performance X Series into an ideal solution for current Gaming PC Systems.



  • Extremely silent cooling: large 135mm fan

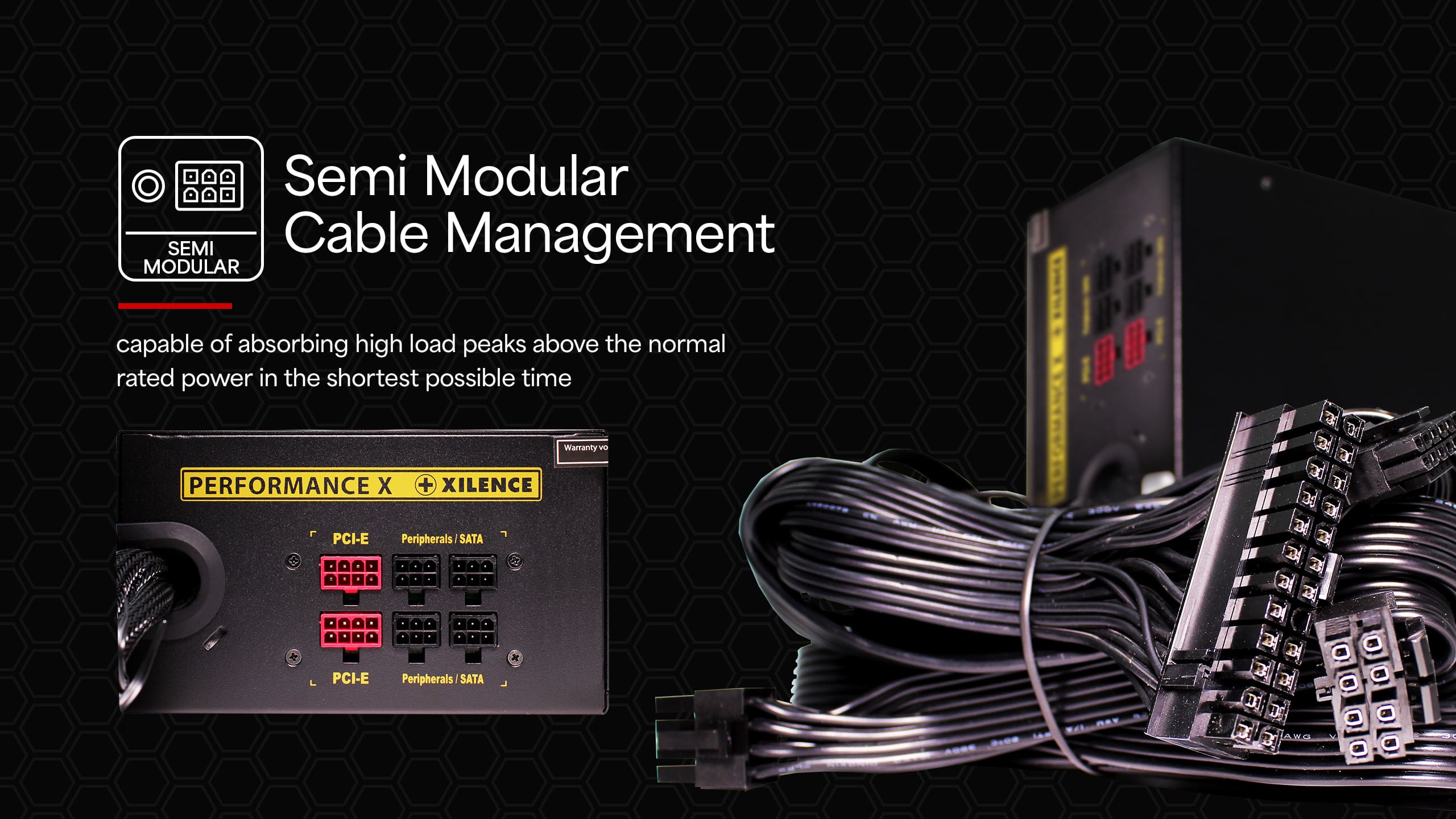

  • modular cable management
  • Excellent air flow design for a better heat dissipation
  • Following safety design:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • OCP (Over Current Protection)
    • OTP (Over Temperature Portection)
    • SCP (Short Circuit Protection)
    • OLP (Over Load Protection)
  • Low stand-by consumption
  • high energy efficiency: 80+ GOLD® and EcoPSU certified (complies with ErP2014 norm)
  • Active-PFC

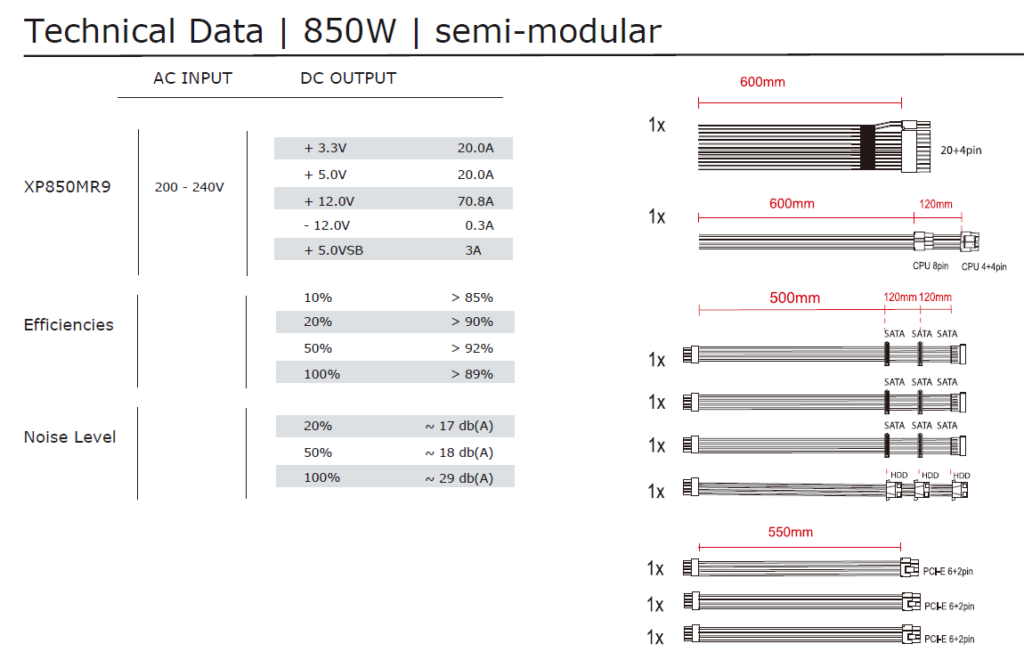

SPEC



General Data
Model
Performance X+ | XP850MR9.2
Peak Power (W)
850W
Form Factor ATX 12V
Version 2.52
Voltage (Vac)
200 – 240
Frequency (Hz)
50 – 60
Input current (A)
6.3
PFC
active

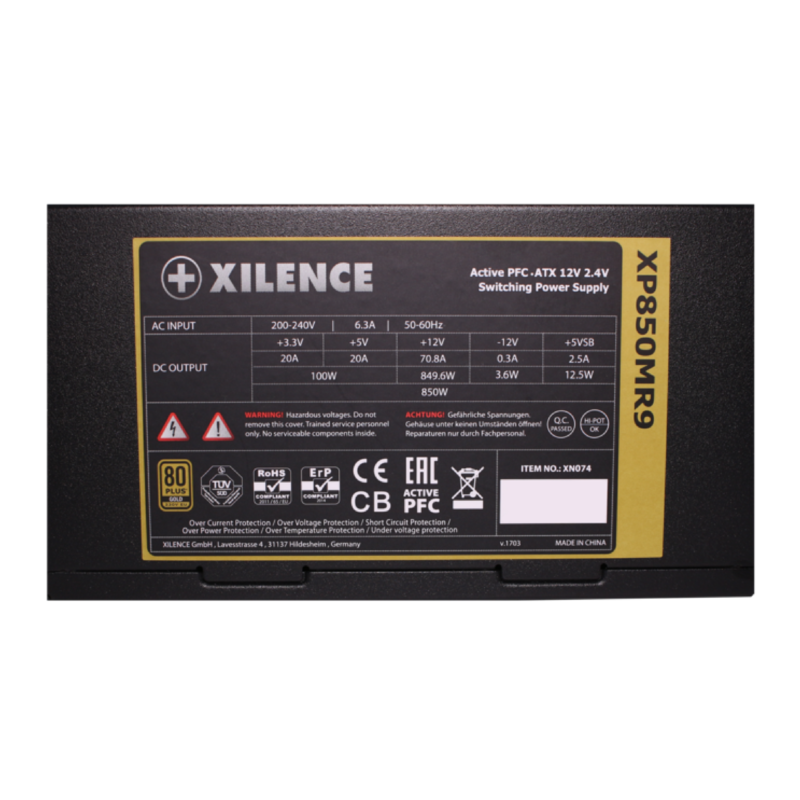

Output
+3.3V (A)
20A
+5V (A)
20A
+12V1 (A)
70.8A
-12V (A)
0.3A
+5Vsb (A)
3A
Max. combined power 12V (W)
850W
Max. combined power 3.3V + 5V (W)
100W
+12V2 (A)

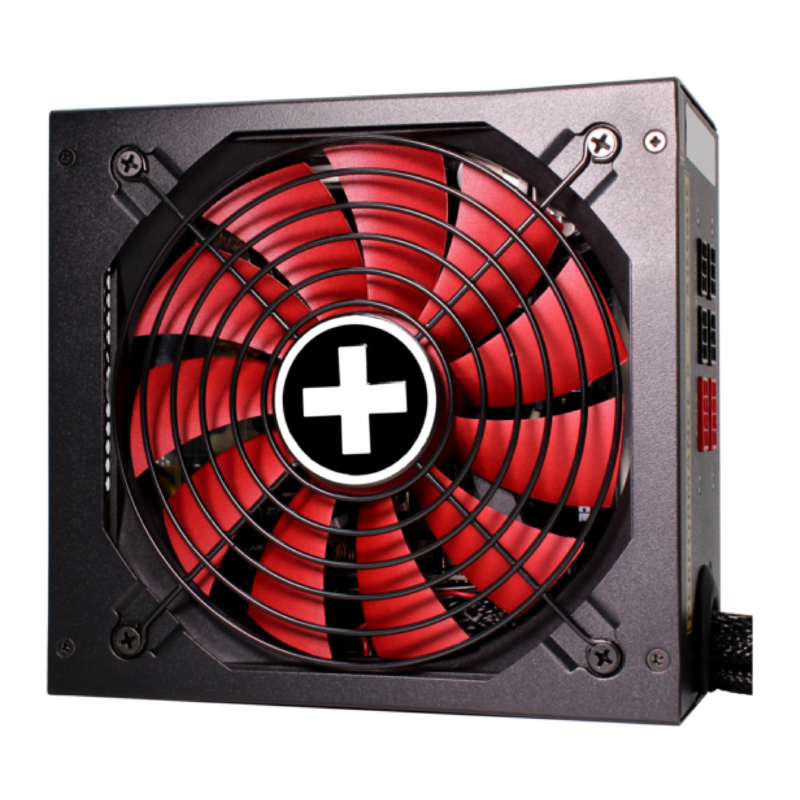

Fan / Cooling technology
Bearing technology
FDB
Fan size (mm)
140mm
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Eco / Efficiency
80PLUS certification
Gold
Efficiency (%) at 230V, 20% load
90%
Efficiency (%) at 230V, 50% load
92%
Efficiency (%) at 230V, 100% load
89%
Environmental directives
ErP
WEEE
RoHS

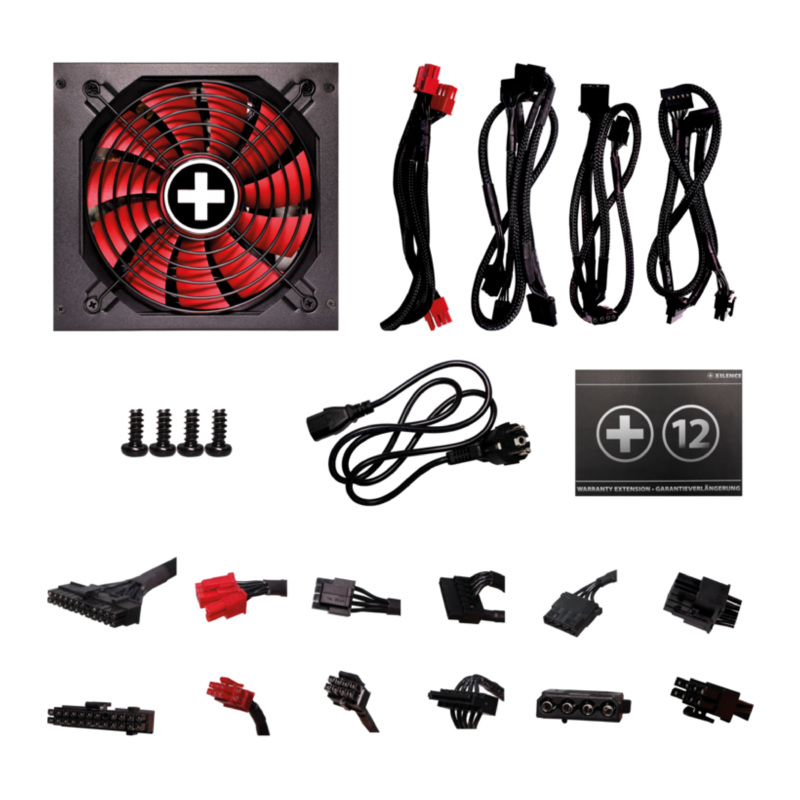

Cable management / Connectors
Modular cable management
Cable length to mainboard (mm)
600mm
Cable length to first connector (mm)
500mm
Maximum cable length (mm)
740mm
Sleeved cables
No. of cables
9
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
PCI-E 6-pin (GPU)
PCI-E 6+2-pin (GPU)
3
PATA 4-pin
3
SATA 15-pin (HDD, Drives)
9
FDD (Floppy)
Logistics data, RRP
Range
Performance X
Article number
XN074
Dimensions, package (L × W × H), (mm)
290 × 195 × 96mm
Gross weight, package (kg)
2.5
Pieces per packaging unit
6
Dimensions, shipping box (L × W × H), (mm)
600 × 300 × 215mm
Gross weight, shipping box (kg)
15.7
