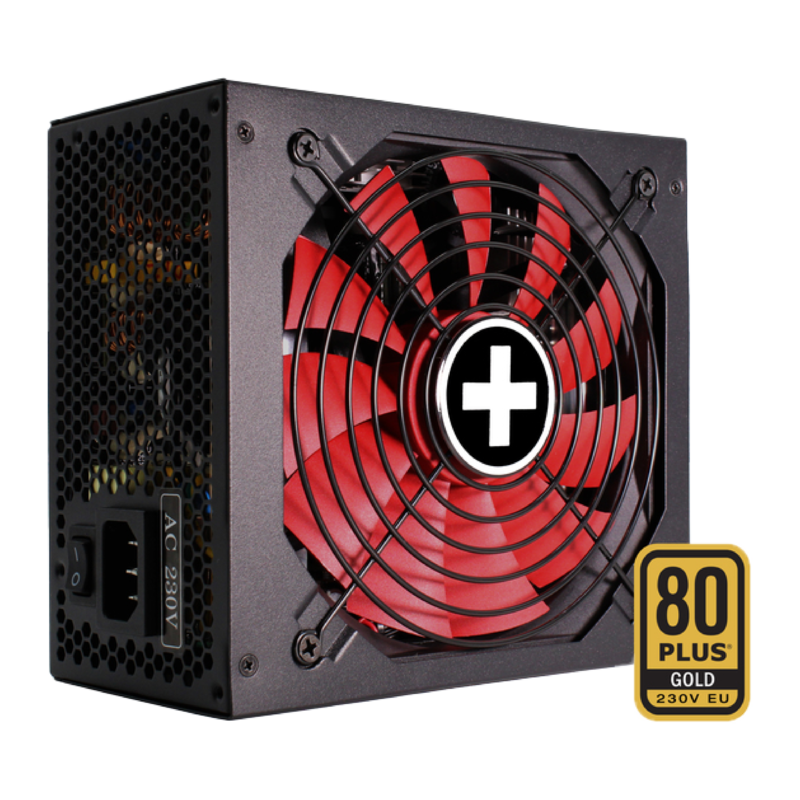

XN173 | XP750MR9.2 ATX3.1
The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel’s Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.

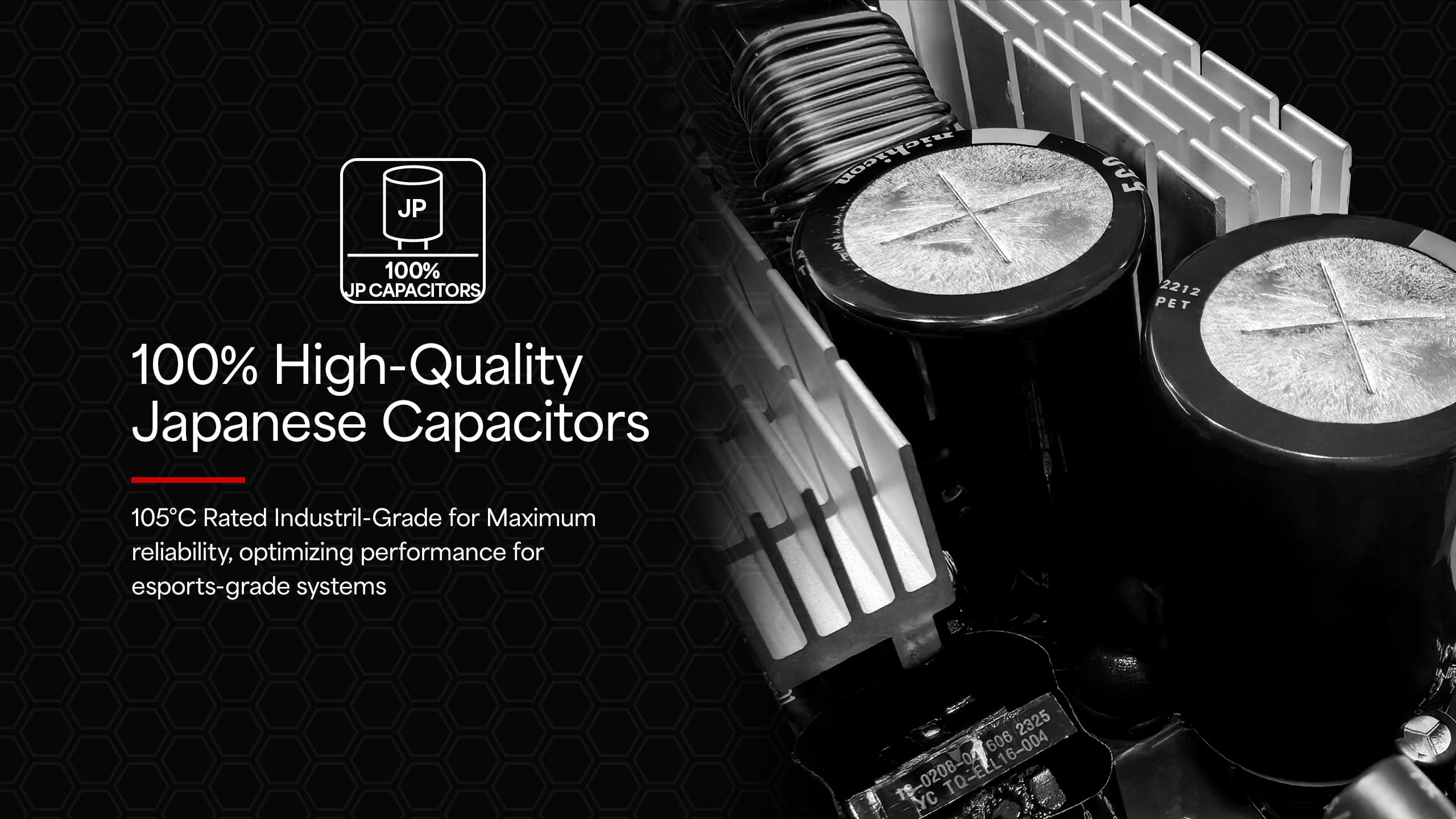

- Premium Japanese Capacitors

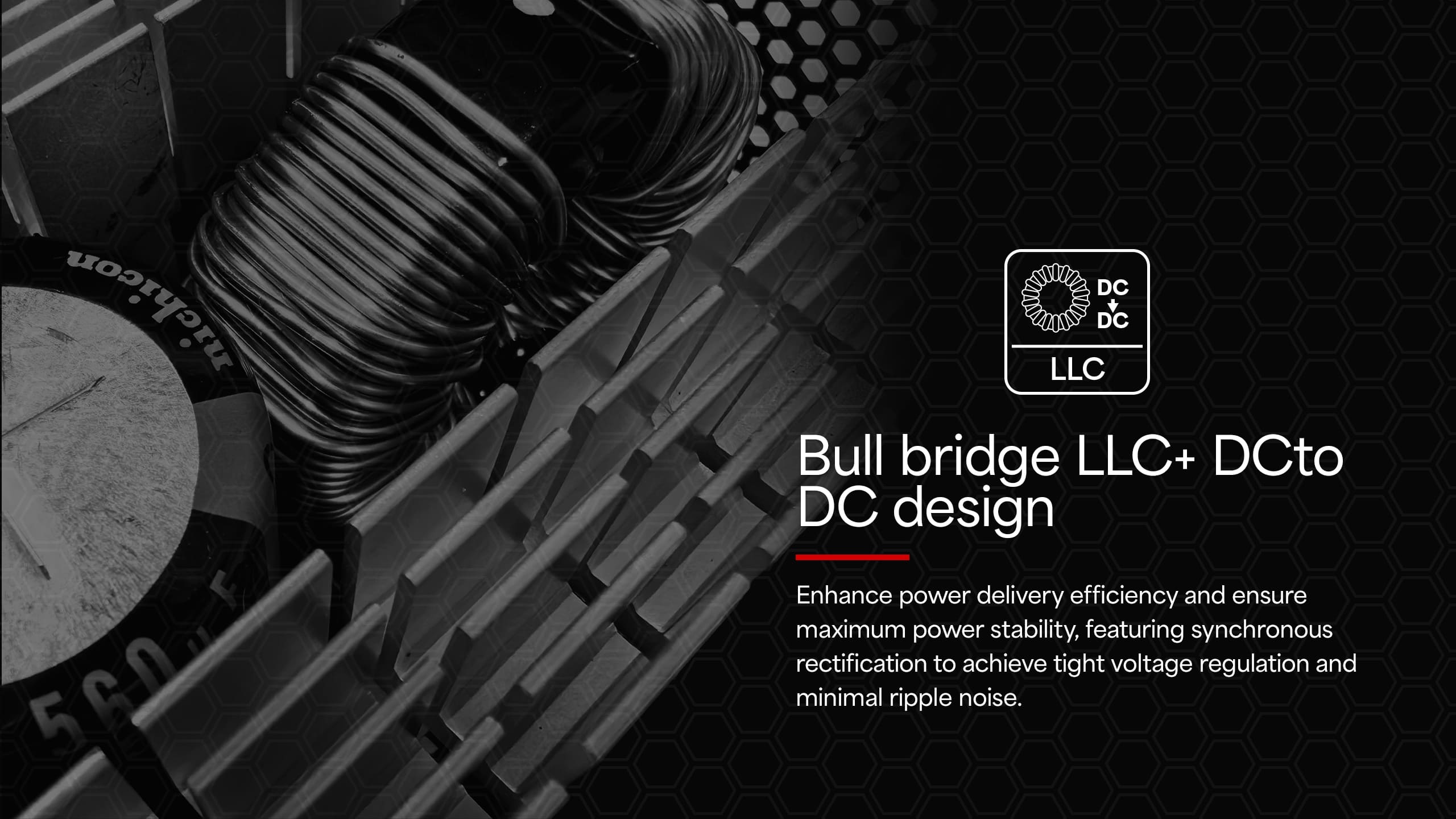

- Full Bridge LLC + DC to DC Converter Design
- Comply with ErP 2014
- 99%+12V - Output for maximum
- 105°C Rated Capacitors - delivers steady, reliable reliable power
- Nvidia RTX 30/40 Super & AMD GPU compatilbe
- Holdup time over 20ms at 100% loading
- Providing three times the total GPU power excursion
- Providing twice the total system power excursion

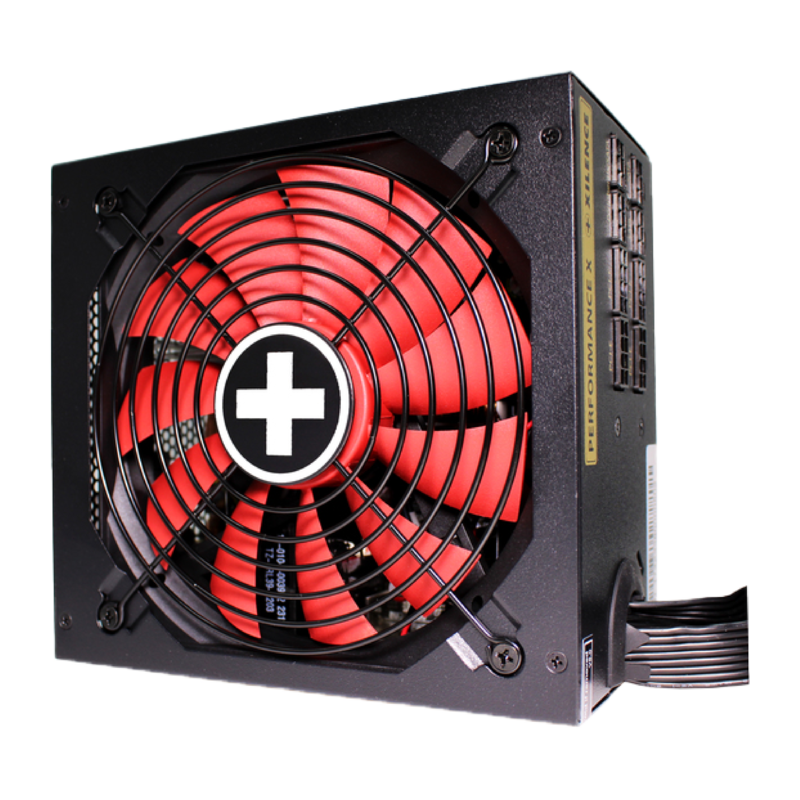

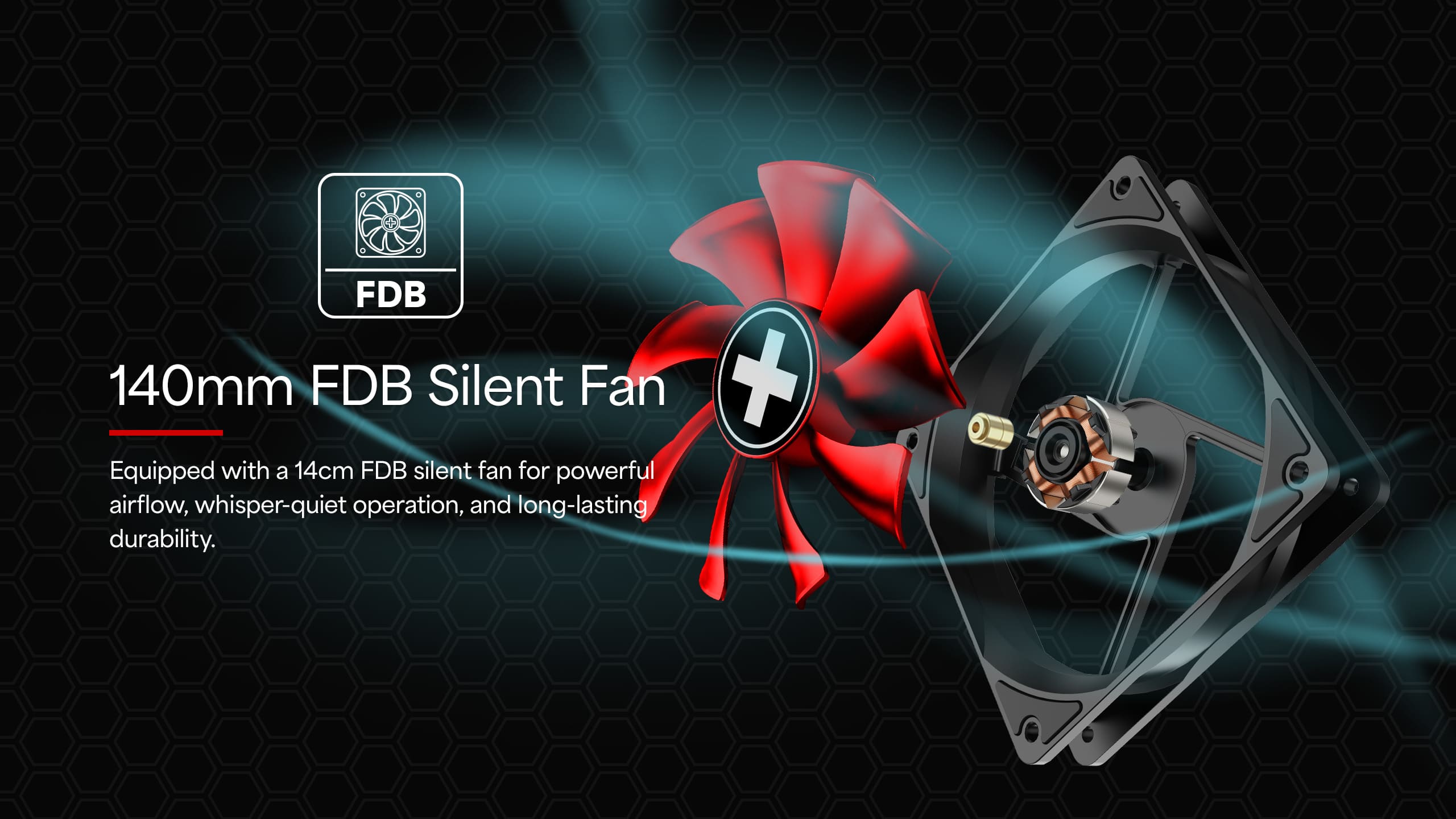

- 140 mm FDB fan inside is regulated by Smart and Silent Fan
- Control the fan speed to create a more silentand experience

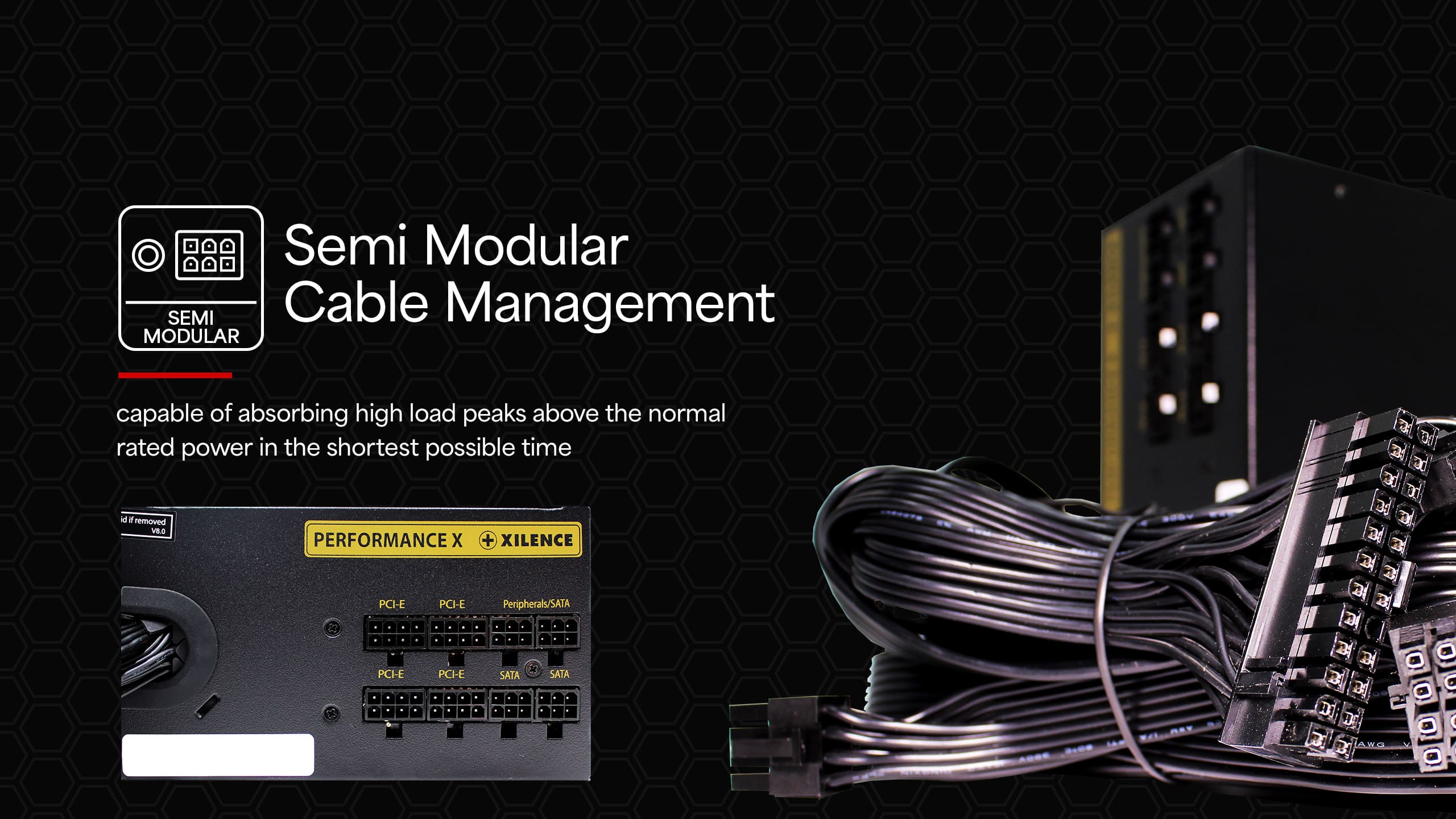

- full cable system for easy assembling
- well-rounded safeguards / OCP, OVP, UVP, NLO, SCP,,OPP, SIP

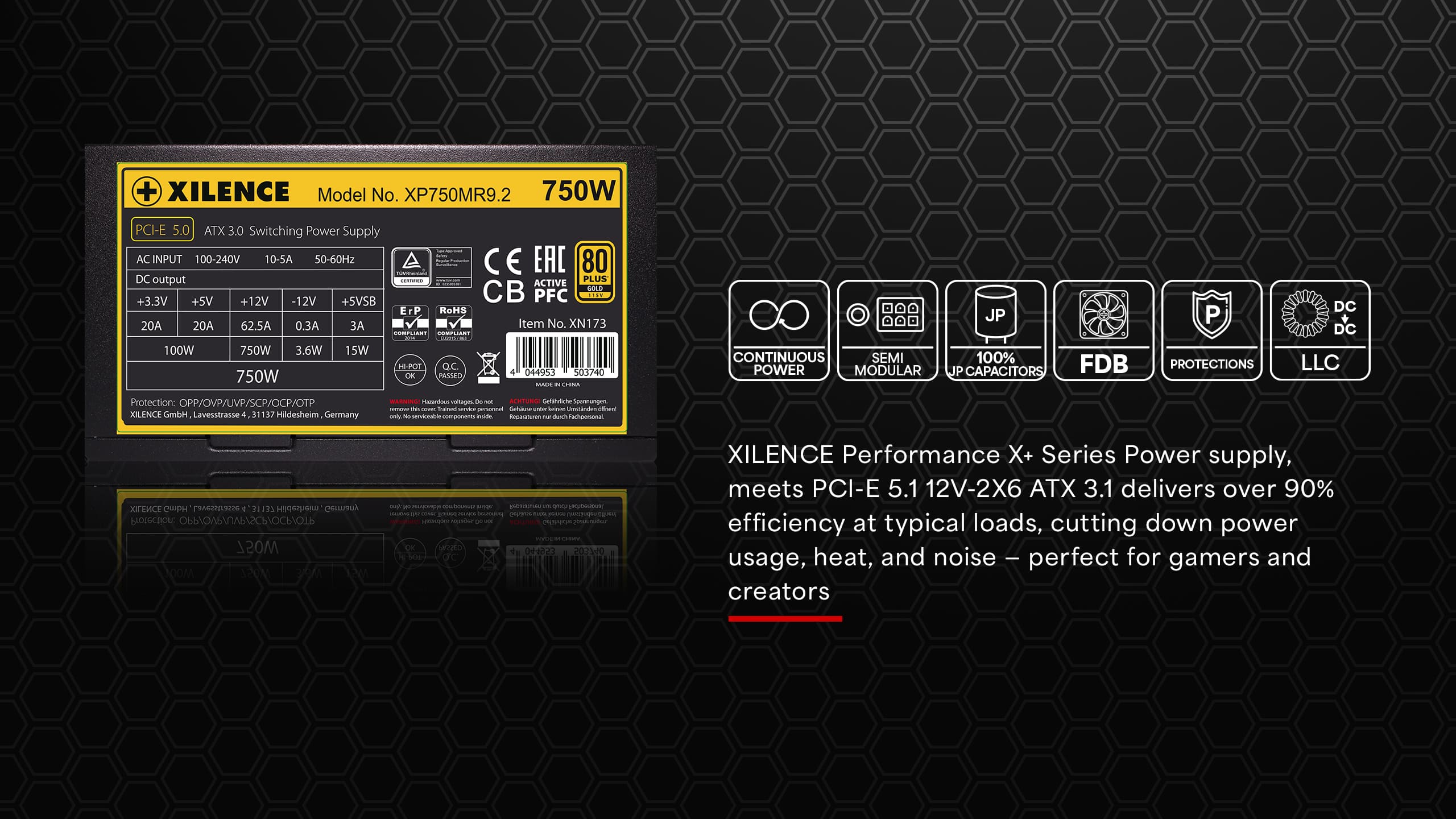

SPEC
- Model
- Performance X+ | XP750MR9.2
- Peak Power (W)
- 750W
- Form Factor ATX 12V
- Version 3.1
- Voltage (Vac)
- 100 – 240
- Frequency (Hz)
- 50 – 60
- Input current (A)
- 10-5A
- PFC
- active

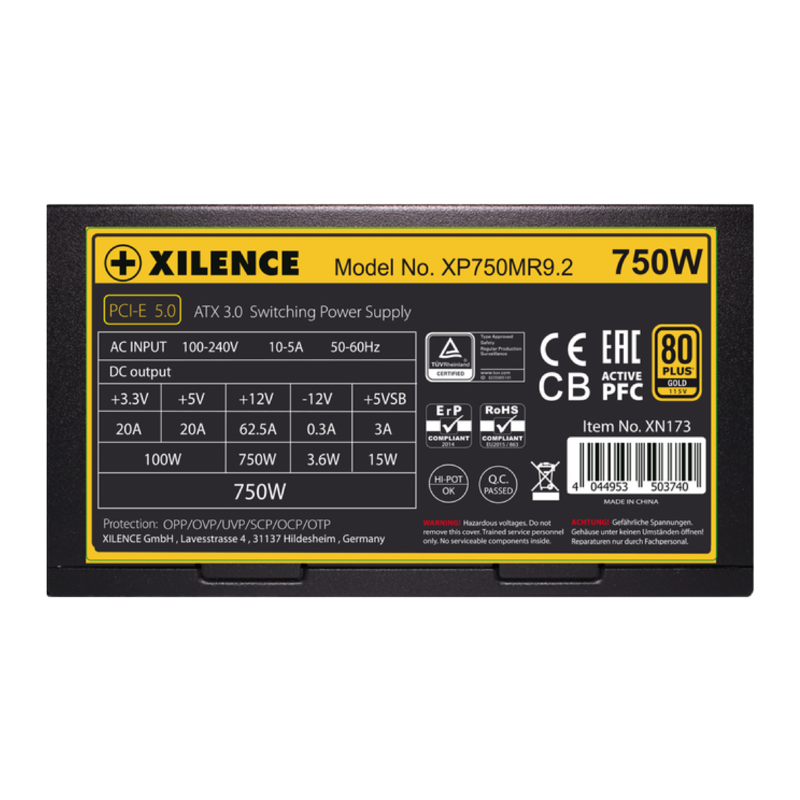

- +3.3V (A)
- 20A
- +5V (A)
- 20A
- +12V1 (A)
- 62.5A
- -12V (A)
- 0.3A
- +5Vsb (A)
- 3A
- Max. combined power 12V (W)
- 750W
- Max. combined power 3.3V + 5V (W)
- 100W
- +12V2 (A)
- –
- Bearing technology
- FDB
- Fan size (mm)
- 140mm
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
- 80PLUS certification
- Gold
- Efficiency (%) at 230V, 20% load
- 91%
- Efficiency (%) at 230V, 50% load
- 93%
- Efficiency (%) at 230V, 100% load
- 92%
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓

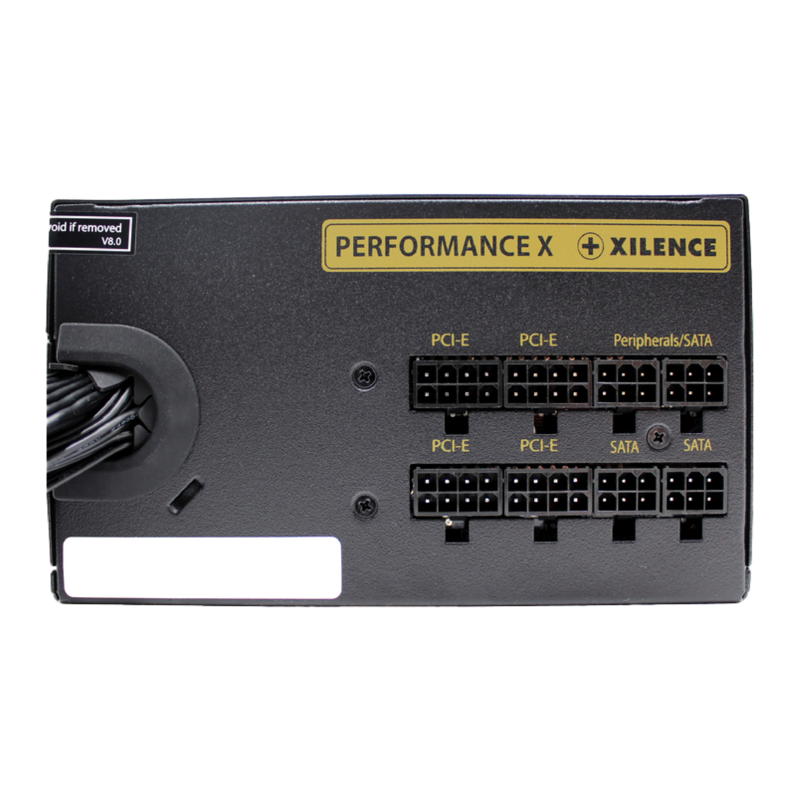

- Modular cable management
- ✓

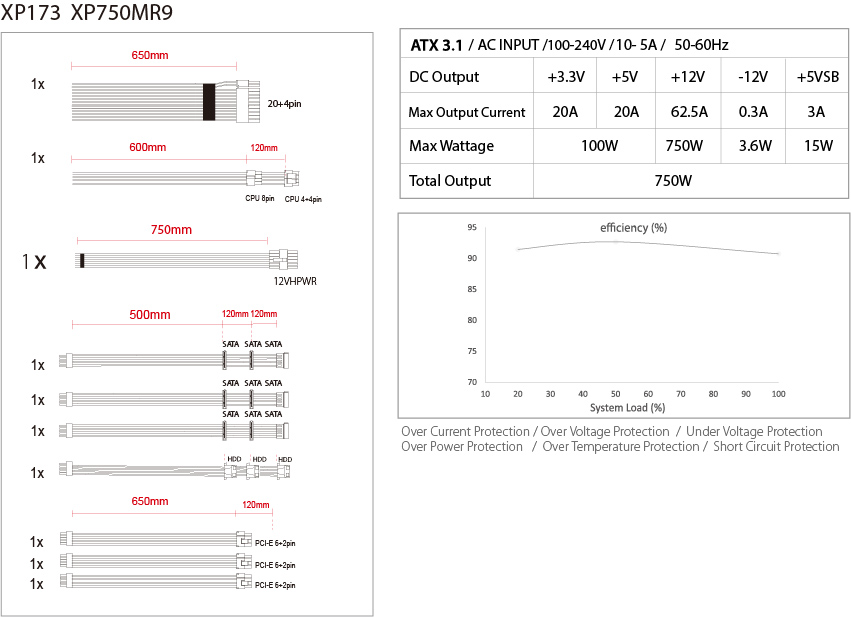

- Cable length to mainboard (mm)
- 650mm
- Cable length to first connector (mm)
- –
- Maximum cable length (mm)
- –
- Sleeved cables
- ✓

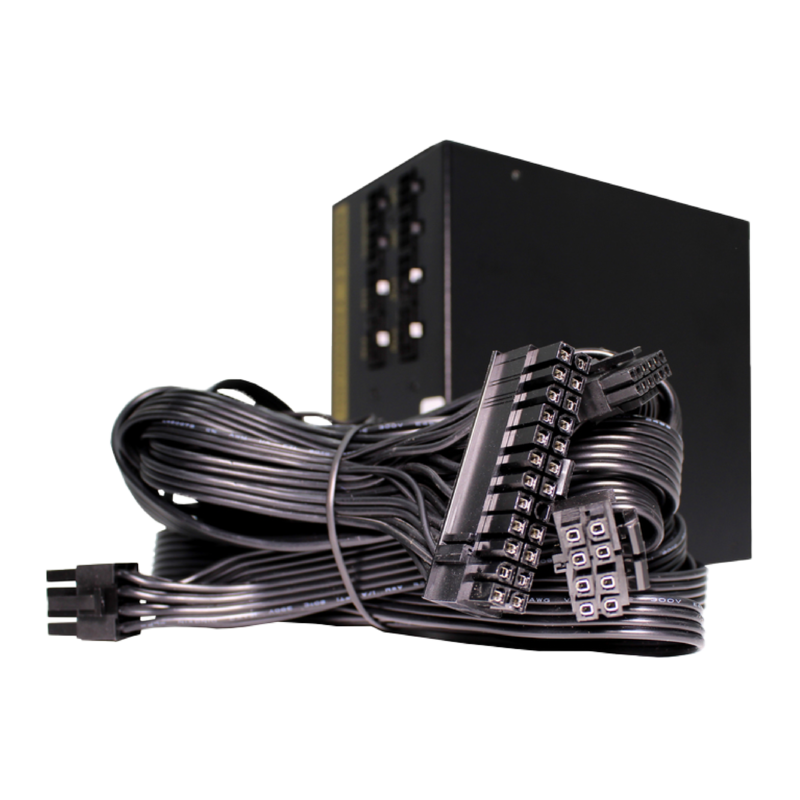

- No. of cables
- 10
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 1
- P8 (CPU)
- 1
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 3
- PATA 4-pin
- –
- SATA 15-pin (HDD, Drives)
- 6
- FDD (Floppy)
- –
- Range
- Performance X+
- Article number
- XN173
- Dimensions, package (L × W × H), (mm)
- 160 × 150 × 86mm
- Gross weight, package (kg)
- 2.7
- Pieces per packaging unit
- 6
- Dimensions, shipping box (L × W × H), (mm)
- 610 × 330 × 220mm
- Gross weight, shipping box (kg)
- 17.2
