XN176 | XP1050MR9.2 _ ATX 3.1
XILENCE Performance X ATX 3.1 power supply, designed with the ultimate performance and stability for the gaming market.
With advanced features like ATX 3.1 and high-quality JP capacitors, outstanding stability, and 80 PLUS® Gold-certified efficiencies, and the LLC + DC to DC Design ensures steady power output and the 140mm Silence FDB Fan offers quiet cooling.
The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. XILENCE Peformance X Power Supply Series ATX 3.0 is your perfect choice for building a reliable and efficient PC system for gamers and professionals.
SPEC
General Data
- Model
- Performance X+ | XP1050MR9.2
- Peak Power (W)
- 1050W
- Form Factor ATX 12V
- Version 3.1
- Voltage (Vac)
- 100 – 240
- Frequency (Hz)
- 50 – 60
- Input current (A)
- 15
- PFC
- active
Output
- +3.3V (A)
- 20A
- +5V (A)
- 20A
- +12V1 (A)
- 87.5A
- -12V (A)
- 0.3A
- +5Vsb (A)
- 3A
- Max. combined power 12V (W)
- 1050W
- Max. combined power 3.3V + 5V (W)
- 100W
- +12V2 (A)
- –
Fan / Cooling technology
- Bearing technology
- FDB
- Fan size (mm)
- 140mm
Protection
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
Eco / Efficiency
- 80PLUS certification
- Gold
- Efficiency (%) at 230V, 20% load
- 90%
- Efficiency (%) at 230V, 50% load
- 92%
- Efficiency (%) at 230V, 100% load
- 89%
Environmental directives
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓

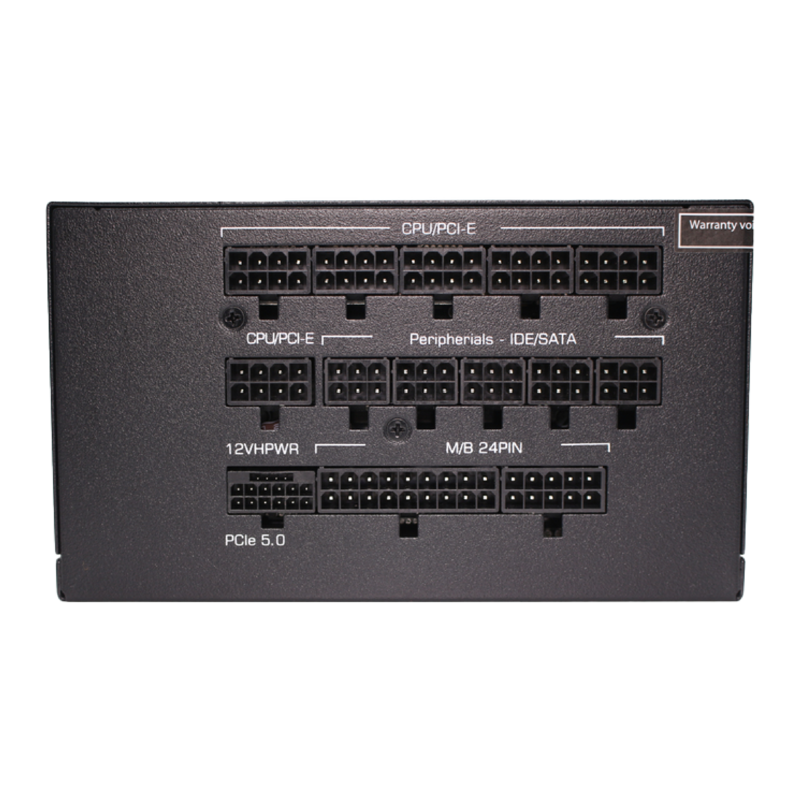

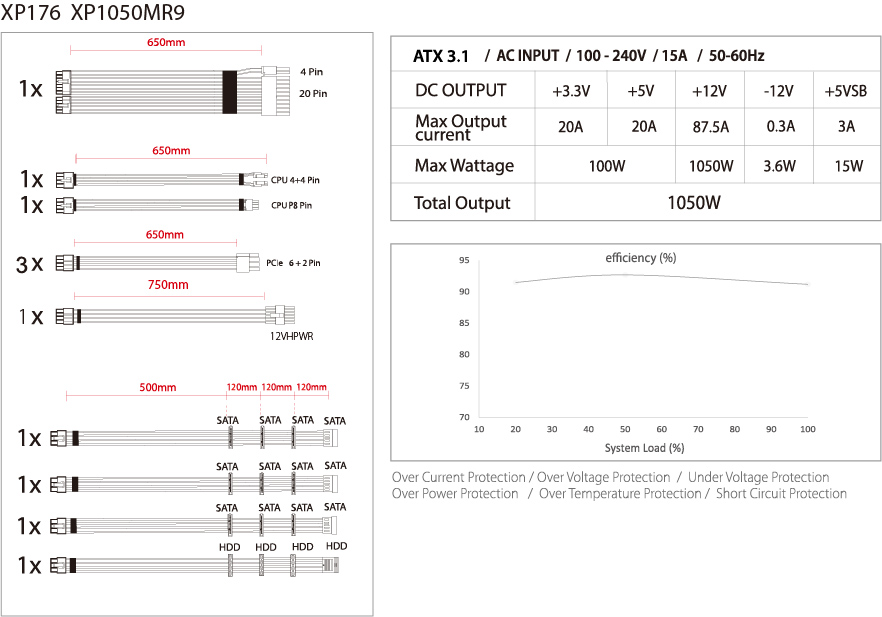

Cable management / Connectors
- Modular cable management
- ✓
- Cable length to mainboard (mm)
- 650mm
- Cable length to first connector (mm)
- 500mm
- Maximum cable length (mm)
- 950mm
- Sleeved cables
- ✓
- No. of cables
- 10
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 2
- P8 (CPU)
- –
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 4
- PATA 4-pin
- –
- SATA 15-pin (HDD, Drives)
- 12
- FDD (Floppy)
- –
Logistics data, RRP
- Range
- Performance X+
- Article number
- XN176
- Dimensions, package (L × W × H), (mm)
- 180 × 150 × 86mm
- Gross weight, package (kg)
- 3.26
- Pieces per packaging unit
- 6
- Dimensions, shipping box (L × W × H), (mm)
- 600 × 343 × 215mm
- Gross weight, shipping box (kg)
- 19.5
