XN213 | XP450R10

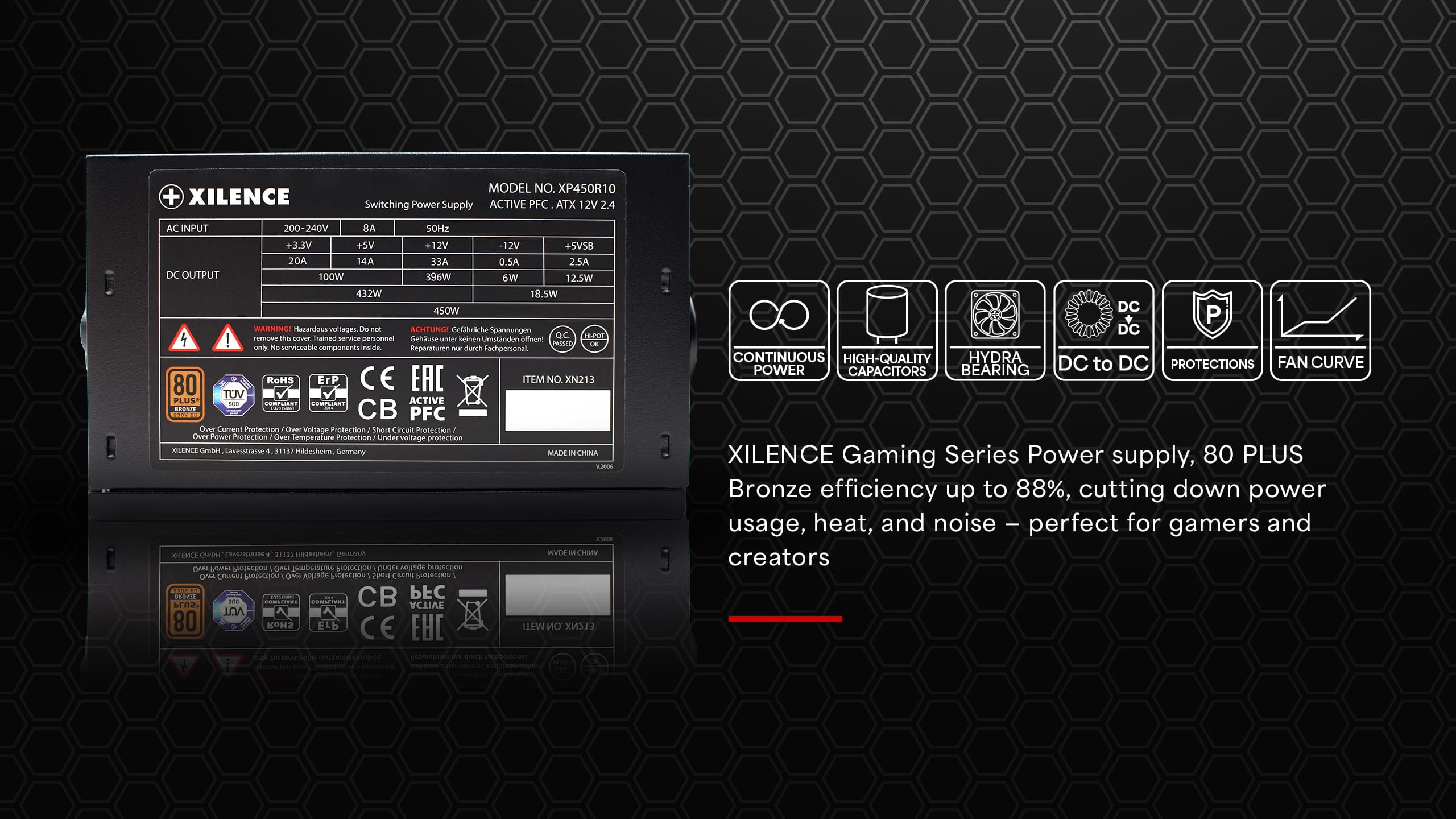

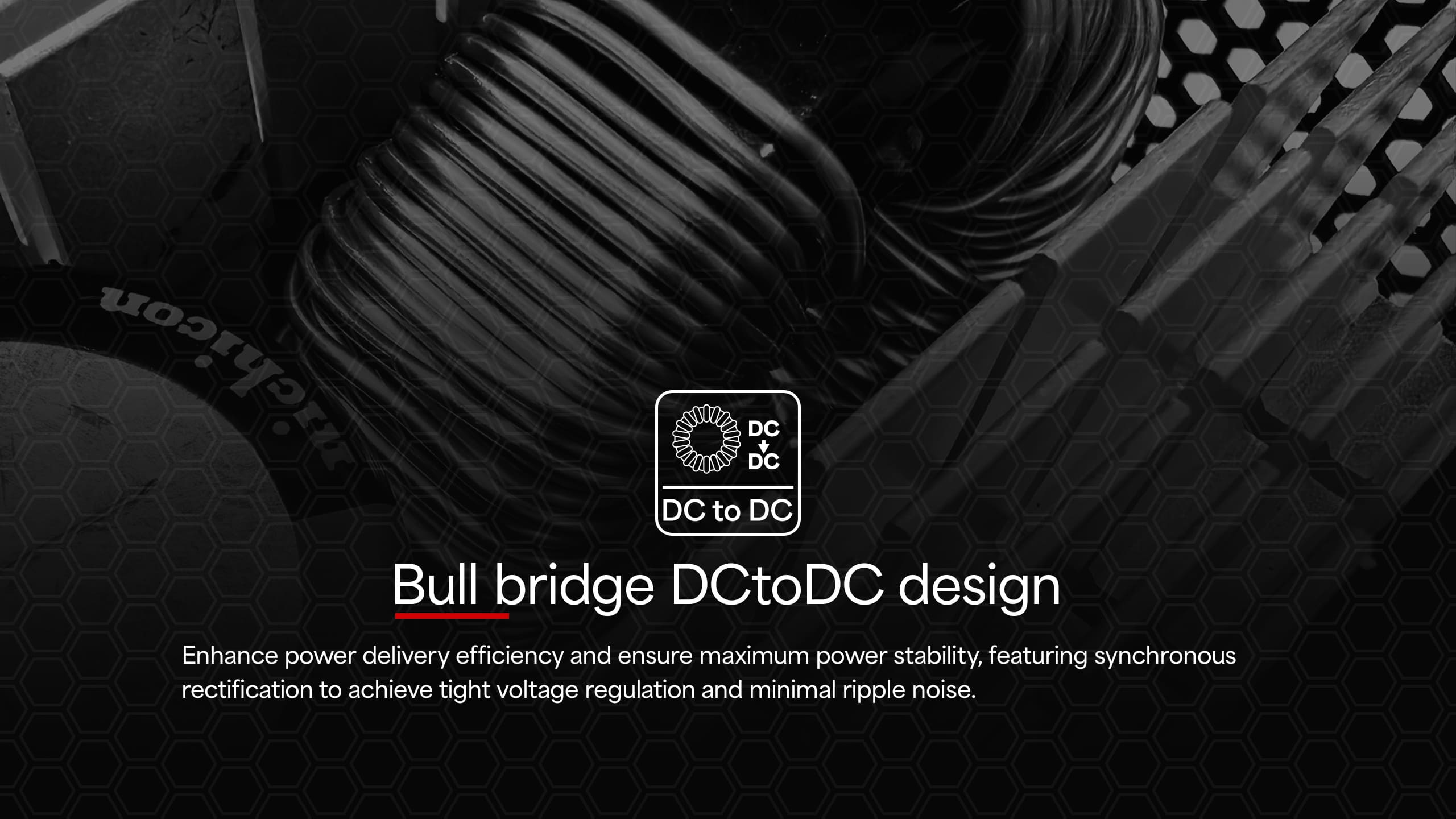

The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

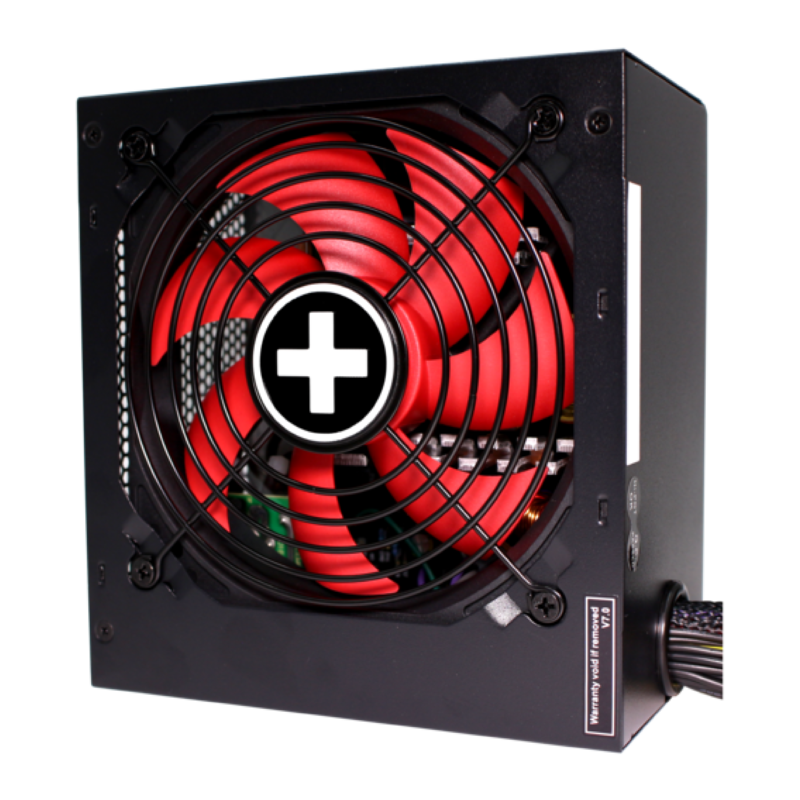

- Extremely silent cooling: large 120mm fan
- Excellent air flow design for a better heat dissipation
- Full safety design: OVP/ UVP/ SCP/ OPP
- Low stand-by consumption

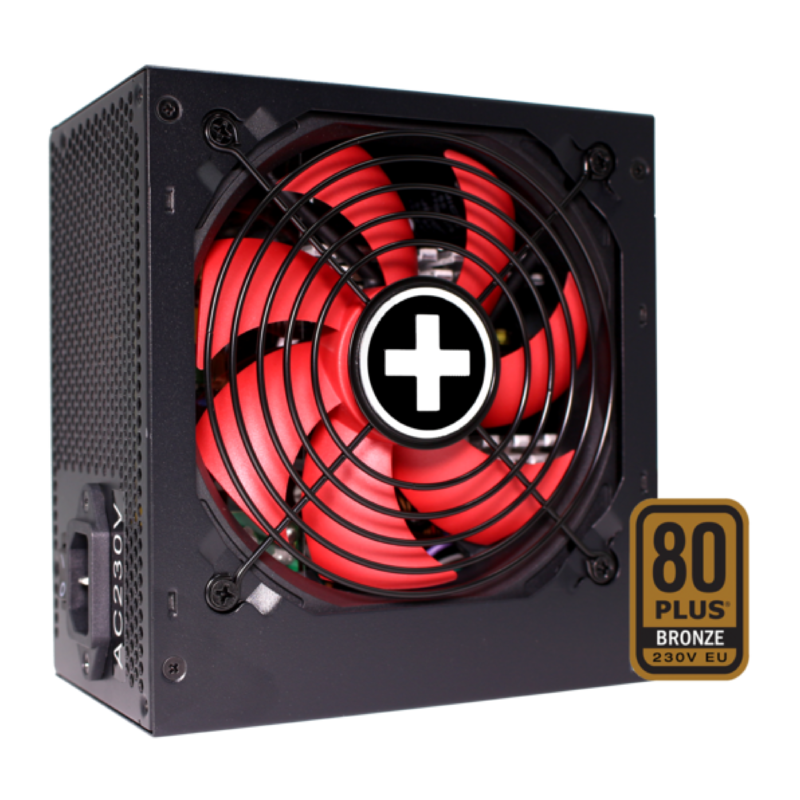

- High energy efficiency: 80+ BRONZE® certified (complies with ErP2014)
- Active-PFC
SPEC
General Data
- Model
- Gaming Series | XP450R10
- Peak Power (W)
- 450W
- Form Factor ATX 12V
- Version 2.52
- Voltage (Vac)
- 200 – 240
- Frequency (Hz)
- 50 – 60
- Input current (A)
- 10A
- PFC
- active

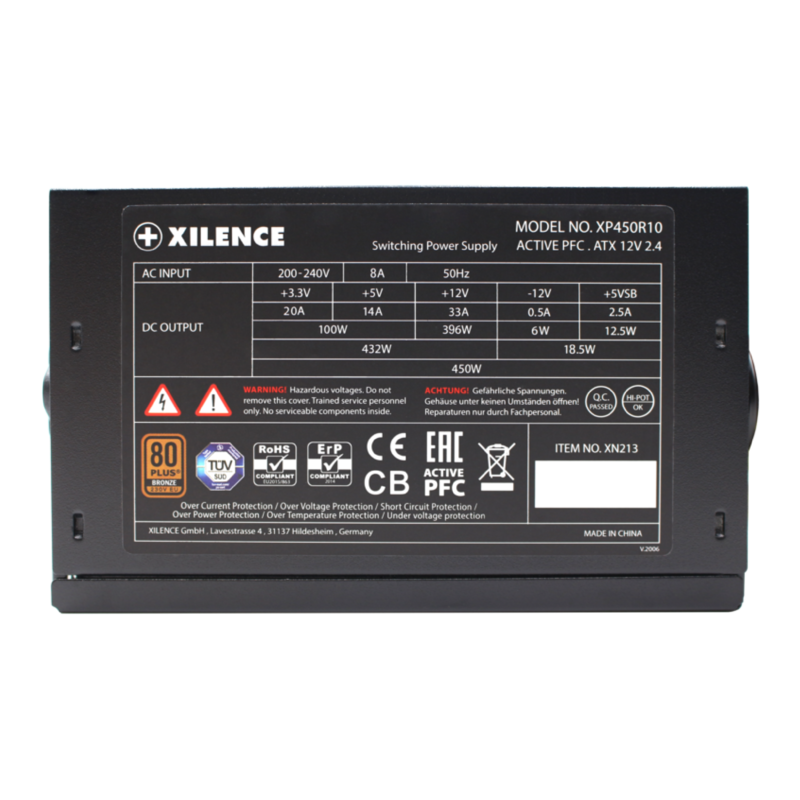

Output
- +3.3V (A)
- 18A
- +5V (A)
- 18A
- +12V1 (A)
- 37.5A
- -12V (A)
- 0.3A
- +5Vsb (A)
- 2.5A
- Max. combined power 12V (W)
- 450W
- Max. combined power 3.3V + 5V (W)
- 100W
- +12V2 (A)
- –
Fan / Cooling technology
- Bearing technology
- Hydro Bearing
- Fan size (mm)
- 120mm
Protection
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
Eco / Efficiency
- 80PLUS certification
- Bronze
- Efficiency (%) at 230V, 20% load
- 85%
- Efficiency (%) at 230V, 50% load
- 88%
- Efficiency (%) at 230V, 100% load
- 85%
Environmental directives
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓

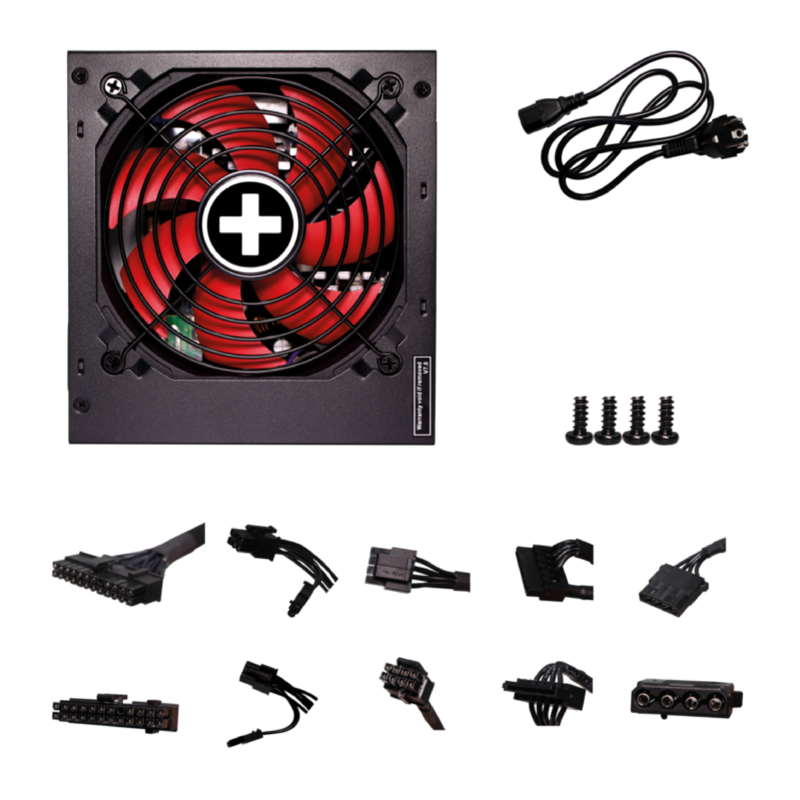

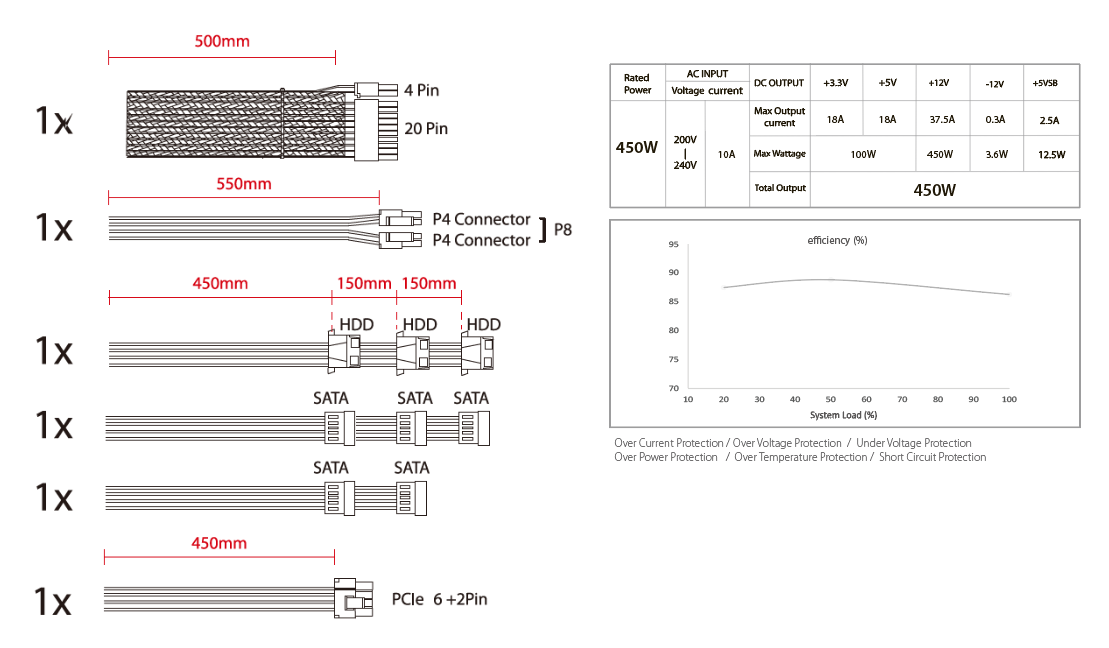

Cable management / Connectors
- Modular cable management
- ✓
- Cable length to mainboard (mm)
- 600mm
- Cable length to first connector (mm)
- –
- Maximum cable length (mm)
- 900mm
- Sleeved cables
- ✓
- No. of cables
- 6
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 1
- P8 (CPU)
- –
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 1
- PATA 4-pin
- 3
- SATA 15-pin (HDD, Drives)
- 5
- FDD (Floppy)
- –
Logistics data, RRP
- Range
- Gaming Series
- Article number
- XN213
- Dimensions, package (L × W × H), (mm)
- 140 × 150 × 86mm
- Gross weight, package (kg)
- 1.8
- Pieces per packaging unit
- 8
- Dimensions, shipping box (L × W × H), (mm)
- 535 × 390 × 230mm
- Gross weight, shipping box (kg)
- 15.5
