XN330 | XP750R12

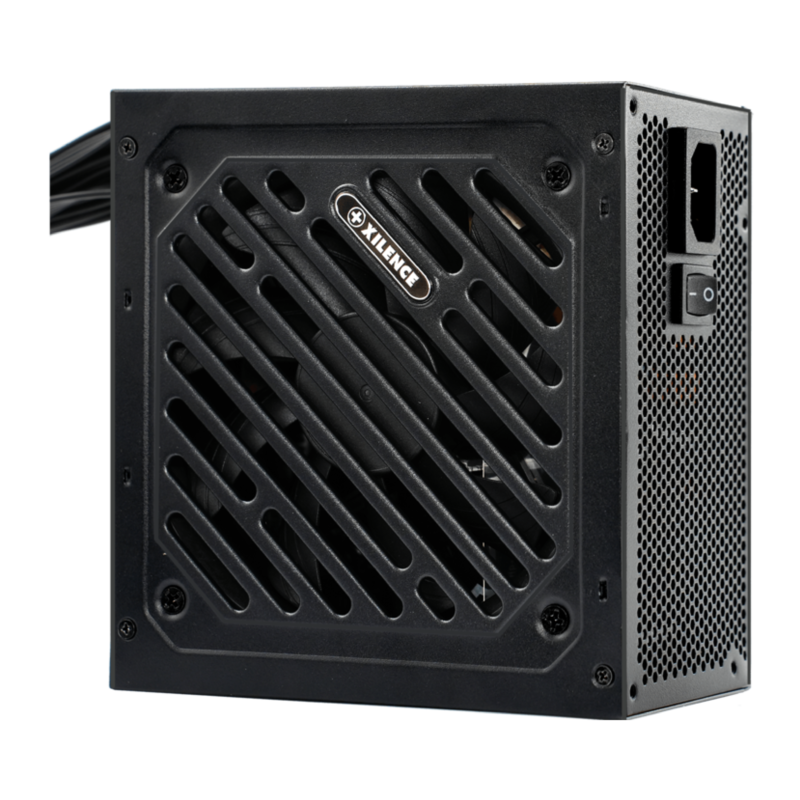

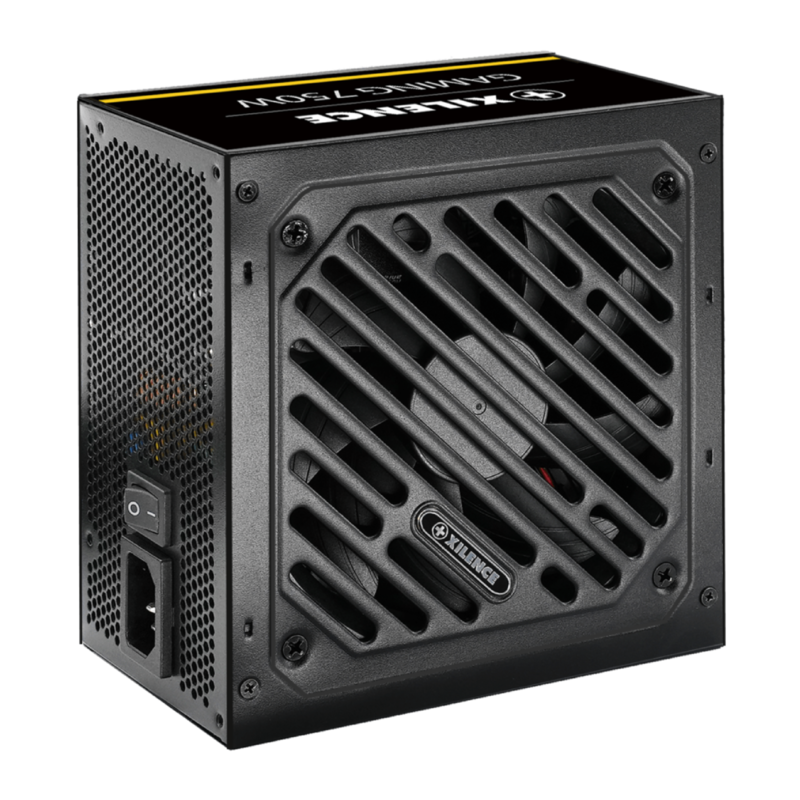

The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.
- Whisper-quiet cooling: Large 120mm fan*
- Excellent airflow design for improved heat dissipation
- With the following safety equipment:
- OVP (overvoltage protection)
- UVP (Undervoltage Protection)
- SCP (short circuit protection)
- OLP (overload protection)
- OTP (over temperature protection)
- OCP (overcurrent protection)
- Low standby power consumption
- High energy
SPEC

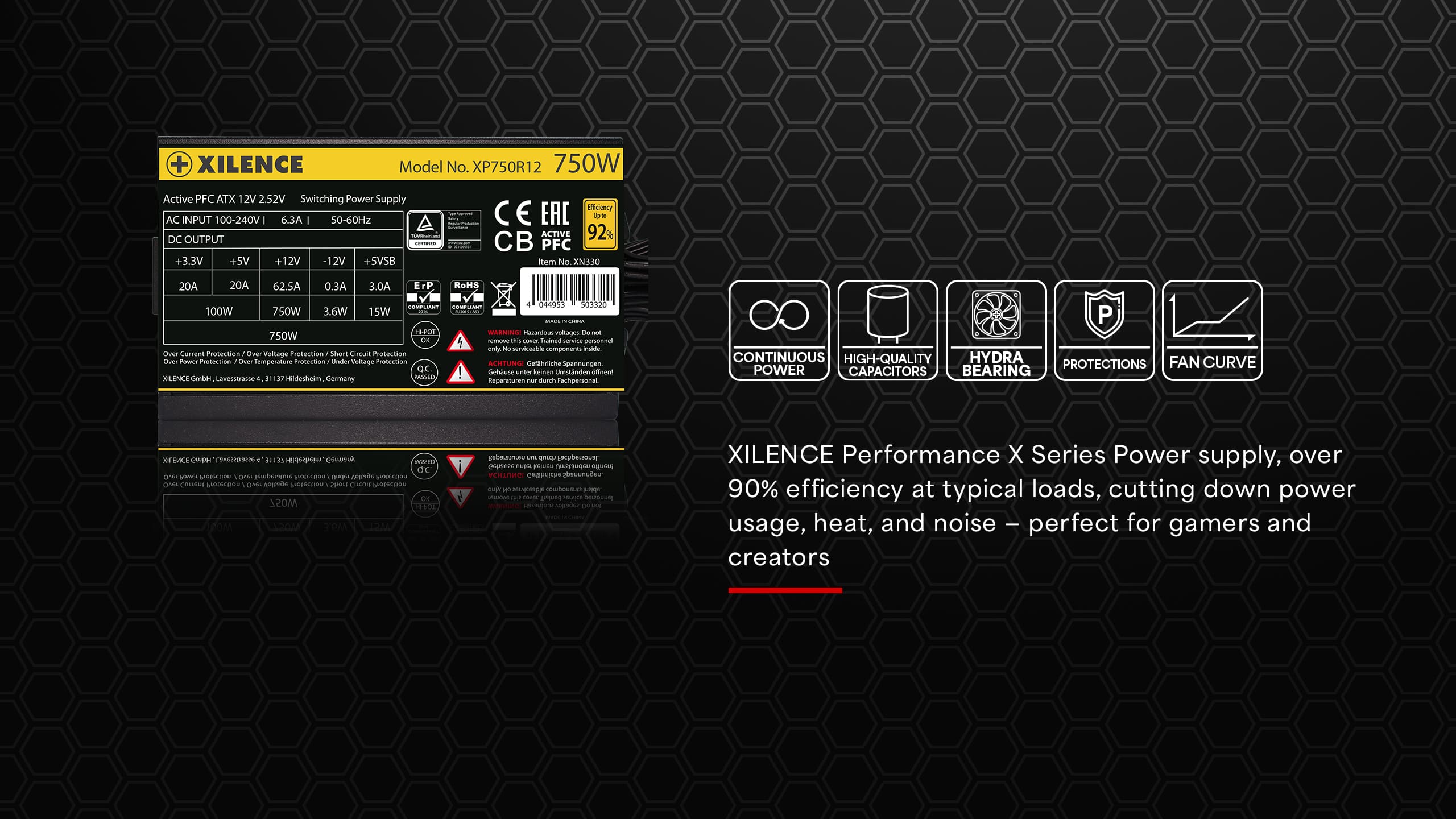

General Data
- Model
- Gaming Gold Series | XP750R12
- Peak Power (W)
- 750W
- Form Factor ATX 12V
- Version 2.52
- Voltage (Vac)
- 100 – 240
- Frequency (Hz)
- 50 – 60
- Input current (A)
- 10A
- PFC
- active
Output
- +3.3V (A)
- 20A
- +5V (A)
- 20A
- +12V1 (A)
- 62.5A
- -12V (A)
- 0.3A
- +5Vsb (A)
- 3A
- Max. combined power 12V (W)
- 750W
- Max. combined power 3.3V + 5V (W)
- 100W
- +12V2 (A)
- –

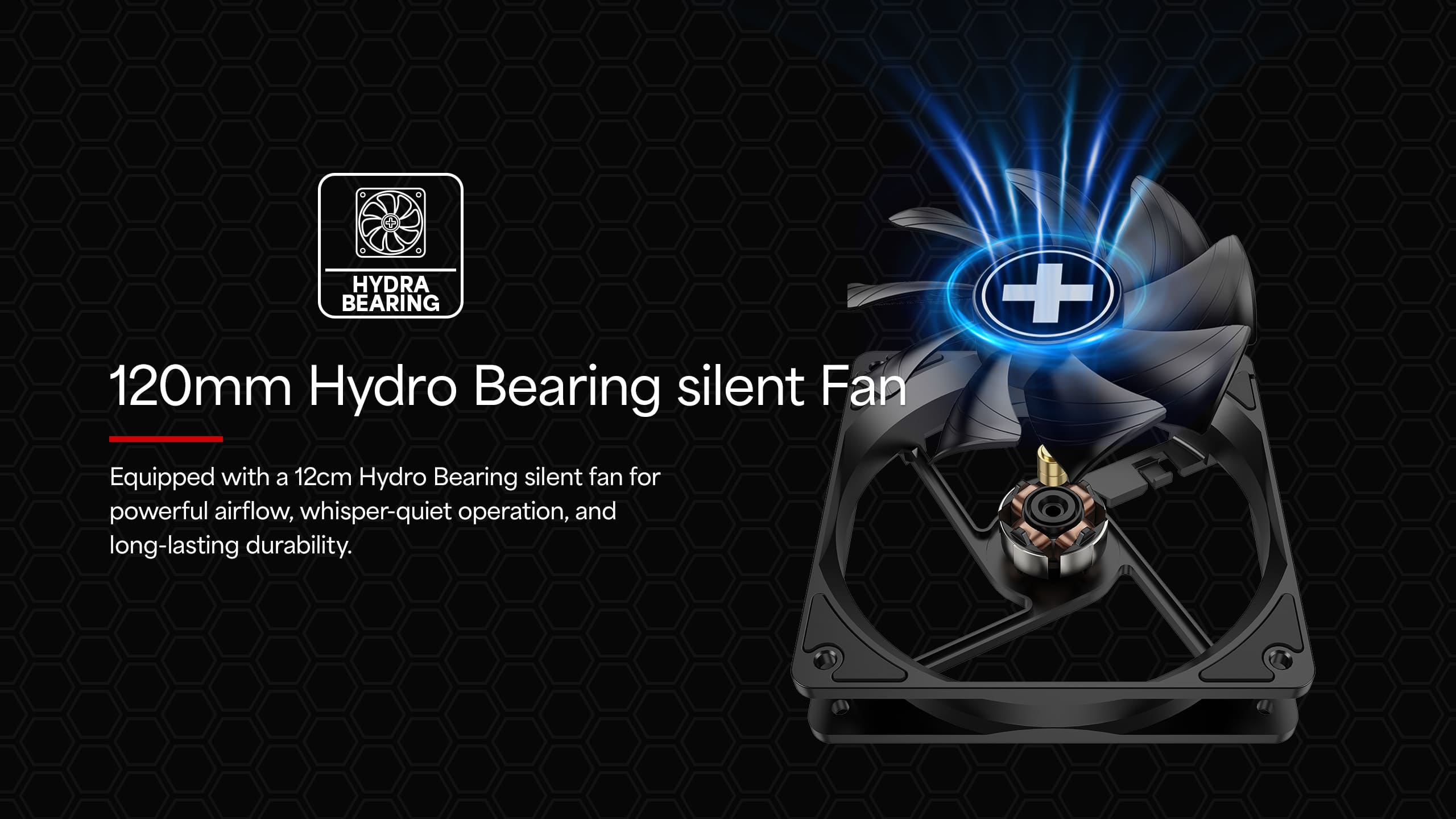

Fan / Cooling technology
- Bearing technology
- Hydro Bearing
- Fan size (mm)
- 120mm
Protection
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
Eco / Efficiency
- 80PLUS certification
- Gold
- Efficiency (%) at 230V, 20% load
- 90%
- Efficiency (%) at 230V, 50% load
- 93%
- Efficiency (%) at 230V, 100% load
- 92%
Environmental directives
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓
Cable management / Connectors
- Modular cable management
- ✓
- Cable length to mainboard (mm)
- 550mm
- Cable length to first connector (mm)
- –
- Maximum cable length (mm)
- –
- Sleeved cables
- ✓
- No. of cables
- 7
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 1
- P8 (CPU)
- 1
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 3
- PATA 4-pin
- –
- SATA 15-pin (HDD, Drives)
- 6
- FDD (Floppy)
- –
Logistics data, RRP
- Range
- Gaming Series
- Article number
- XN330
- Dimensions, package (L × W × H), (mm)
- 140 × 150 × 86mm
- Gross weight, package (kg)
- 2.2
- Pieces per packaging unit
- 5
- Dimensions, shipping box (L × W × H), (mm)
- 510 × 263 × 220mm
- Gross weight, shipping box (kg)
- 11.5
