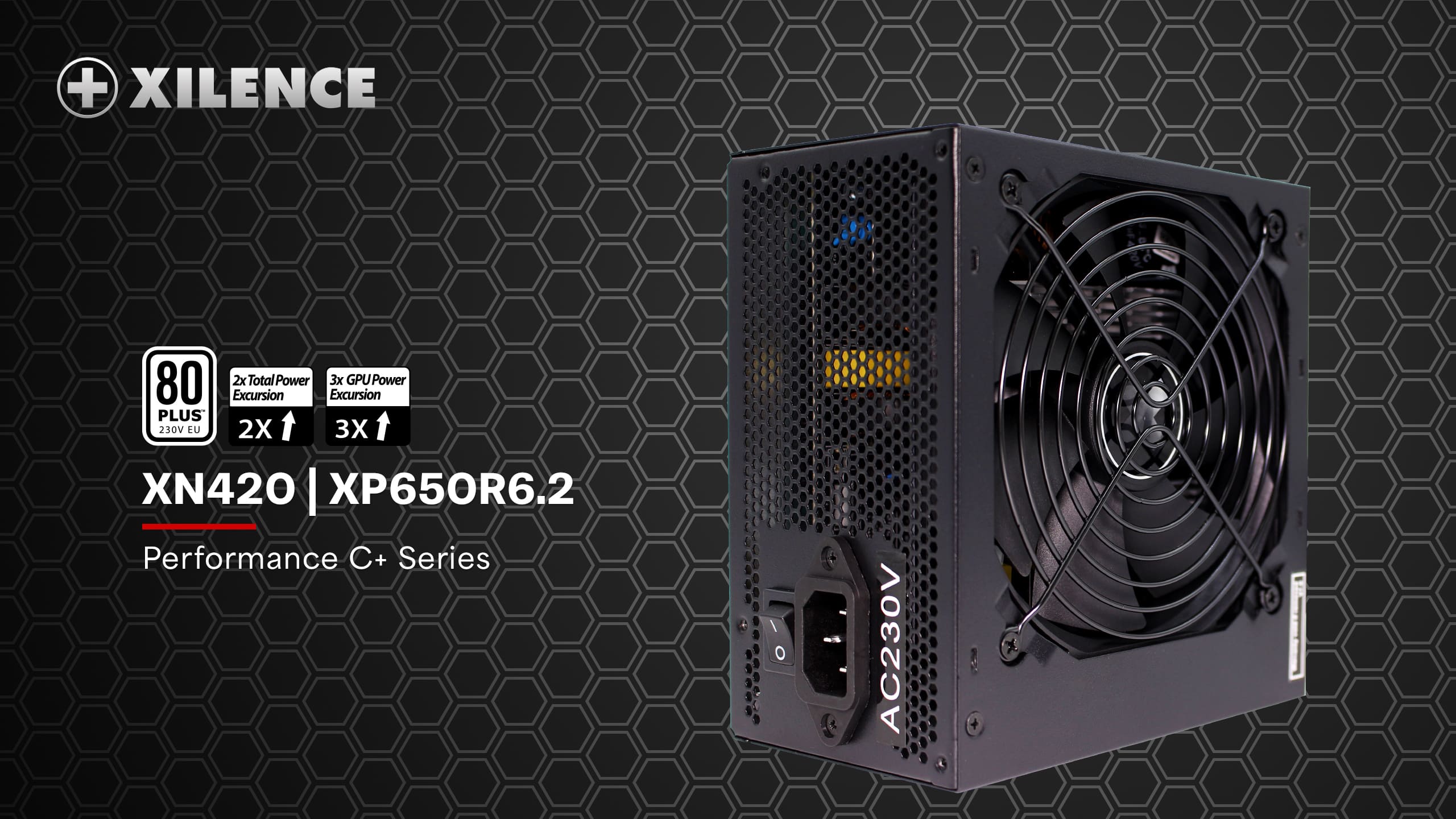

XN420 | XP650R6.2

The C+Series is a power supply series with the ATX standard 2.52 and black ribbon cables. The power supplies are designed for office and home computers, but can also be installed in PCs that are occasionally used for gaming.
The black design of the power supplies and the elegant flat ribbon cables blend visually into any PC build. The power supplies deliver stable voltages with high efficiency (80+ Standard) to meet the ErP2014 standard. The integrated black 120mm fan provides silent cooling. Four integrated safety circuits ensure safe operation at all times.

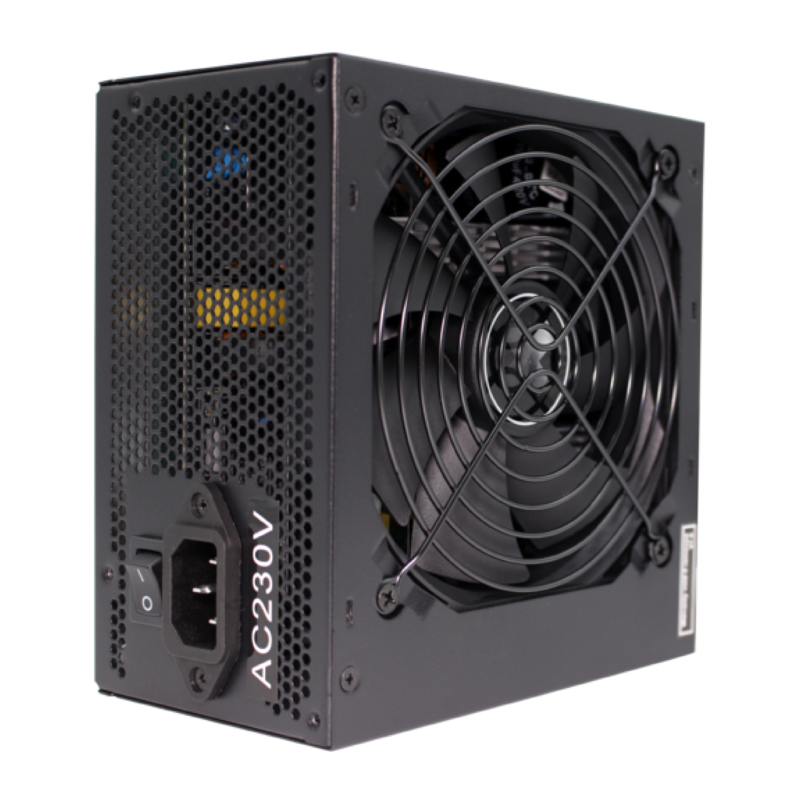

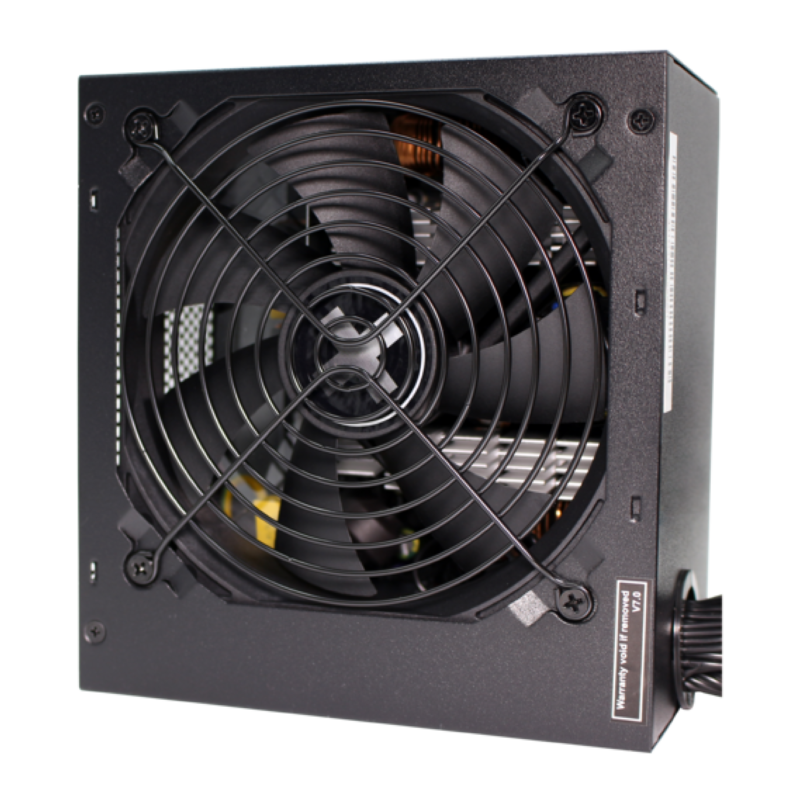

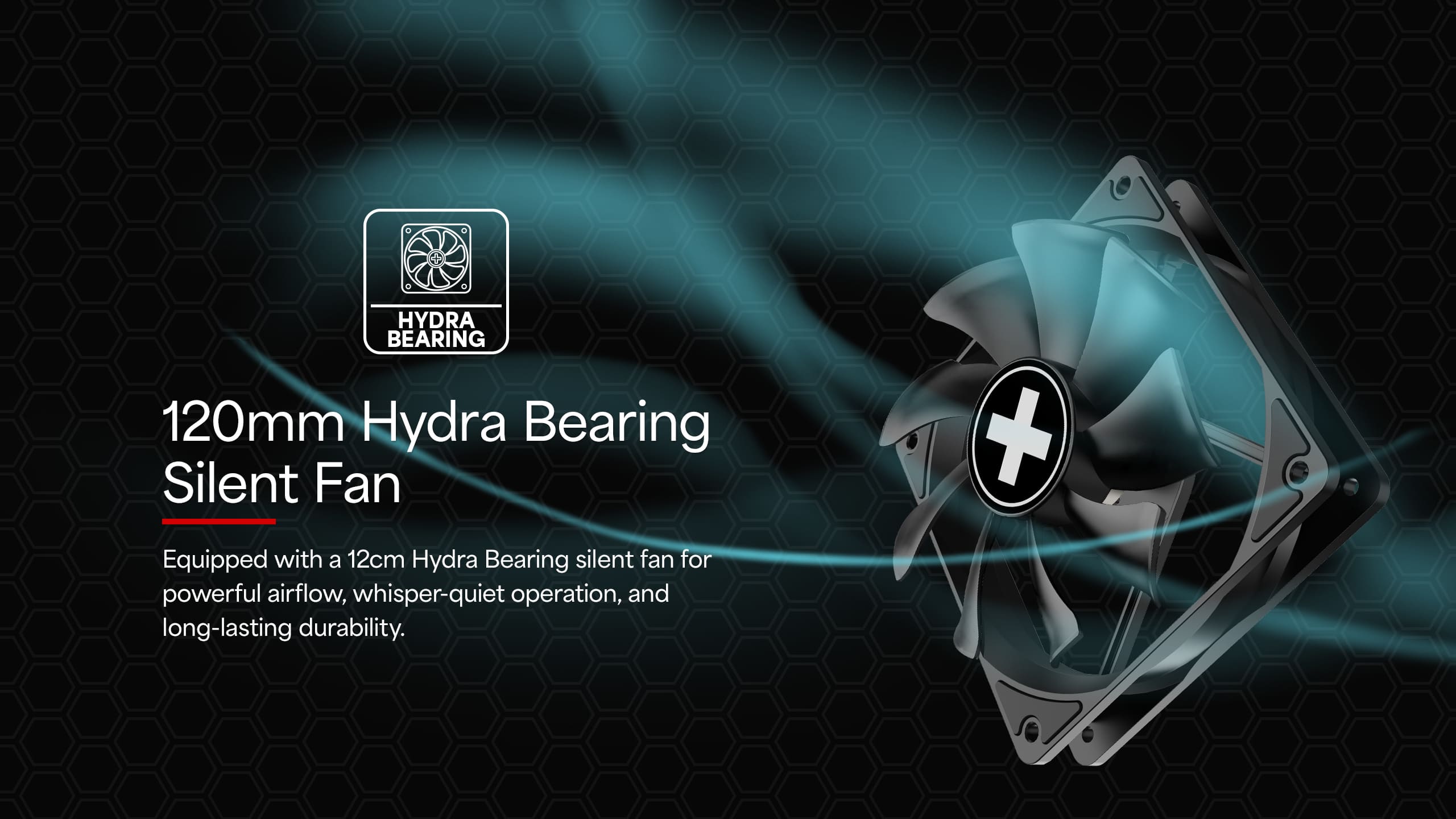

  • Whisper quiet cooling: Large black 120mm fan
  • Excellent airflow design for improved heat dissipation
  • The following safety equipment with:
  • OVP (Over Voltage Protection)
  • UVP (Under Voltage Protection)
  • SCP (Short Circuit Protection)
  • OLP (Over Load Protection)
  • Low standby power consumption

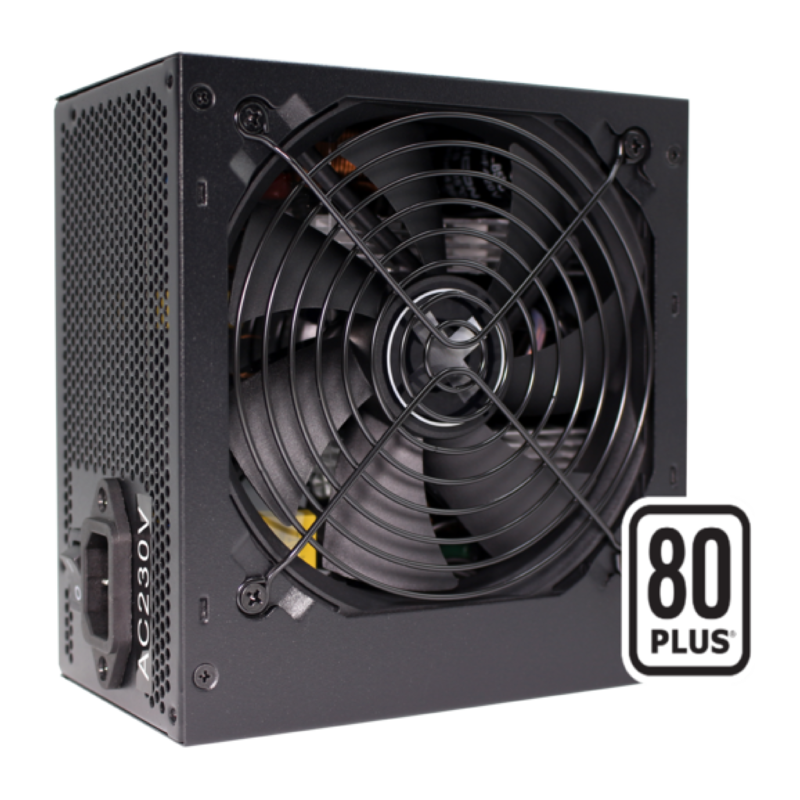

  • 80+ standard certification
  • Complies with ErP2014 standard
  • elegant black ribbon cable
  • Active PFC

SPEC



General Data
Model
Performance C+ | XP650R6.2
Peak Power (W)
650W
Form Factor ATX 12V
Version 2.52
Voltage (Vac)
200 – 240
Frequency (Hz)
50 – 60
Input current (A)
10A
PFC
active
Output
+3.3V (A)
18A
+5V (A)
18A
+12V1 (A)
54.1A
-12V (A)
0.3A
+5Vsb (A)
2.5A
Max. combined power 12V (W)
650W
Max. combined power 3.3V + 5V (W)
100W
+12V2 (A)
Fan / Cooling technology
Bearing technology
Hydro Bearing
Fan size (mm)
120mm
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Eco / Efficiency
80PLUS certification
Standard
Efficiency (%) at 230V, 20% load
86.5%
Efficiency (%) at 230V, 50% load
87.5%
Efficiency (%) at 230V, 100% load
84%
Environmental directives
ErP
WEEE
RoHS

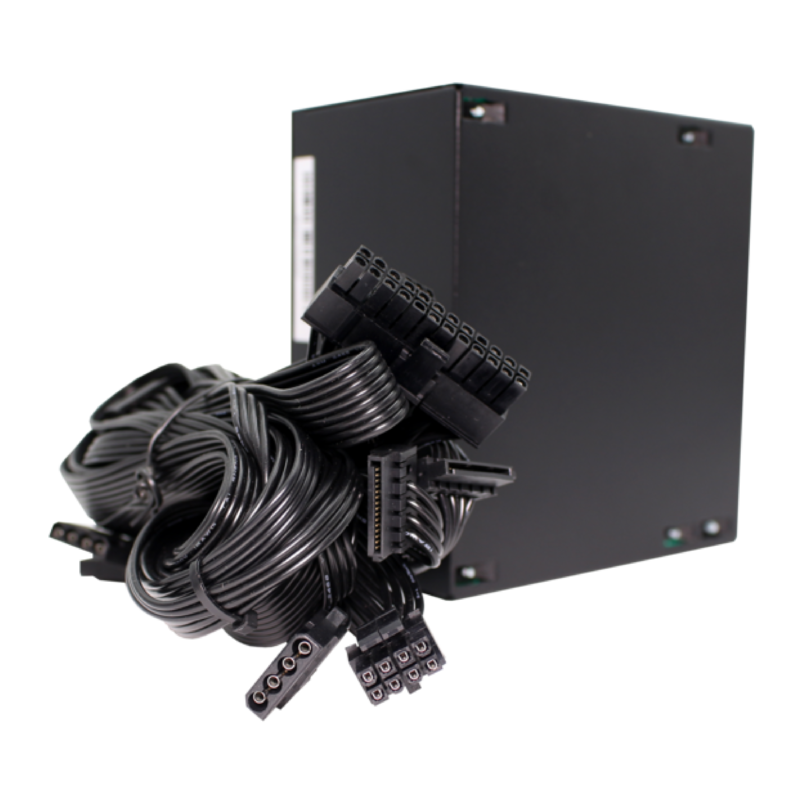

Cable management / Connectors
Modular cable management
Cable length to mainboard (mm)
500mm
Cable length to first connector (mm)
Maximum cable length (mm)
Sleeved cables
No. of cables
5
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
PCI-E 6-pin (GPU)
PCI-E 6+2-pin (GPU)
2
PATA 4-pin
3
SATA 15-pin (HDD, Drives)
5
FDD (Floppy)
Logistics data, RRP
Range
C+ Series
Article number
XN420
Dimensions, package (L × W × H), (mm)
140 × 150 × 86mm
Gross weight, package (kg)
1.7
Pieces per packaging unit
8
Dimensions, shipping box (L × W × H), (mm)
535 × 390 × 230mm
Gross weight, shipping box (kg)
15
